Prolon VC2000 Series - Measuring Signal Quality with NFC

1. Theincomingsignalqualityfroma"ROOT"mustbemeasuredata"LEAF"device,usingtheProlonFocusapponamobile
device with NFC capabilities.
2. A measurement only becomes possible on a “LEAF” device, once it has established a connection with its "ROOT" module.
3. Measuringa"ROOT"moduleusingNFCwillnotyieldsignalquality,butrathernumberofassociated"LEAF"modulesitis
able to communicate with.
4. Tousethisfeature,theNFCfunctionmustrstbeenabledonthemobiledevice.
5. The NFC reading may take a few seconds to display.
NOTE: We recommend that you remove any casing from your mobile device if you are experiencing trouble connecting.

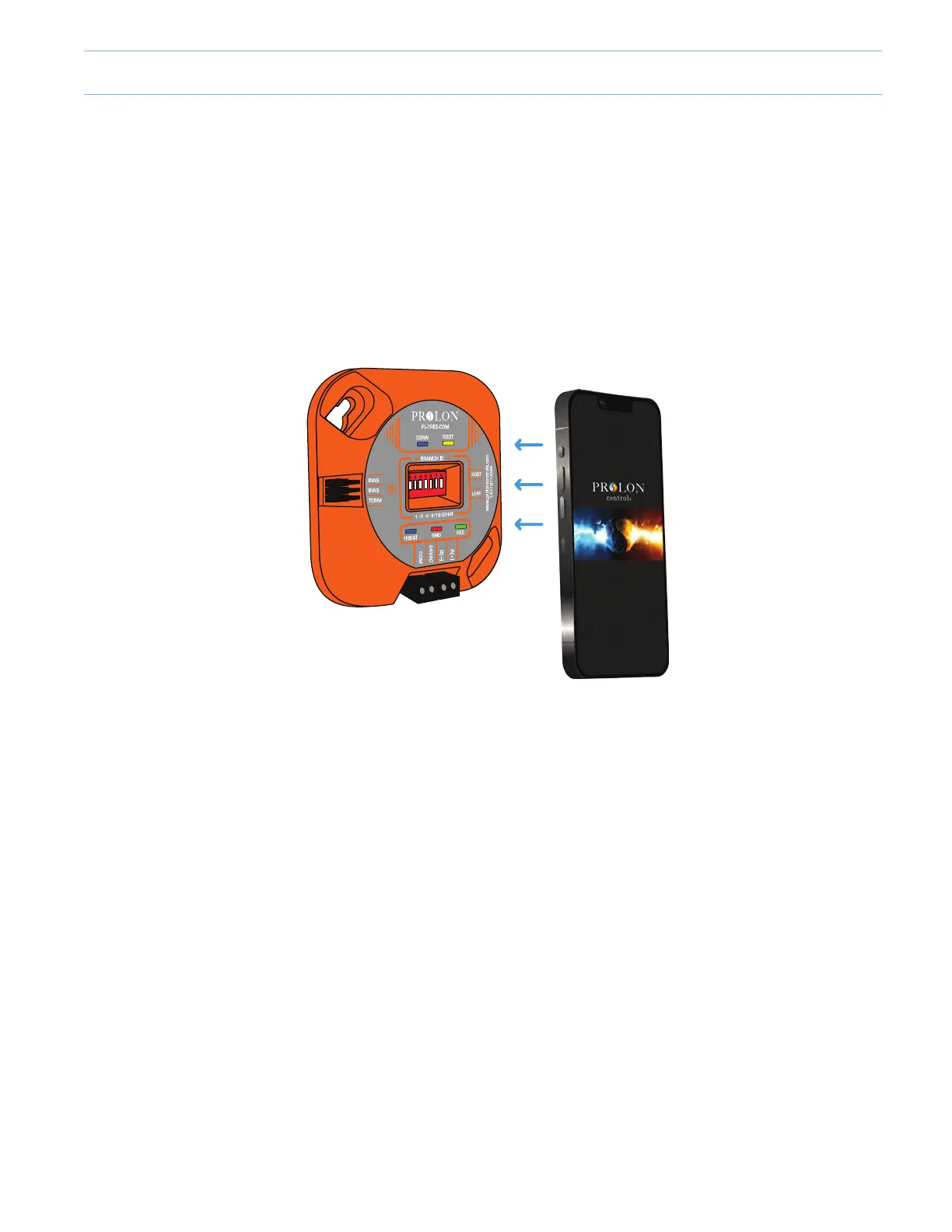

Figure 14
Measuring Signal Quality with NFC
6-9
