PL-NC2000 connected to a group of Master (PL-M2000 or PL-C1050)
The communication network between any Master Controller and the PL-NC2000 can be connected wirelessly using the PL-
TREE-COM. (Figure 13)
1. The PL-TREE-COM connected to the PL-NC2000 via the RS-485 OUT port must be set as the "ROOT".
2. The PL-TREE-COM connected to individual PL-M2000, or PL-C1050 via the INT communication port must be set as the
"LE AF".
3. All PL-TREE-COM modules must have their dipswitches set for the same channel number.
PL-C1050-###
Modbus: 30
PL-TREE-COM
Channel: 1
LEAF
PL-M2000-###
Modbus: 10
PL-TREE-COM
Channel: 1
LEAF
PL-NC2000
Modbus: 99
PL-TREE-COM
Channel: 1
ROOT
PL-M2000-###
Modbus: 20
PL-TREE-COM
Channel: 1
LEAF

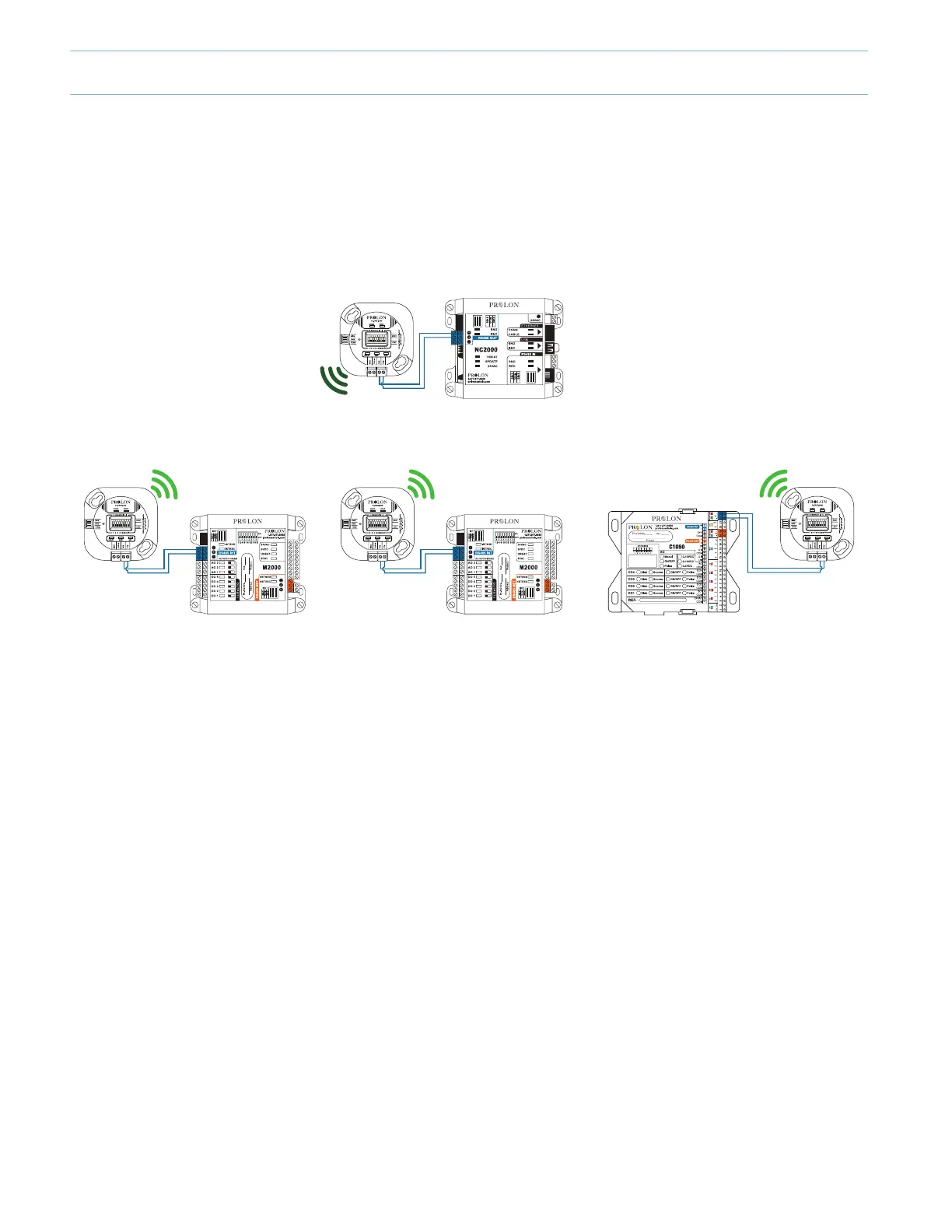

Figure 13
PL-TREE-COM Installation Scenarios
6-8
