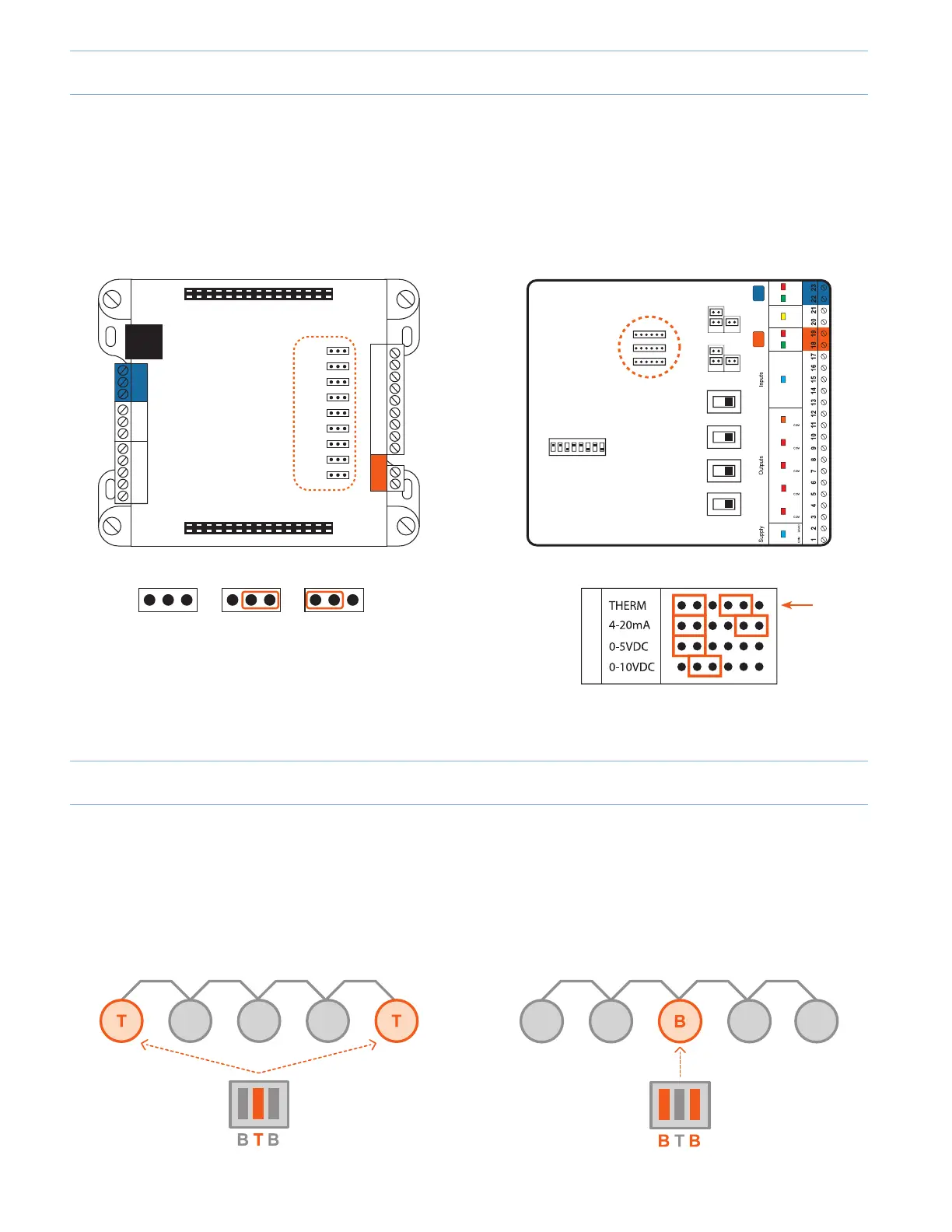

The VC2000, C1050 and M2000 Prolon controllers come equipped with analog input conguration jumpers that allow
the user to select the signal mode of the associated analog input. These come factory-set for their given application
but can be modied in the eld to accommodate the signal provided by an active transmitter, or when the controller is
reprogrammed into another application with dierent input signal mapping.
INT
BIAS THERM
DO1
DO2
DO3
DO4
AO
DO124V DO2 DO3 DO4 AO HBEAT STAT
NETREC NETSND INTREC INTSND
UI1
UI2
COM
UI3
DI
-
24VAC
COM
INT
+
B
NET
A
RS485
NET
RS485
INT
NET
BIAS THERM
UI3
UI2
UI1
JUMPERS
AI9
AI8
AI7
AI6
AI5
AI4
AI3
AI2
AI1
0-5 volts 4-20 mA THERMISTOR/
Dry Contact
EOL (End-of-Line) or TERM resistors
Onanynetworksegment,regardlessofquantityofdevices,
controllers at both extremities of the daisy-chain should
have their TERM jumpers set to ON, all other controllers
should have them OFF.
BIAS resistors
On any network segment, a single controller must have both
BIAS jumpers set to ON, all other controllers should have
them OFF
1. Thermistor & Dry Contact
Input Jumper Conguration
Term / Bias Resistors (Jumpers)
