Prolon VC2000 Series - PL-TREE-COM Principles

1. The Prolon PL-TREE-COM is a wireless communication device that transmits and receives Modbus RS485 data over radio
  frequencycommunication(2.4GHz)
2. Its goal is to wirelessly extend, complement, or replace standard RS485 wired daisy-chains, where a physical connection
would be impractical or uneconomical. (Figure 1)
3. TheTREE-COMmodulescommunicateondedicatedwirelesssubnet"channels",whereaunique"ROOT"moduletalks
with one or multiple "LEAF" units on the same channel.
3a) Channelidenticationismadethroughdipswitches.Upto128dierentchannelsmaybecreated.
3b) All TREE-COM communicating on a given channel must be set to the same dispswitch channel number.
3c) Thesedipswitchesarenottobemistakenwiththecontrollers'Modbusaddress,theyareforchannelidentication
only. (Figure 2)
3d) The "ROOT" module is always connected to a Modbus "Master" device, the "LEAF" always connect to "follower"
devices.
Figure 2
PL-M2000-RTU
Modbus: 20
PL-TREE-COM
Channel: 1
ROOT
PL-TREE-COM
Channel: 1
LEAF
PL-VC2000
Modbus: 21
PL-VC2000
Modbus: 22
PL-TREE-COM
Channel: 1
LEAF

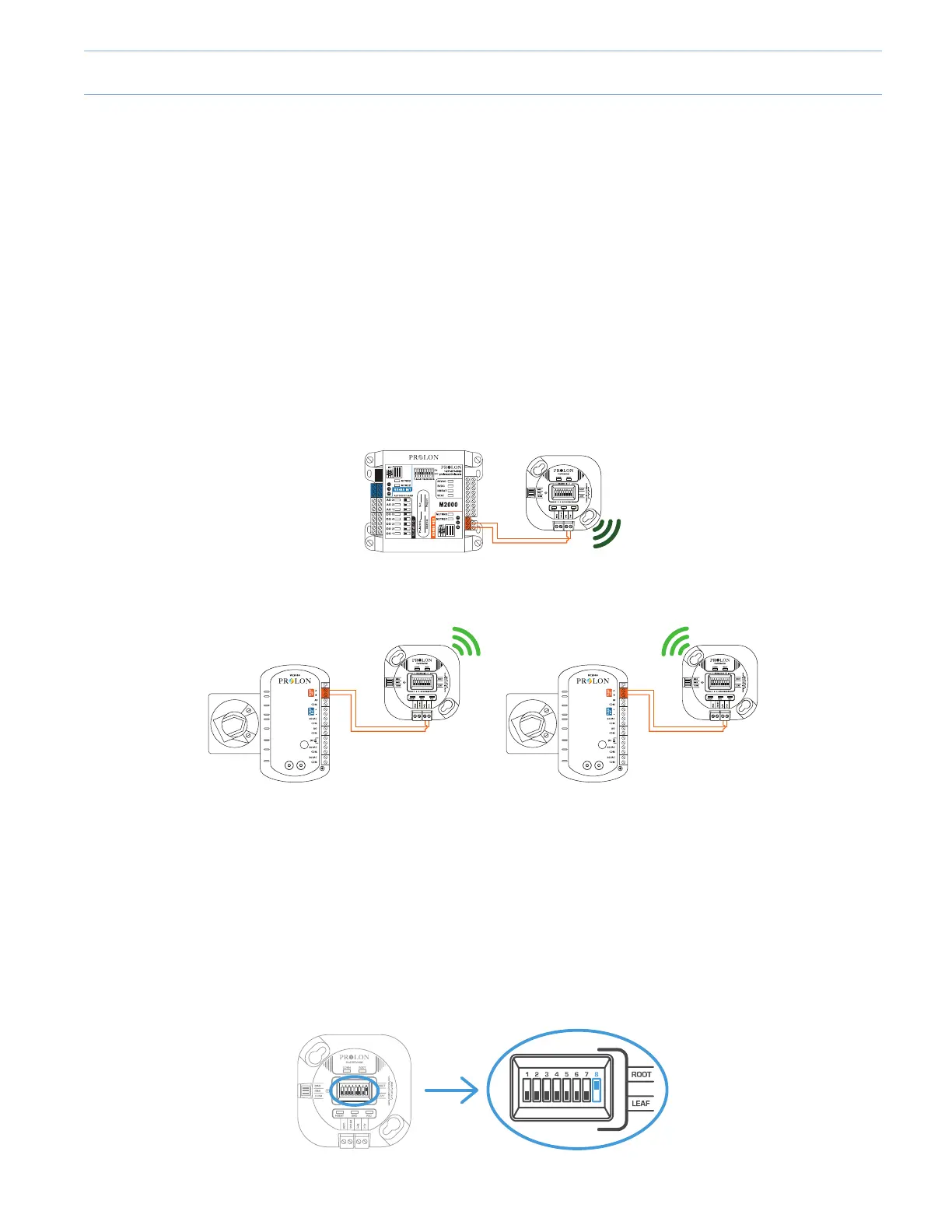

Figure 1
4. Each wireless segment must have one TREE-COM set as a "ROOT".
4a) The "ROOT"/"LEAF" function is activated using dipswitch number #8. (Figure 2)
4b) There can only be one "ROOT" on any given segment.
4c) The "ROOT" can have as many "LEAF" modules as needed by the Prolon system.
4d) The PL-TREE-COM, set as a "ROOT", communicates with all its "LEAF" modules
PL-TREE-COM Principles
6-1
