Prolon VC2000 Series - Page 25

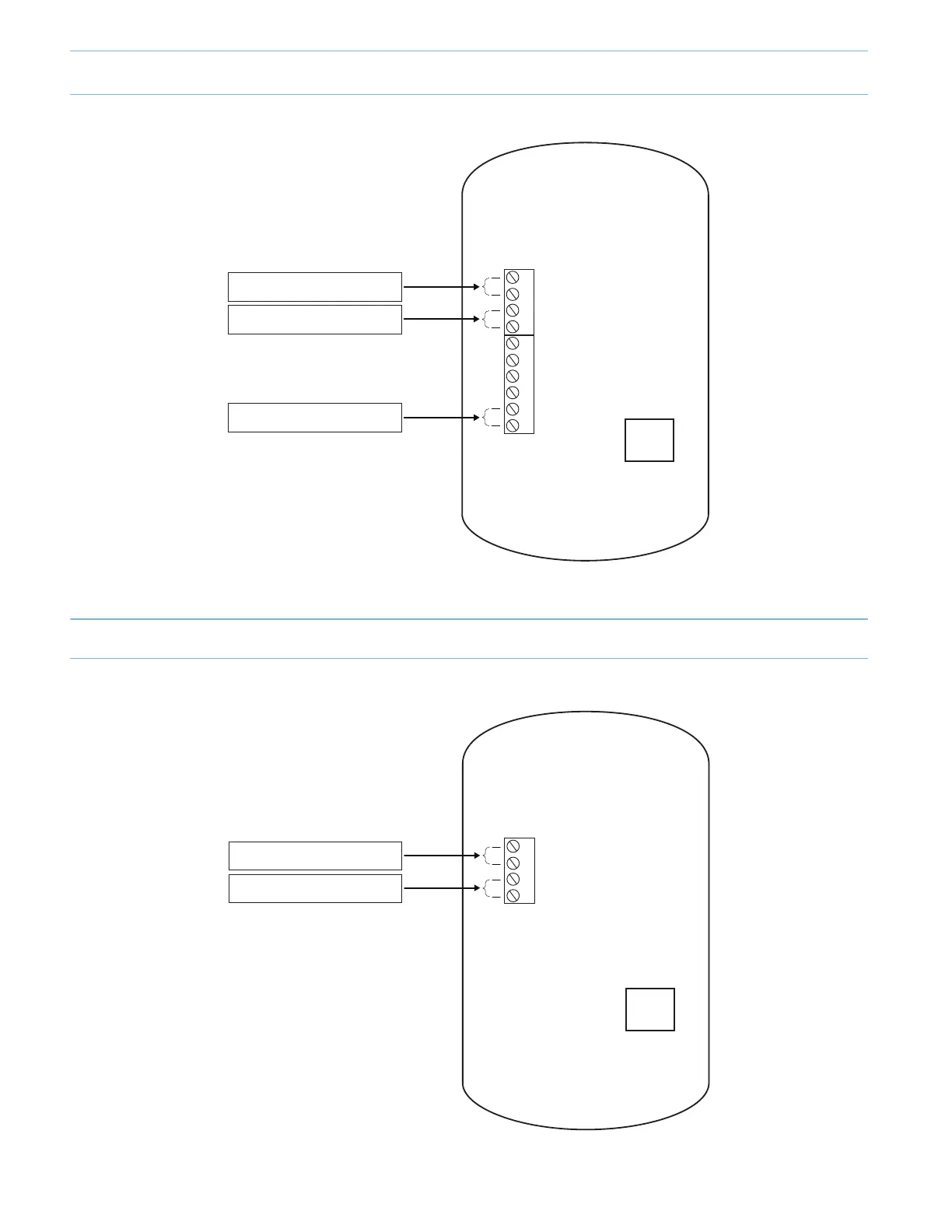

PL-T1000 (Digital Wall Sensor)
RJ45
Interface communication
Power source of the controller
24 VAC
Auxiliary / Radiant Floor temperature
sensor (10K thermistor)
INT +
INT -
24 VAC
COM
AUX IN
COM
1
2
3
4
5
6
7
8
9
10
RJ45
Interface communication
Power source of the controller
24 VAC
INT +
INT -
24 VAC
COM
1
2
3
4
PL-T500 / PL-T200 (Digital Wall Sensor)
4-4
