Master Controller with multiple Follower Controllers (fully wireless network)
Follower Controllers (VC2000, C1050-VAV, T1100, FLX, BLR, etc.) can be connected wirelessly to a Master Unit Controller such
as a PL-M2000-HP or RTU or a PL-C1050-RTU or HP.
1. Each controller must have its own dedicated PL-TREE-COM device
2. The PL-TREE-COM connected to each Follower Controller must be in set as the "LEAF". (NET Port)
3. The PL-TREE-COM connected to the Master Controller must be set as the "ROOT". (NET Port)
4. All PL-TREE-COM modules must have their dipswitches set for the same channel number.
PL-M2000-###
Modbus: 10
PL-TREE-COM
Channel: 1
ROOT
PL-VC2000
Modbus: 1
PL-TREE-COM
Channel: 1
LEAF
PL-VC2000
Modbus: 2
PL-TREE-COM
Channel: 1
LEAF
PL-C1050-###
Modbus: 3
PL-TREE-COM
Channel: 1
LEAF

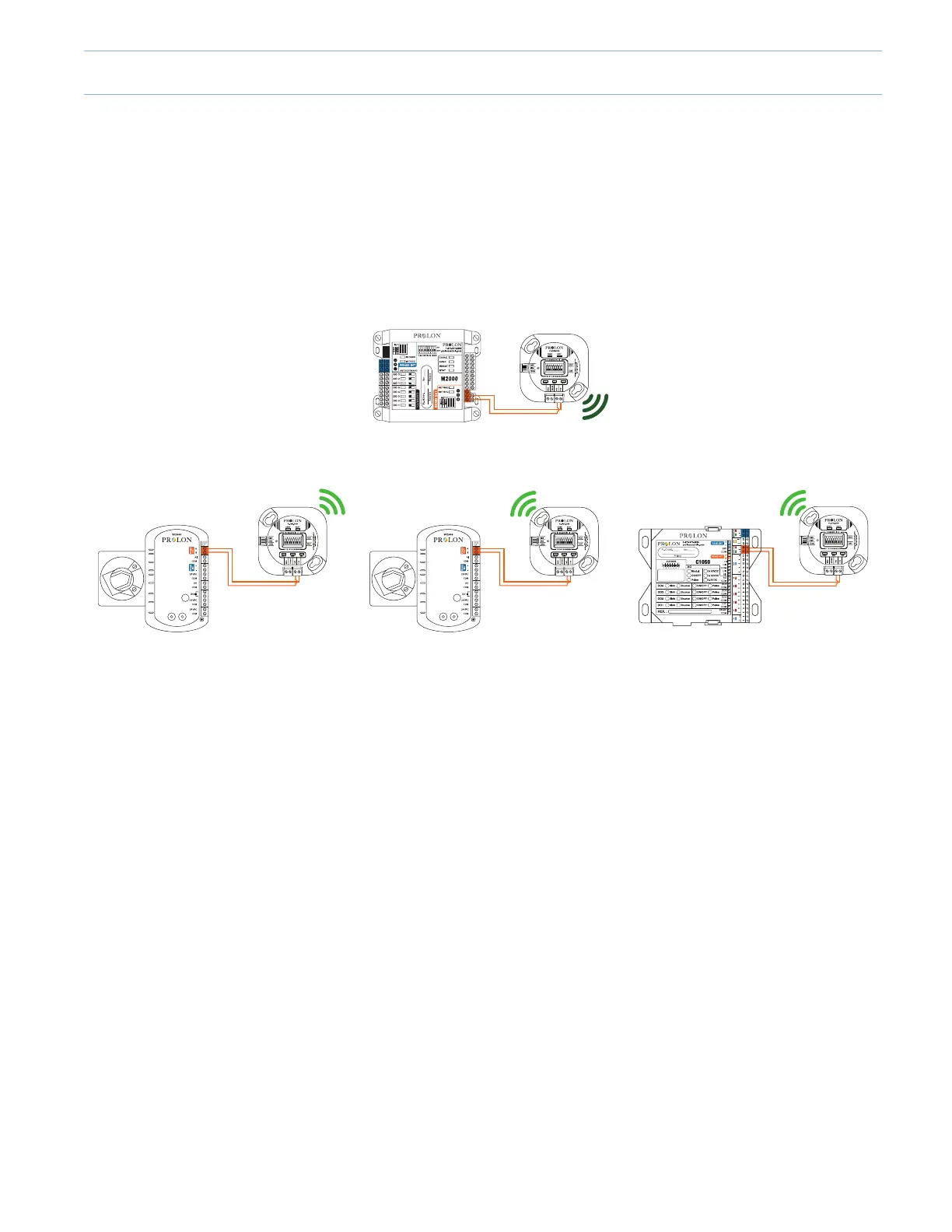

Figure 10
