MR-20 OPERATOR’S GUIDE
13
Front and Bottom Panels
CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW

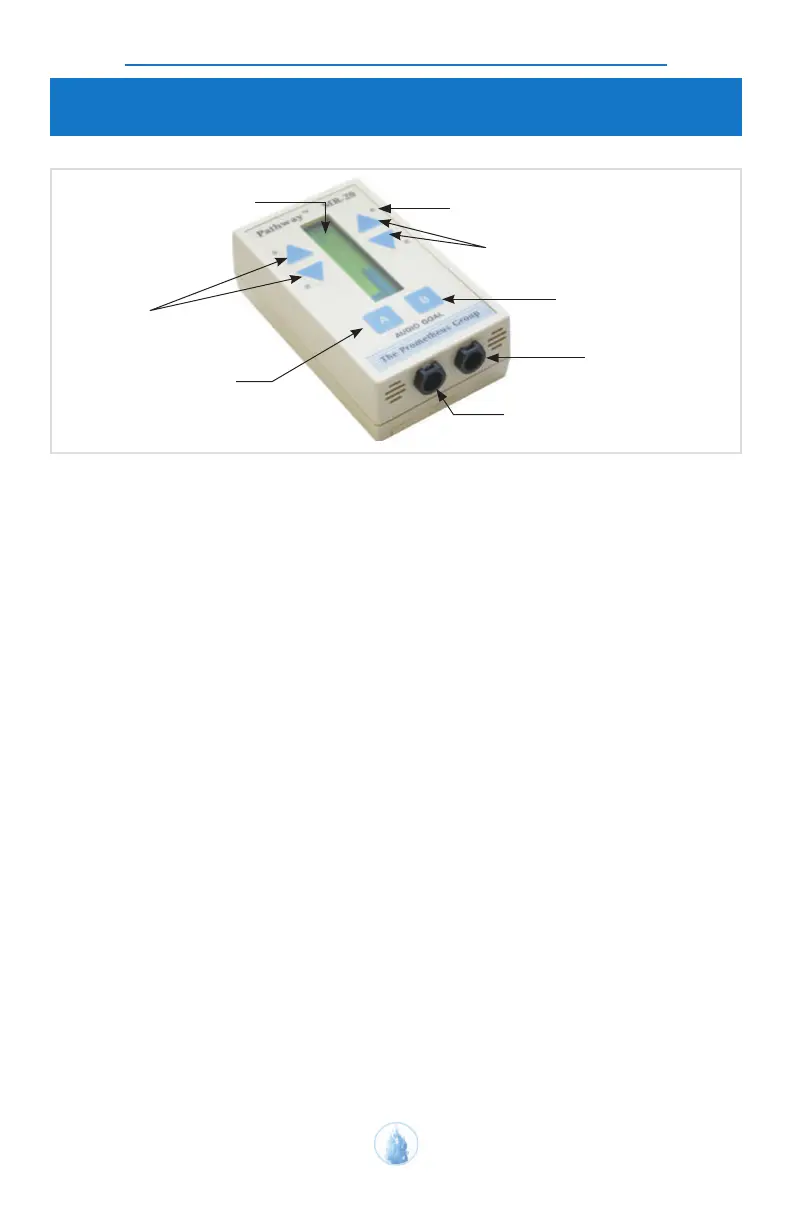

The device pictured above is the Pathway
®
MR-20 Dual Channel EMG System with
Alpha/Numeric LCD Display. Note EMG input Channels A & B.
EMG A: Is the primary EMG Channel and the input for the Pathway
®
Preamplier
(Part #2583).
EMG B: Is the secondary or accessory EMG Channel and the input for the Pathway
®
Preamplier (Part #2583).
Dual Channel LCD Display (Bar Graph): Displays Channel options, moving bar
graphics, goal level, goal direction, and microvolt levels.
Four LED Indicator Lights: To signal goal success.
Up and Down Arrow Keys: Two sets of Up and Down Arrow Keys to position the goal
arrow on the LCD display for each Channel.
Channel “A” and Channel “B” Keys: Dene display type, direction, and control
special functions.
EMG A
EMG B
Four LED Indicator Lights
Up and Down Arrow Keys
for Channel A
Up and Down Arrow Keys
for Channel B
Dual Channel LCD Display
(Bar Graph)
Channel “A” Key
Channel “B” Key
