PROMETHEUS PATHWAY MR-20 User Manual

PATHWAY
®
MR-20 OPERATOR’S GUIDE
22
Pathway
®
Rectal EMG/Stimulation Sensor (Part #6340) Placement: For proper
orientation of the sensing surfaces, insert the Pathway
®
Rectal EMG/Stimulation
Sensor (Part #6340) into the rectum so the sensor base rests up against the anus and
the longer tab labeled “FRONT” is pointed up toward the pubis. (See Figures 7 and 7A
below).
CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW
NOTE: For complete information regarding the Pathway
®
Intracavity
Sensors, refer to the product packaging insert which includes:
• Cautions
• Cleaning
• Directions for Use
• Indications for Use
• Contraindications for Use
• Warranty Information
Additional cleaning instructions can also be found on page 51 at the back of
this Operator’s Guide.
NOTE: ALL PROMETHEUS GROUP
®
SENSORS ARE RESTRICTED TO
SINGLE PATIENT USE ONLY.
Pathway
®
Intracavity Sensors (Part #6340)
For Pathway
®
Sensor (Part #6340)
The two active (ACT) sensing surfaces are located at 10 and 2 o’clock.
The single ground (GND) sensing surface is located at 6 o’clock.
Pathway
®
Intracavity Sensor Orientation

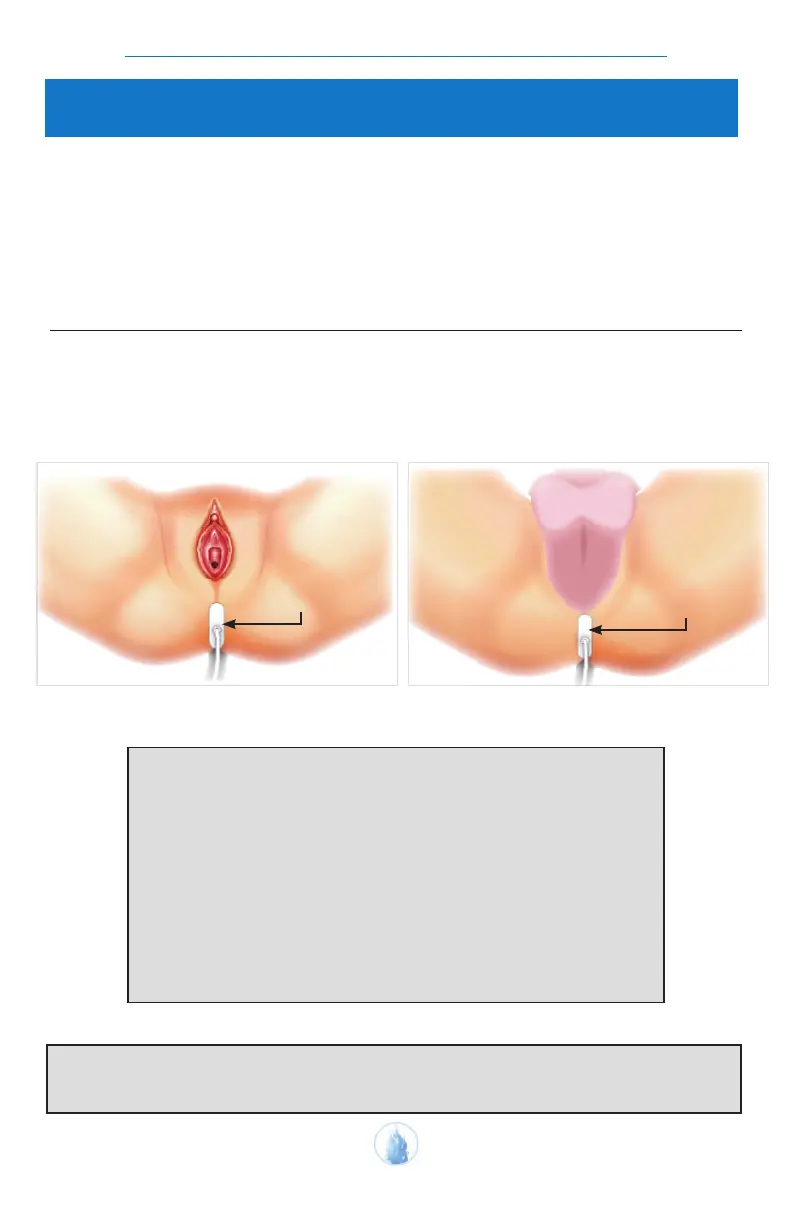

Figure 7 Figure 7A
Pathway
®
Rectal EMG/
Stimulation Sensor
(Part #6340)
(EMG A)
Pathway
®
Rectal EMG/
Stimulation Sensor
(Part #6340)
(EMG A)
Female Rectal Sensor Placement Male Rectal Sensor Placement
