PROMETHEUS PATHWAY MR-20 User Manual

PATHWAY
®
MR-20 OPERATOR’S GUIDE
21
CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW
Pathway
®
Intracavity Sensors (Part #6320)
Pathway
®
Vaginal/Rectal EMG Sensor (Part #6320) Rectal Placement: For proper
orientation of the sensing surfaces, insert the Pathway
®
Vaginal/Rectal EMG Sensor
(Part #6320) into the rectum so the sensor base rests up against the anus and the tab
is pointed up toward the pubis. (See Figures 6 and 6A below).
For Pathway
®
Sensor (Part #6320)
The two active (ACT) sensing surfaces are located at 9 and 3 o’clock.
The single ground (GND) sensing surface is located at 12 o’clock.
Pathway
®

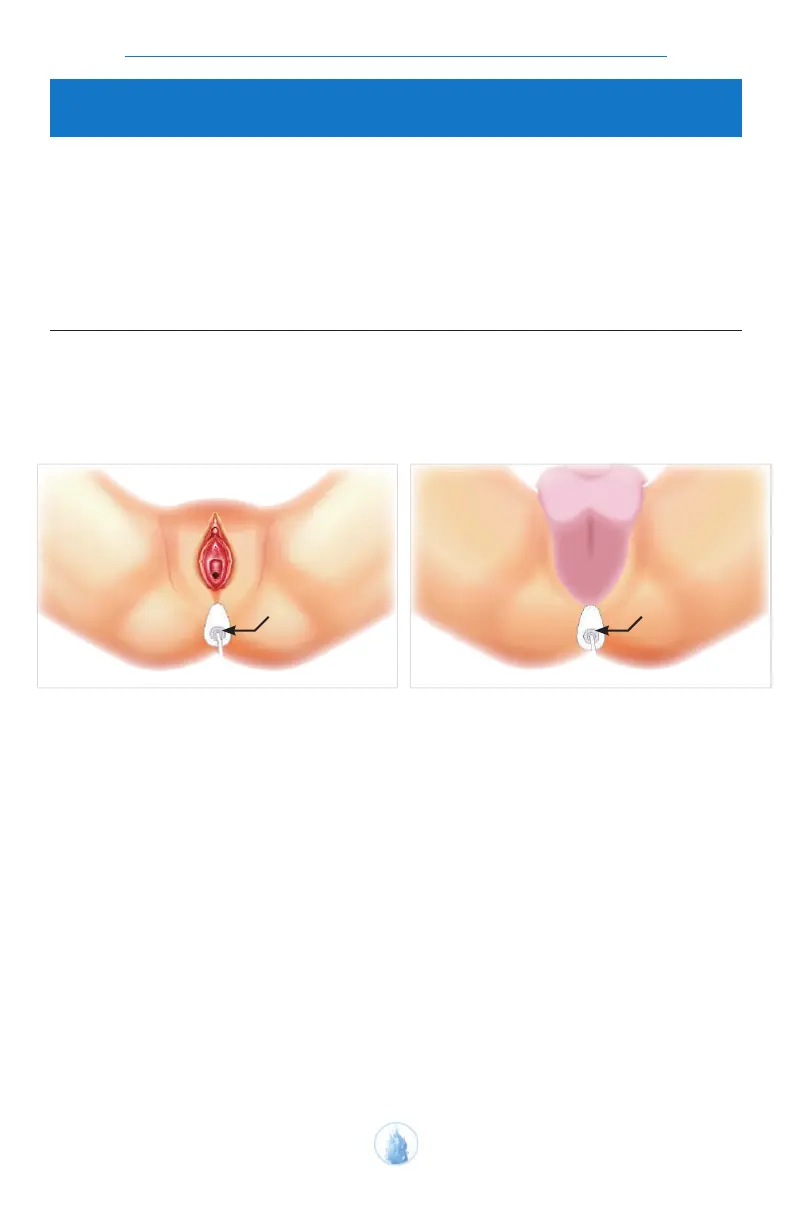

Intracavity Sensor Orientation
Figure 6 Figure 6A
Pathway
®
Vaginal/Rectal
EMG Sensor
(Part #6320)
(EMG A)
Pathway
®
Vaginal/Rectal
EMG Sensor
(Part #6320)
(EMG A)
Female Rectal Sensor Placement Male Rectal Sensor Placement
