PATHWAY

MR-20 OPERATOR’S GUIDE

CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW

Pathway

Intracavity Sensors (Part #6330, Part #6320, and Part #6340)

Connecting the Pathway

Preamplier to the Pathway

Adapter: Open the Velcro

sleeve of the Pathway

Adapter (Part #3660), and match the female snaps on the end

of the Pathway

Preamplier (Part #2583) with the male snaps of the Pathway

Adapter

(Part #3660), connect and tightly re-wrap the Velcro sleeve ensuring the Pathway

Preamplier stays secure.

Connecting the Pathway

Sensor(s) to the Pathway

Adapter: To connect the

sensor(s) into the Pathway

Adapter (Part #3660), take the sensor plug end

(male six-pin mini din connector) with at side up, then take the Pathway

Adapter (Part

#3660), noting the notched top of the connector input (also at side up), push sensor

plug end straight into the Pathway

Adapter connector input to make the male/female

connection. Push rmly and do not twist.

Lubrication: Refer to the “Directions for Use” section of the Pathway

Sensor

packaging product insert for lubrication instructions.

Pathway

Sensor Placement (Part #6330 & Part #6320): For proper orientation of

the sensing surfaces, insert the Pathway

Vaginal EMG/Stimulation Sensor

(Part #6330) or the Pathway

Vaginal/Rectal EMG Sensor (Part #6320) into the vagina

so the sensor base rests up against the labia and the tab is pointed up toward the

pubis. (See Figure 5 below).

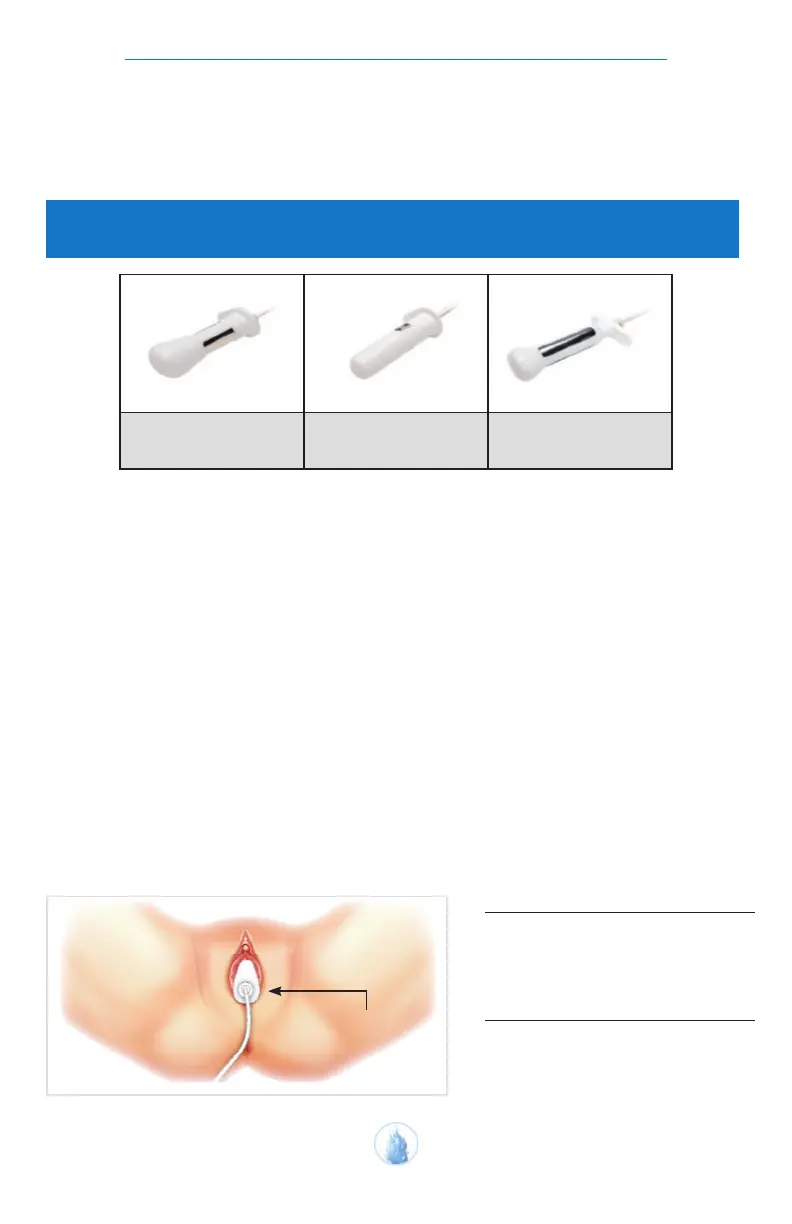

Figure 5.

Pathway

Intracavity Sensor Orientation

Pathway

Vaginal EMG/

Stimulation Sensor

(Part #6330)

Pathway

Vaginal/Rectal

EMG Sensor

(Part #6320)

Pathway

Rectal EMG/

Stimulation Sensor

(Part #6340)

Vaginal Sensor

Placement

For Pathway

Sensor (Part #6330)

The two active (ACT) sensing surfaces are

located at 10 and 2 o’clock.

The single ground (GND) sensing surface is

located at 6 o’clock.

For Pathway

Sensor (Part #6320)

The two active (ACT) sensing surfaces are

located at 9 and 3 o’clock.

The single ground (GND) sensing surface is

located at 12 o’clock.

Placement of Sensors:

(Part #6330 and Part #6320)

(EMG A)

Female Vaginal Sensor Placement
