MR-20 OPERATOR’S GUIDE
25
Adapter for 7400 Disposable Lead Wire
Electrodes (Part #7100)
Disposable Lead Wire Electrodes,
Bag of 75 / 25 Patients, Square Electrode,
24” Lead Wire, .060 Female Pin
(Part #7400)
To obtain best EMG results the following steps should be taken:
Connecting the Adapter for Disposable Lead Wire Electrodes to
the Pathway
®
Adapter: Take the Adapter for Disposable Lead Wire Electrodes
(Part #7100) plug end (male six-pin mini din connector), with at side up, then take the
Pathway
®
Adapter (Part #3660), noting the notched top of the connector input, (also
at side up), push Adapter for Disposable Lead Wire Electrode plug end straight into
the Pathway
®
Adapter connector input to make the male/female connection.
Push rmly and do not twist.
CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW

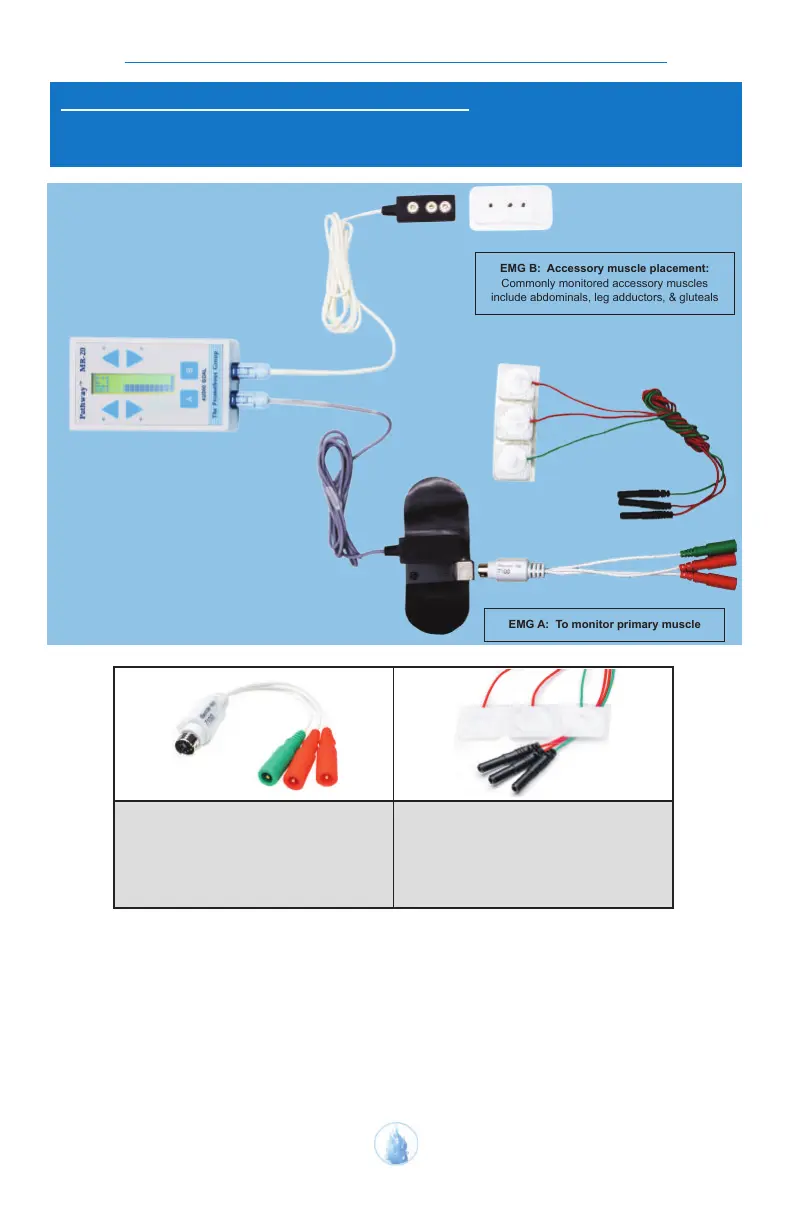

Cable Connections for External Pelvic Floor: Connecting the
Pathway
®
Adapter (Part #3660) to the Adapter for Disposable Lead Wire
Electrodes (Part #7100) to the Disposable Lead Wire Electrodes (Part #7400)
EMG B: Accessory muscle placement:
Commonly monitored accessory muscles
include abdominals, leg adductors, & gluteals
EMG A: To monitor primary muscle
