PATHWAY
®
MR-20 OPERATOR’S GUIDE
26
CHAPTER 1: PHYSICAL/MECHANICAL OVERVIEW
Connecting Disposable Lead Wire Electrodes to the Adapter for Disposable Lead
Wire Electrodes: Insert the Disposable Lead Wire Electrodes (Part #7400) into the
Adapter for Disposable Lead Wire Electrodes (Part #7100) ensuring the two red (active)
lead wires and the single green (ground) lead wire are inserted completely and match
the color on the Adapter for Disposable Lead Wire Electrodes (Part #7100).
Skin Preparation: Gently wipe down the area around the perineum using a moist,
disposable, towelette and allow area to dry completely.
Disposable Lead Wire Electrode Preparation: With the Disposable Lead Wire
Electrodes (Part #7400) attached to the Adapter for Disposable Lead Wire Electrodes
(Part #7100) carefully remove the mylar backing being cautious to keep the hydrogel
adhesive intact on the back of the electrodes. Remove the Disposable Lead Wire
Electrodes (Part #7400) individually.
Surface Perineal Placement of Disposable Lead Wire Electrodes
(Part #7400)
NOTE: For complete information regarding the Adapter for Disposable
Lead Wire Electrodes (Part #7100), refer to the product packaging
insert which includes:
• Cautions
• Cleaning
• Directions for Use
Additional cleaning instructions can also be found on page 51 at the back of
this Operator’s Guide.
Surface Electrodes (External Pelvic Floor) Placement

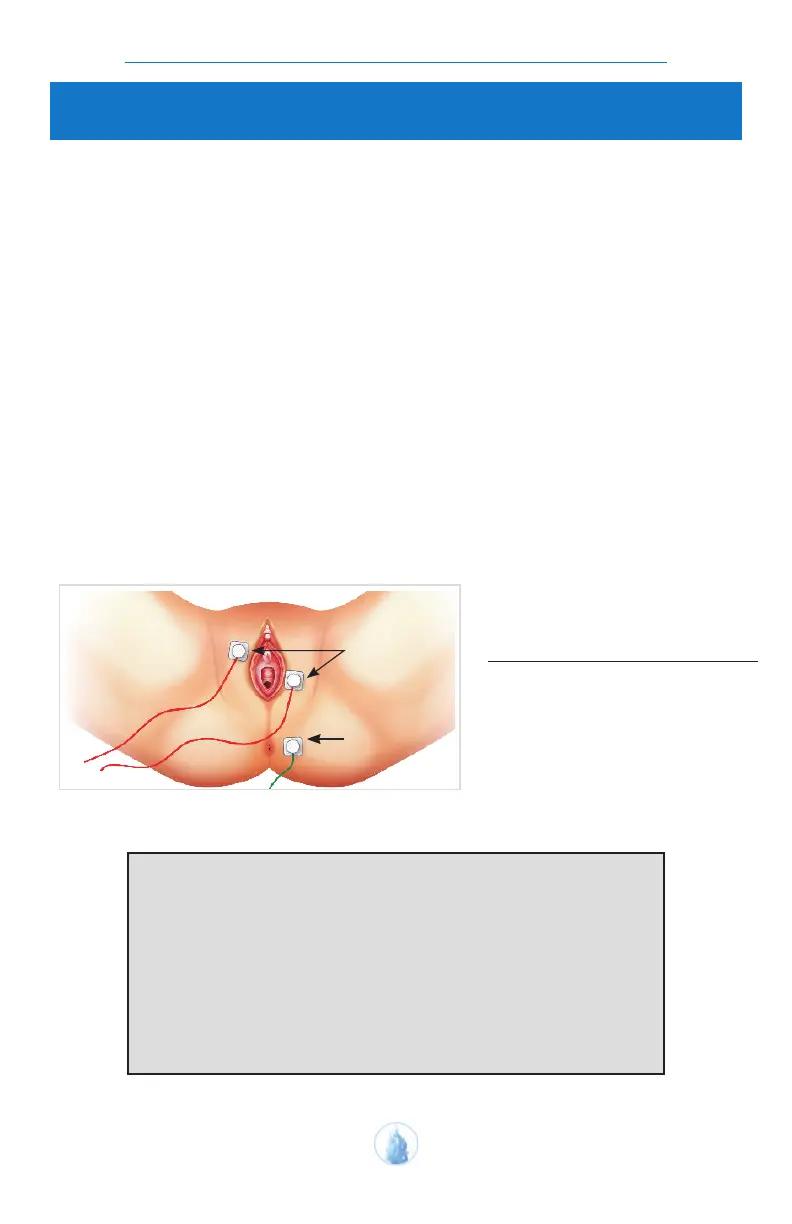

Figure 9.
Disposable Lead Wire Electrodes
(Part #7400)
The two active (ACT) surface electrodes are
placed at 10 and 4 o’clock.
The single ground (GND) surface electrode
is placed on the gluteal muscles.
(Ground)
Electrode
(Active)
Electrodes
