ProMinent Beta BT4b - Dimensional drawing of Beta b, PV material version; Dimensional drawing of Beta b, PV HV material version

92 / 102
81 / 85
41 / 36
131.5 / 135.5
80
E
95 / 101
F
M
K
L
10 / 15
148 / 153
29.3
6x4
P_BE_0022_SW

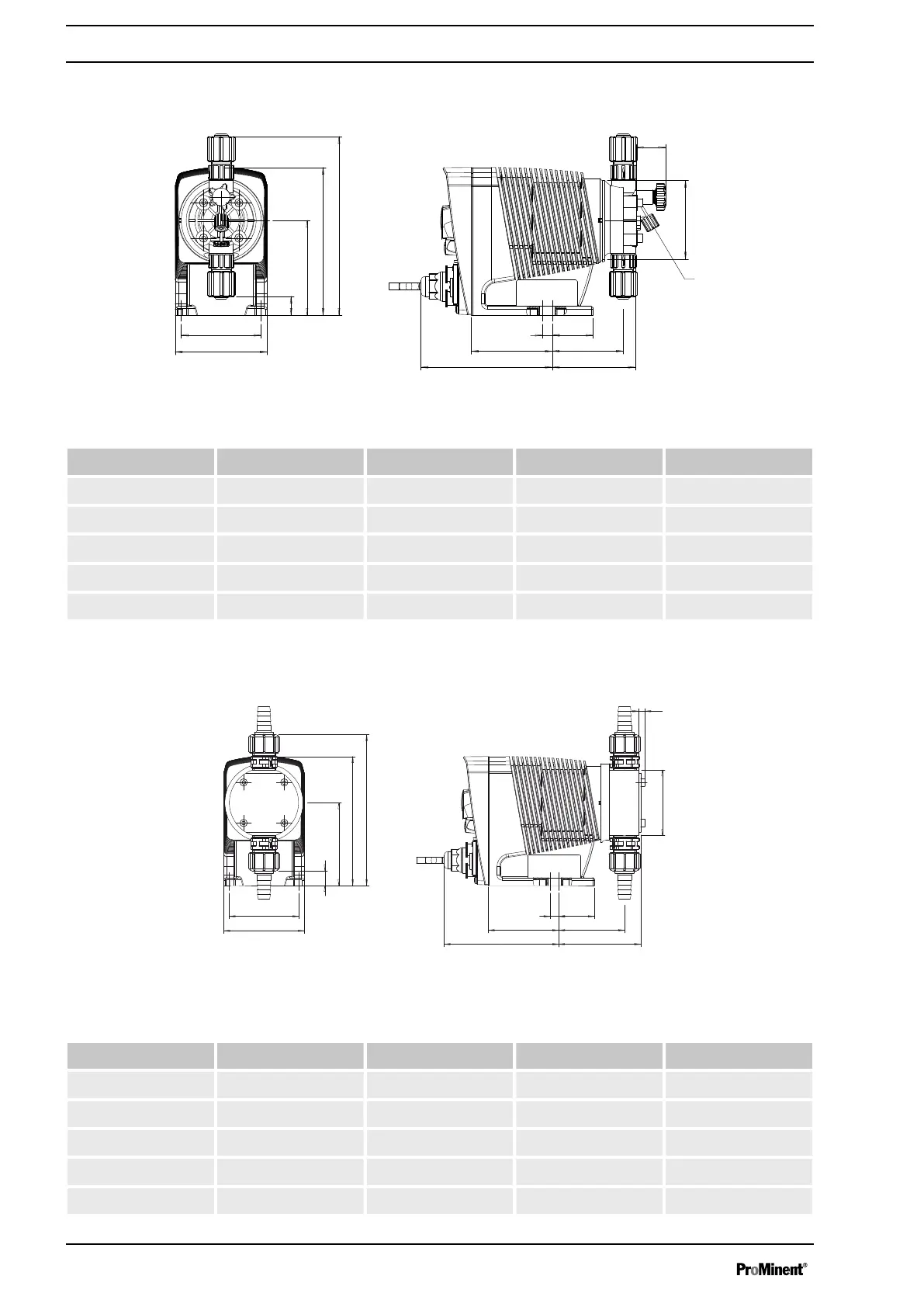

Fig. 16: Dimensional drawing of Beta
®
BT4b/BT5b, PV material version - dimensions in mm
1604 0708 - 0220 1008 - 0420 0232
E 19 8 14 3.2
F 179 185.5 191.5 199
K 71 73 73 76
L 83 90 90 93
M Ø 70 Ø 90 Ø 90 Ø 110
92 / 102
81 / 85
41 / 36
131.5 / 135.5
80
10 / 15
E
95 / 101
F
148 / 153
M
K
L
6.9
P_BE_0023_SW
Fig. 17: Dimensional drawing of Beta
®
BT4b/BT5b, PV material version for highly viscous feed chemicals -
dimensions in mm
1604 0708 - 0220 1008 - 0713 0420
E 17 13 22.8 19
F 173 177 179.2 183
K 75.5 77 75.5 78.5
L 94 95 94 96.5
M Ø 80 Ø 85 Ø 85 Ø 85
Dimensional drawing of Beta
®
b, PV
material version
Dimensional drawing of Beta
®
b, PV
HV material version
