ProMinent Beta BT4b - Dimensional drawing of Beta b, TT material version; Dimensional drawing of Beta b, SS material version

K
L
81 / 85
131.5 / 135.5
41 / 36 80
92 / 102
95 / 101
148 / 153
M
E
F
10 / 15
P_BE_0024_SW

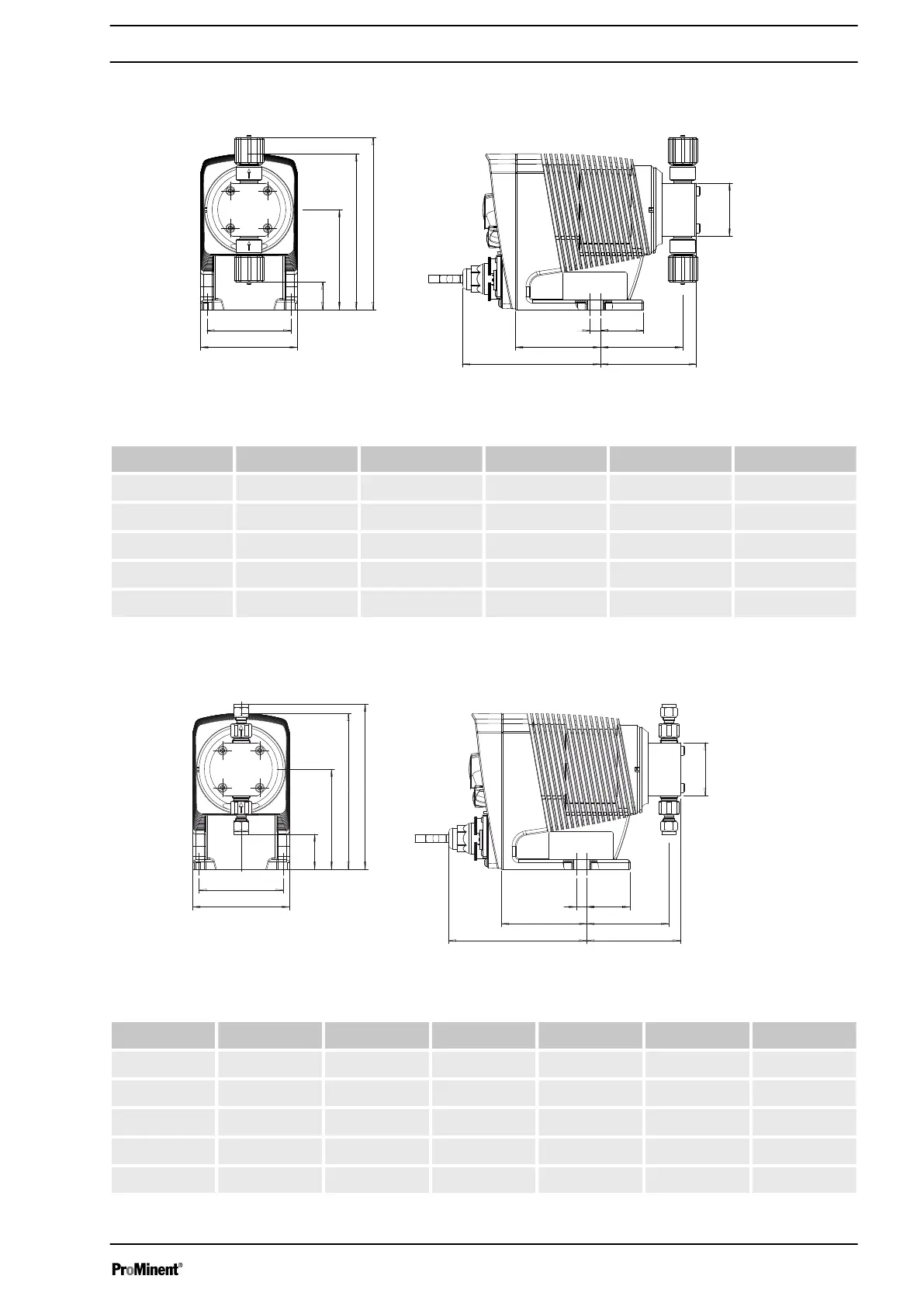

Fig. 18: Dimensional drawing of Beta
®
BT4b/BT5b, TT material version - dimensions in mm
1000 - 1601 1602 - 1604 0708 - 0220 1008 - 0420 0232
E 26 21.5 -13 -7.2 -15.2
F 164 169 203 208.7 216.7
K 78 72 77 77 78
L 91 86 94 94 97
M Ø 60 Ø 70 Ø 85 Ø 85 Ø 100
10 / 15
81 / 85
131.5 / 135.5
80
92 / 102 41 / 36
E
M
K
L
95 / 101
F
148 / 153
P_BE_0025_SW
Fig. 19: Dimensional drawing of Beta
®
BT4b/BT5b, SS material version - dimensions in mm
1000 - 1601 1602 - 1604 0708 - 0220 2504 1008 - 0420 0232
E 33 24.5 -8 31.7 -1.8 -8
F 157 165.5 197.5 170,4 203.3 210
K 78 75 82 72 77 78
L 89 87 97 84 92 95
M Ø 60 Ø 70 Ø 85 Ø 70 Ø 85 Ø 110
Dimensional drawing of Beta
®
b, TT
material version
Dimensional drawing of Beta
®
b, SS
material version
Appendix
49
