ProMinent Beta BT4b - Beta 0708 (1008) - 0220 (0420) NP liquid end with and without bleed valve

1
5
1
8
6
2
2
3
4
7
P_BE_0036_SW

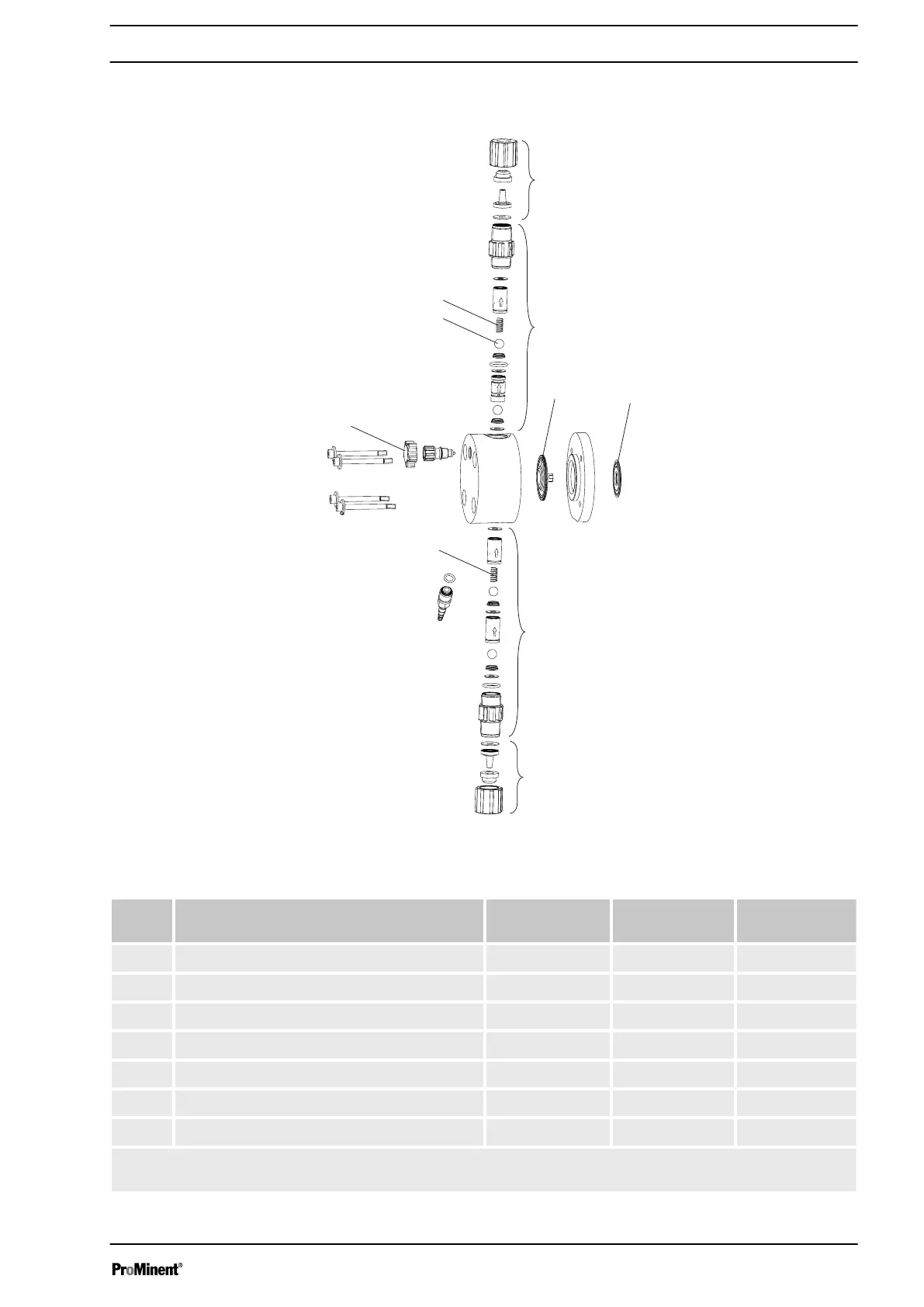

Fig. 27: Beta
®
0708 (1008) - 0220 (0420) NP liquid end with and without bleed valve
Pos. Description Type 0708
(1008)
Type 0413
(0713)
Type 0220
(0420)
1 Connector kit 8/5 PVT 1023247 1023247 1023247
3 4 Valve balls 404281 404281 404281
4 Bleed valve 1021662 1021662 1021662
5 Discharge valve, compl. 9.2-2 PVT 1023125 1023125 1023125
6 Diaphragm 1000248 1000249 1000250
7 Safety diaphragm 1027414 1027414 1027414
8 Suction valve, compl. 9.2-2 PVT 1023126 1023126 1023126
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
0708 (1008) - 0220
(0420) NP
liquid end with and without bleed valve
Appendix
57
