ProMinent Beta BT4b - Beta 0232 NP liquid end with and without bleed valve

1
5
1
8
6
2
2
3
4
7
P_BE_0037_SW

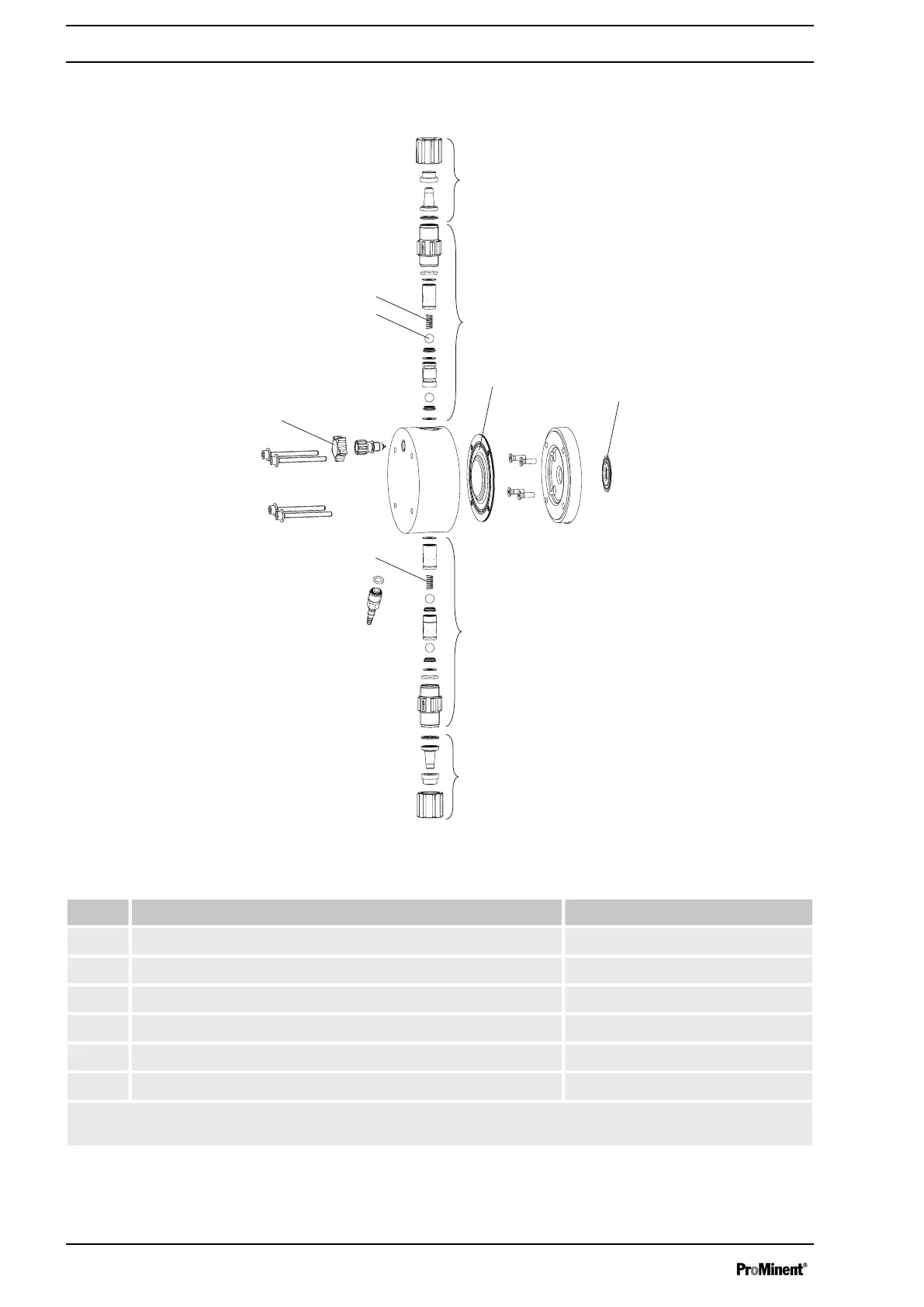

Fig. 28: Beta
®
0232 NP liquid end with and without bleed valve
Pos. Description Type 0232
1 Connector kit 12/9 PVT 1023248
3 4 Valve balls 404281
5 Discharge valve, compl. 9.2-2 PVT 1023125
6 Diaphragm 1000251
7 Safety diaphragm 1027414
8 Suction valve, compl. 9.2-2 PVT 1023126
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
0232 NP liquid end with and
without bleed valve
Appendix
58
