ProMinent Beta BT4b - Beta 1000 - 1604 TT liquid end

1
1
5
8
6
7
2
2
3
P_BE_0029_SW

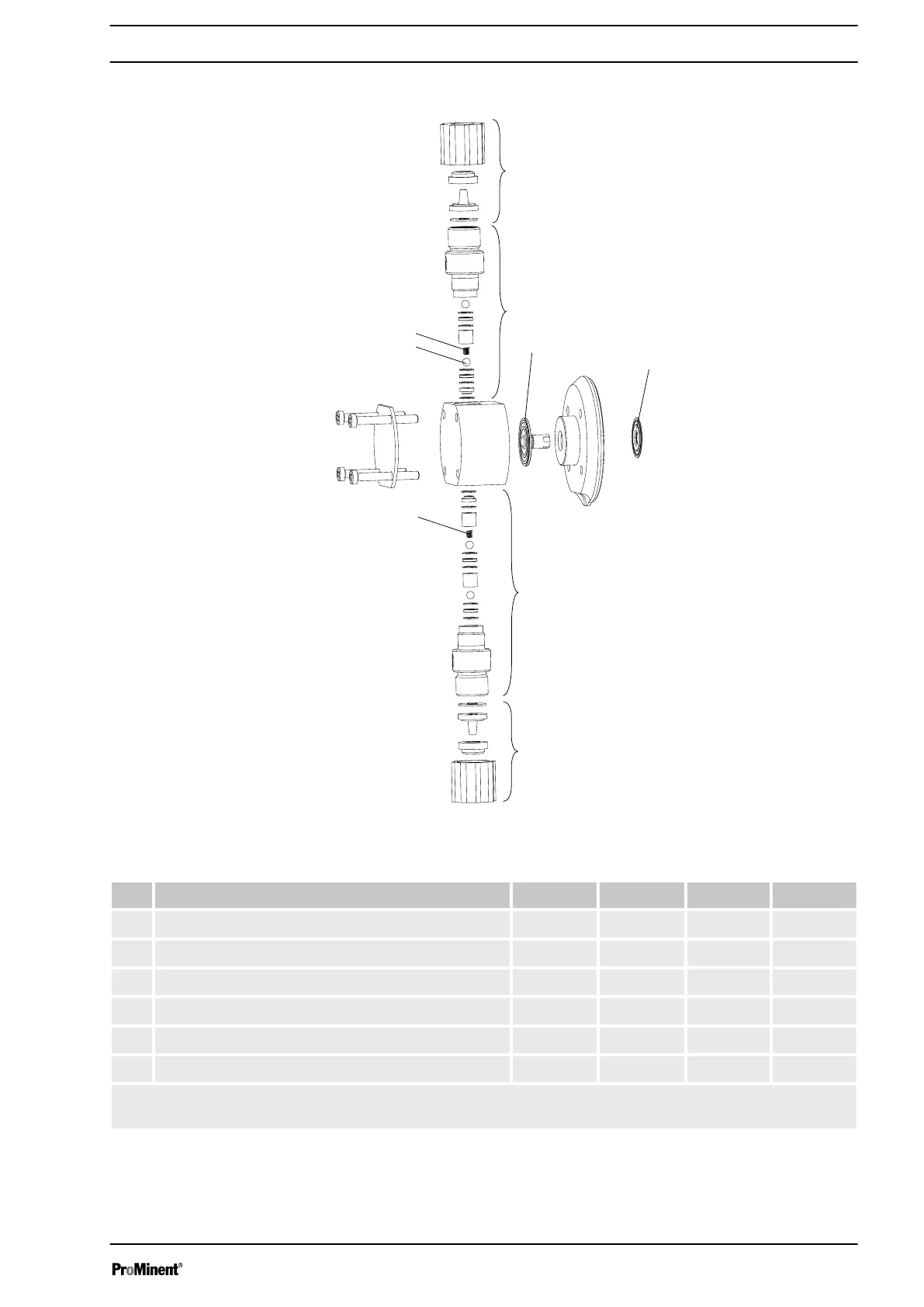

Fig. 33: Beta
®
1000 - 1604 TT liquid end
Pos. Description Type 1000 Type 1601 Type 1602 Type 1604
1 Connector kit 6/4 TTT 817201 817201 817201 817201
3 4 Valve balls 404201 404201 404201 404201
5 Discharge valve, compl. 4.7-2 TTT 809406 809406 809406 809406
6 Diaphragm 1000244 1000245 1000246 1034612
7 Safety diaphragm 1027414 1027414 1027414 1027414
8 Suction valve, compl. 4.7-2 TTT 809407 809407 809407 809407
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
1000 - 1604 TT liquid end
Appendix
63
