ProMinent Beta BT4b - Beta 0708 (1008) - 0220 (0420) TT liquid end

1
1
5
8
6
7
2
2
3
P_BE_0030_SW

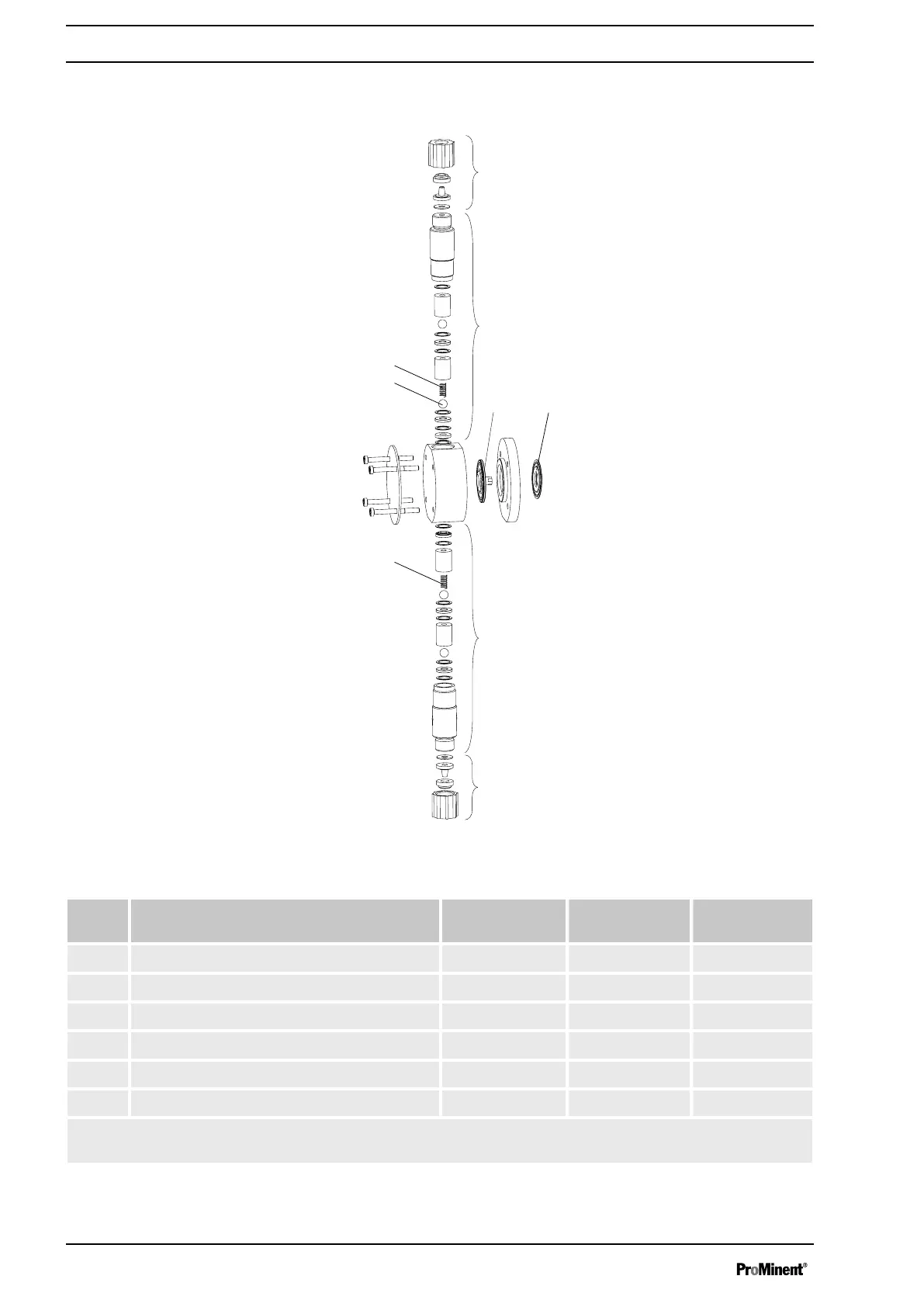

Fig. 34: Beta
®
0708 (1008) - 0220 (0420) TT liquid end
Pos. Description Type 0708
(1008)
Type 0413
(0713)
Type 0220
(0420)
1 Connector kit 8/5 TTT 817204 817204 817204
3 4 Valve balls 404281 404281 404281
5 Discharge valve, compl. 9.2-2 TTT 809444 809444 809444
6 Diaphragm 1000248 1000249 1000250
7 Safety diaphragm 1027414 1027414 1027414
8 Suction valve, compl. 9.2-2 TTT 809445 809445 809445
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
0708 (1008) - 0220
(0420) TT
liquid end
Appendix
64
