ProMinent Beta BT4b - Beta 1000 - 1604 SS liquid end

7
1
8
6
5
1
2
2
3
P_BE_0026_SW

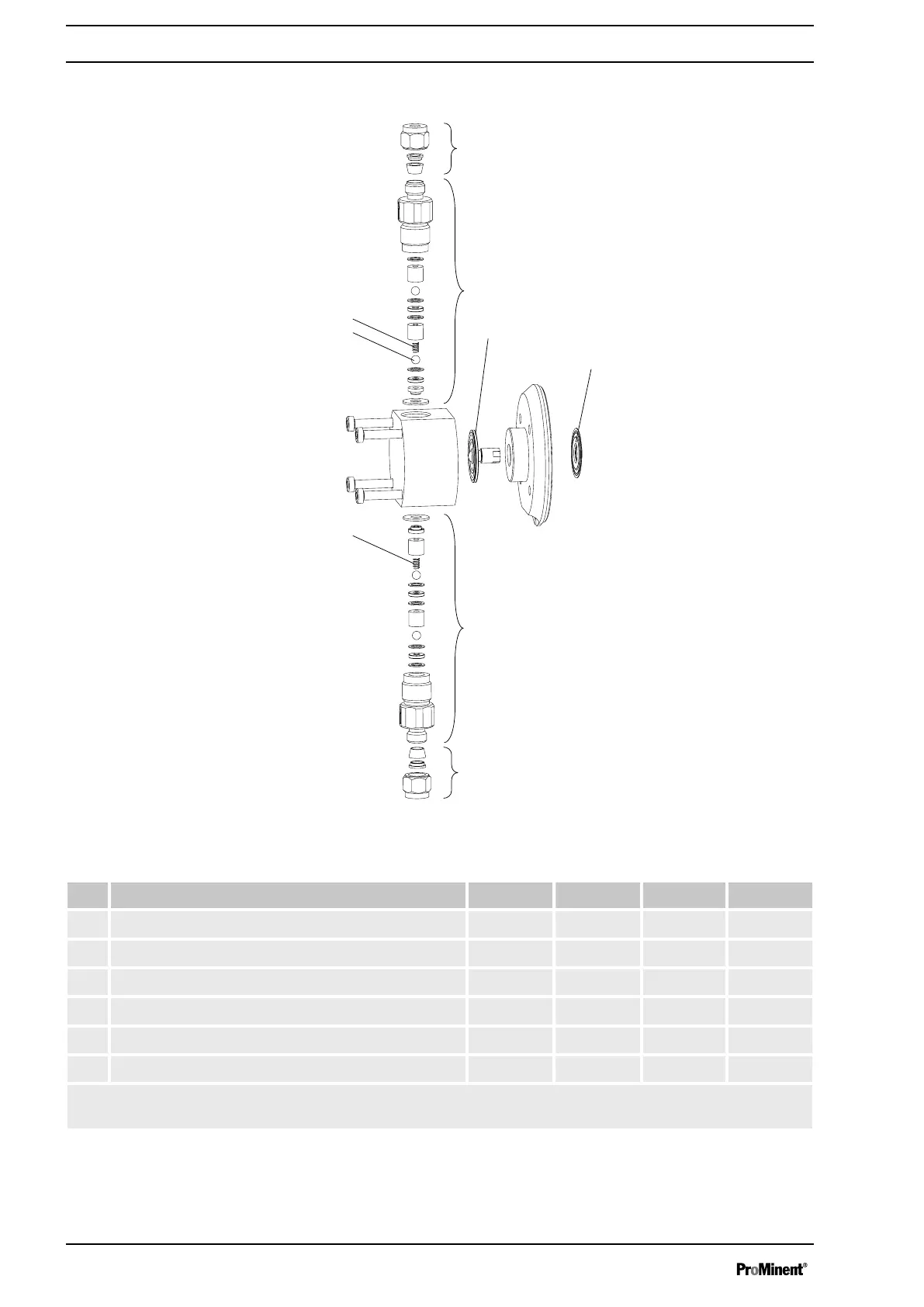

Fig. 36: Beta
®
1000 - 1604 SS liquid end
Pos. Description Type 1000 Type 1601 Type 1602 Type 1604
1 Connector kit 6 mm SS 104233 104233 104233 104233
3 4 Valve balls 404201 404201 404201 404201
5 Discharge valve compl. 6 mm SST 809418 809418 809418 809418
6 Diaphragm 1000244 1000245 1000246 1034612
7 Safety diaphragm 1027414 1027414 1027414 1027414
8 Suction valve compl. 6 mm SST 809419 809419 809419 809419
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
Beta
®
1000 - 1604 SS liquid end
Appendix
66
