ProMinent Beta BT4b - Beta 0708 (1008) - 0220 (0420) SS liquid end

1
1
5
8
6
7
2
2
3
P_BE_0027_SW

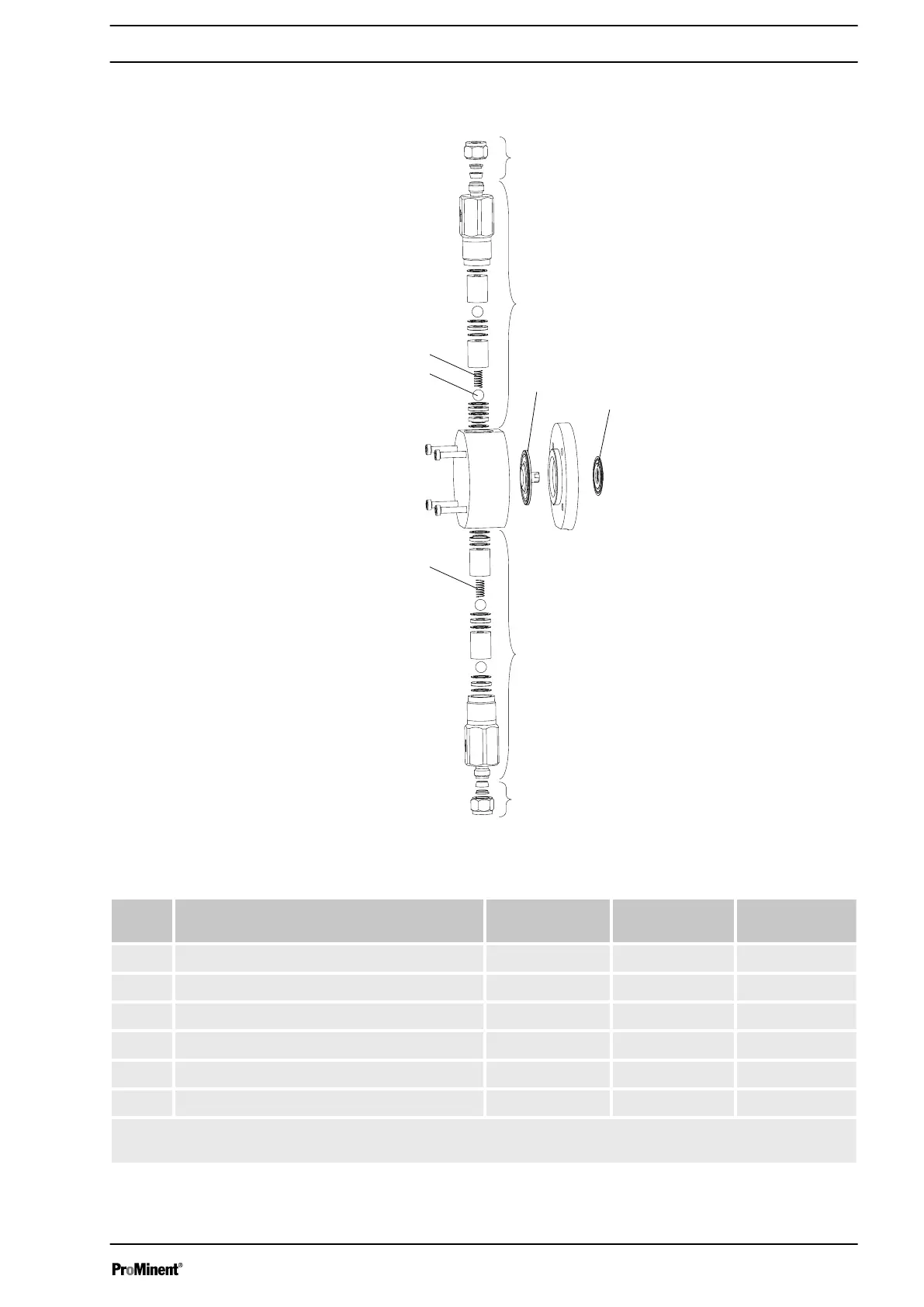

Fig. 37: Beta
®
0708 (1008) - 0220 (0420) SS liquid end
Pos. Description Type 0708
(1008)
Type 0413
(0713)
Type 0220
(0420)
1 Connector kit 8 mm SS 817204 817204 817204
3 4 Valve balls 404281 404281 404281
5 Discharge valve compl. 8 mm SST 809444 809444 809444
6 Diaphragm 1000248 1000249 1000250
7 Safety diaphragm 1027414 1027414 1027414
8 Suction valve compl. 8 mm SST 809445 809445 809445
Spring (pos. 2)
is a special accessory. The positions listed are included in the spare parts kit. We reserve the
right to make technical modifications.
