ProMinent Sigma/ 2 Control S2Cb - Cable Assignment for Output and Relay

To pin VDE cable Contact Relay
1 yellow "+" Current
output
4 green "-" Current
output
3 white NC (normally closed) or
NO (normally open)
Fault indi‐
cating /
pacing relay
2 brown C (common) Fault indi‐
cating /
pacing relay
Current output and fault indicating / pacing
relay (24 V)
P_SI_0044

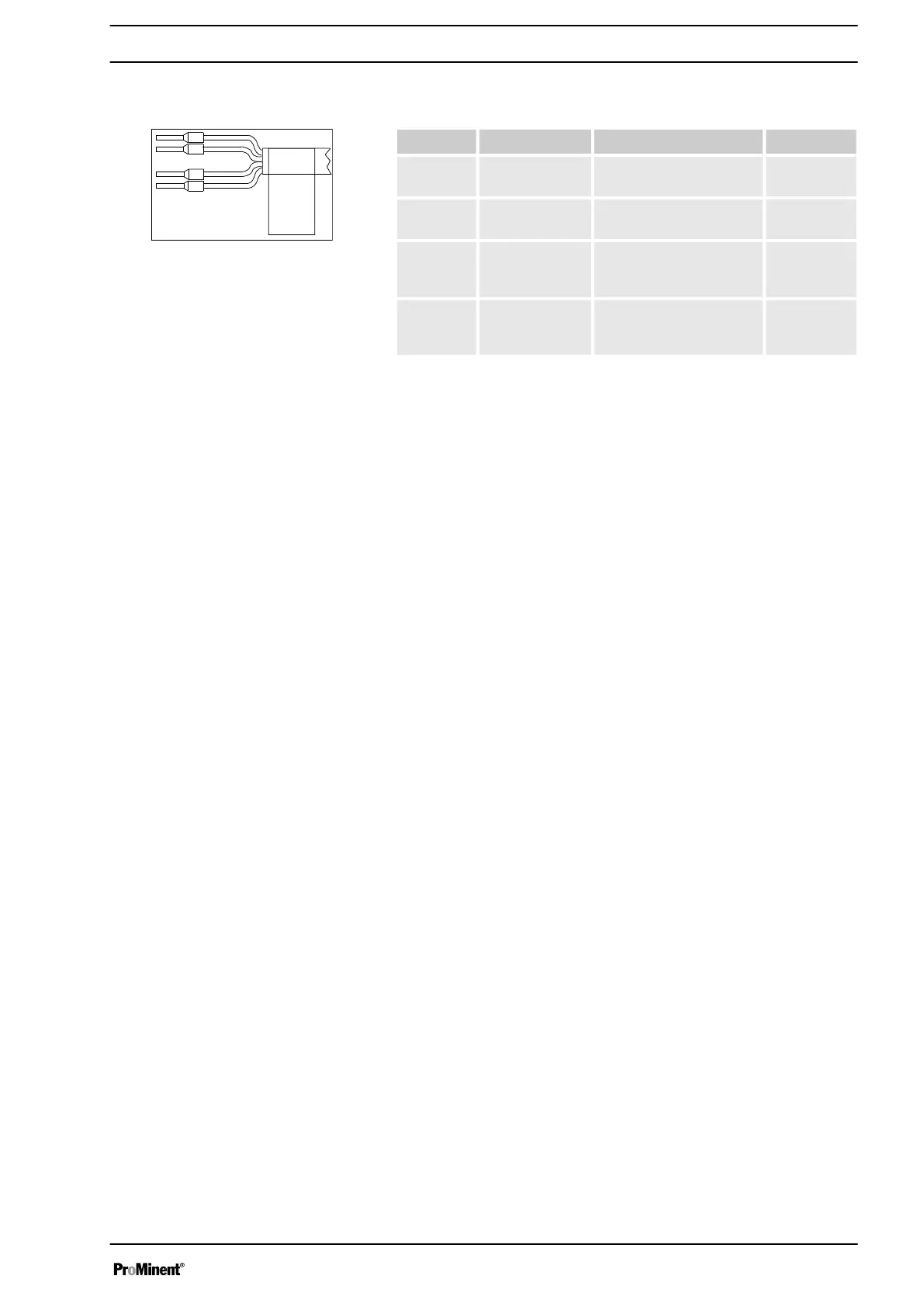

Fig. 25: Cable assignment
Installation
