Under menu option
„Analog error“
you can activate error processing for
processing type
„Curve“
. For current signals below 3.8 mA, an error mes‐
sage appears and the pump stops.
Extended

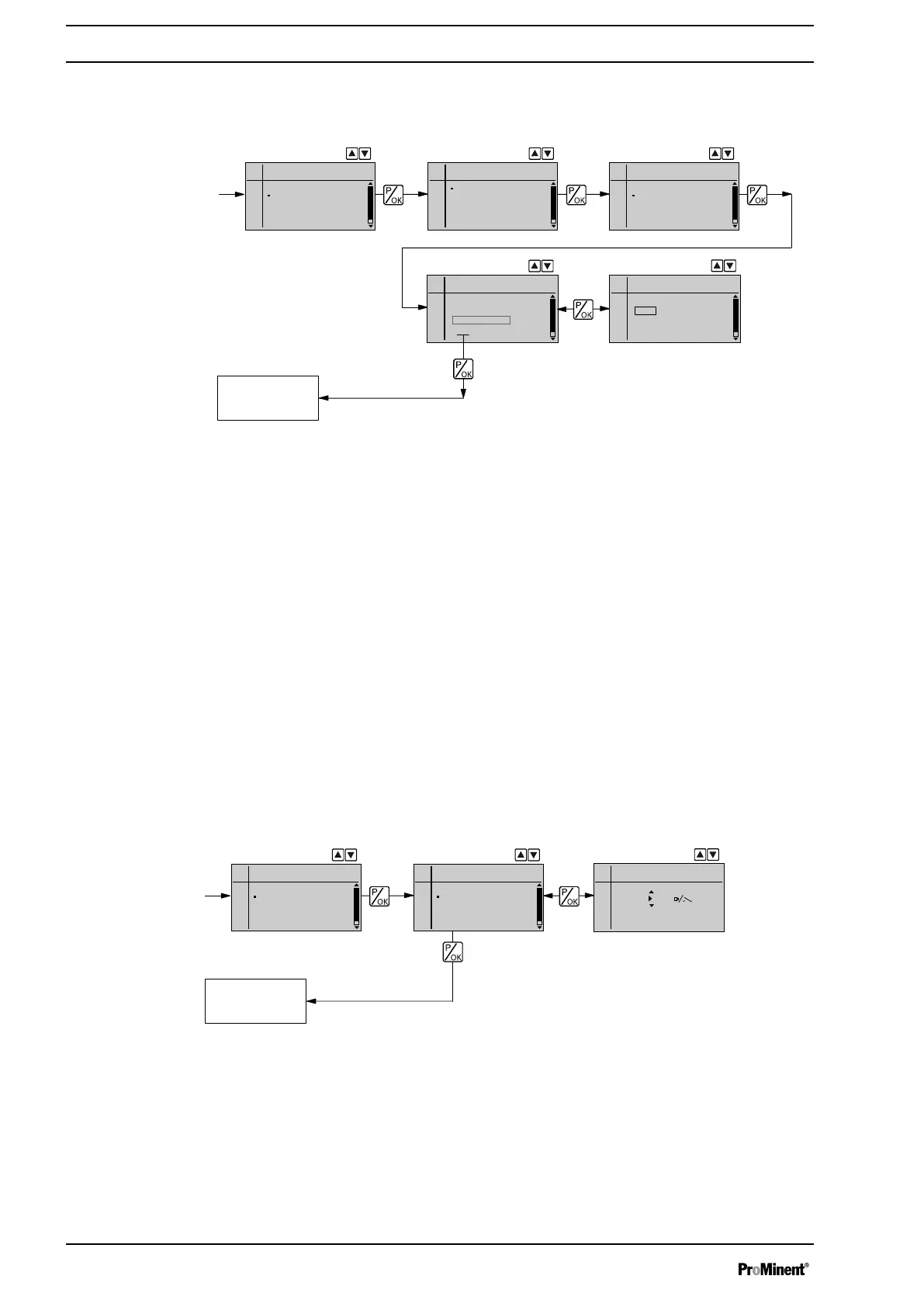

Curve type
Curve points
Analog error
End
Main menu
Mode
Settings
Service
Information
Language
Settings
Analog
Auxiliary freq.
Calibrate
Dosing
Relay
Analog
Standard
Extended
End
Analog error
Off
On
Continuous
display
8.6 Programmable function settings ("Settings" menu )
Setting menus are available in all operating modes in the menu "SET‐
TINGS" for the following programmable functions:
n Auxiliary frequency (menu
„AUX“
)
n Flow (menu
„FLOW“
) (only available if a dosing monitor is connected)
n Calibration (
„CALIBRATION“
menu)
n Metering (menu
„METERING“
)
n Metering monitor (
„METERING MONITOR“
menu) (only available if a
metering monitor is connected)
n Relay (menu
„RELAY“
) (only available if a relay is fitted)
n Analogue output (
„ANALOGUE OUTPUT“
menu) (only available if an
analogue output is connected)
n Diaphragm rupture (
„DIAPHRAGM RUPTURE“
menu) (only available
if a diaphragm rupture indicator is connected)
n System (menu
„SYSTEM“
)
8.6.1 “Auxiliary frequency” function settings (AUX menu)
Continuous
display
Main menu
Mode
Settings
Service
Information
Language
Settings
Batch
Auxiliary freq.
Calibrate
Dosing
Relay
Auxiliary freq.
0 70
The programmable function
„Auxiliary frequency“
facilitates the switchover
to an auxiliary stroke rate, which can be set in the
„Auxiliary freq.“
menu.
It can be activated via the "External control" terminal. If the auxiliary fre‐
quency is used, then the identifier “Aux” appears on the LCD screen.
This
„auxiliary frequency“
has priority over the stroke rate, which is speci‐
fied by the currently selected operating mode - see also the chapter "Func‐
tion description" - "Hierarchy of operating modes".
Error processing
Setting
52
To Next Page
