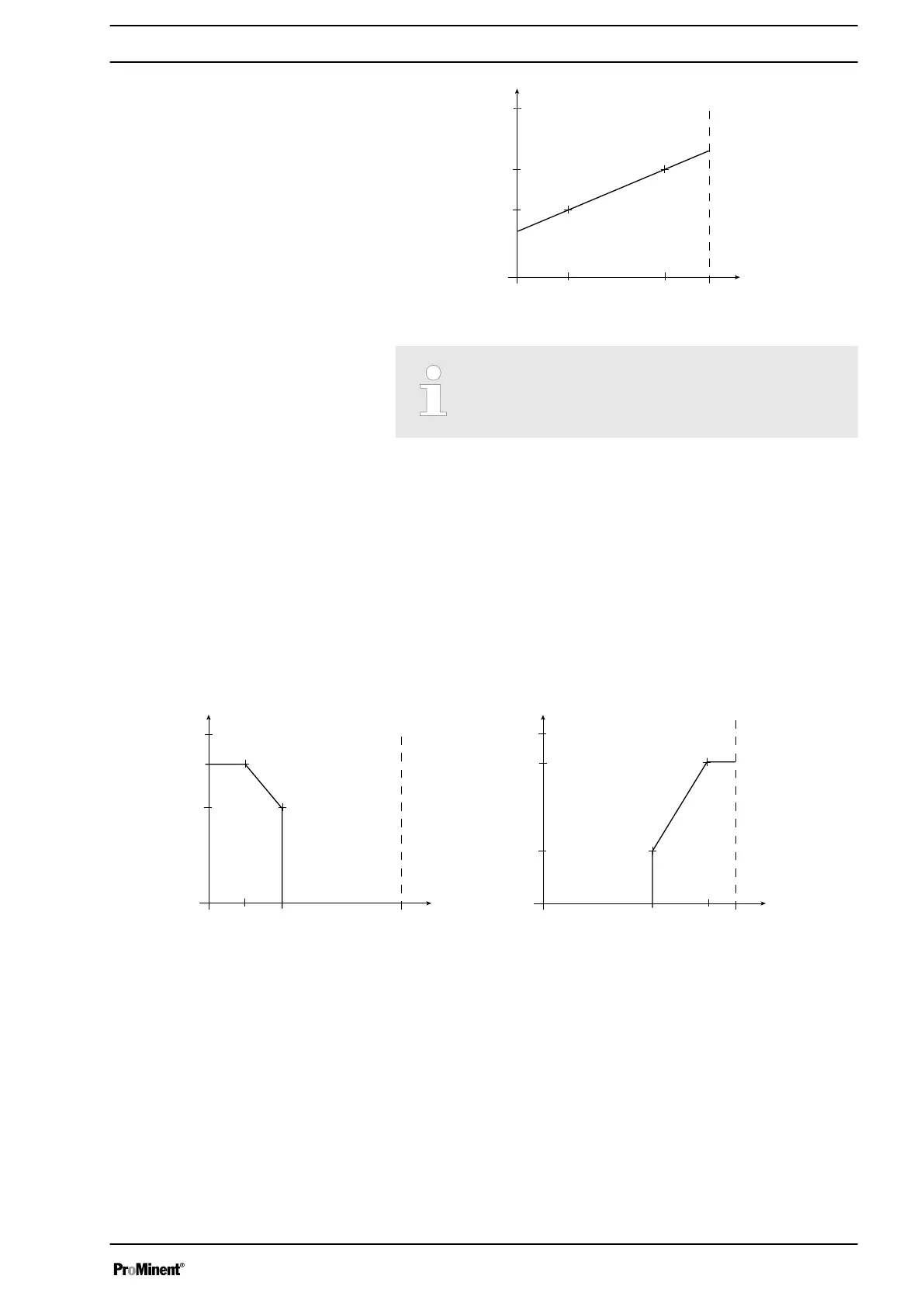

Fig. 28: Rate(frequency)-Current Diagram for Linear control

Plot a diagram similar to the one above – with values for

(I1, F1) and (I2, F2) – so that you can set the pump as

desired!

„Lower side band“

Using this type of processing, you can control a metering pump using the

current signal as shown in the diagram below.

However, you can also control two metering pumps for different feed

chemicals via a current signal (e.g. one acid pump and one alkali pump

using the signal of a pH sensor). To do this, connect the pumps electrically

in series.

The "Lower sideband" symbol appears in the LCD display. Below I1, the

pump works at a rate of F1 - above I2 it stops. Between I1 and I2 the

stroke rate varies between F1 and F2 in proportion to the signal current.

I [mA]

I 1 I 2

0 20

a) b)

Fmax

B0089

I [mA]

I 1

I 2

0 20

Fmax

Fig. 29: Frequency-current diagram for a) Lower side band, b) Upper side band

„Upper side band“

Using this processing type, you can control a metering pump using the

current signal as shown in the diagram above.

However, you can also control two metering pumps for different feed

chemicals via a current signal (e.g. one acid pump and one alkali pump

using the signal of a pH sensor). To do this, connect the pumps electrically

in series.

The "Upper sideband" symbol appears in the LCD display. Below I1, the

pump is stationary - above I2 the pump works at rate F2. Between I1 and

I2 the stroke rate varies between F1 and F2 in proportion to the signal cur‐

rent.

Setting
