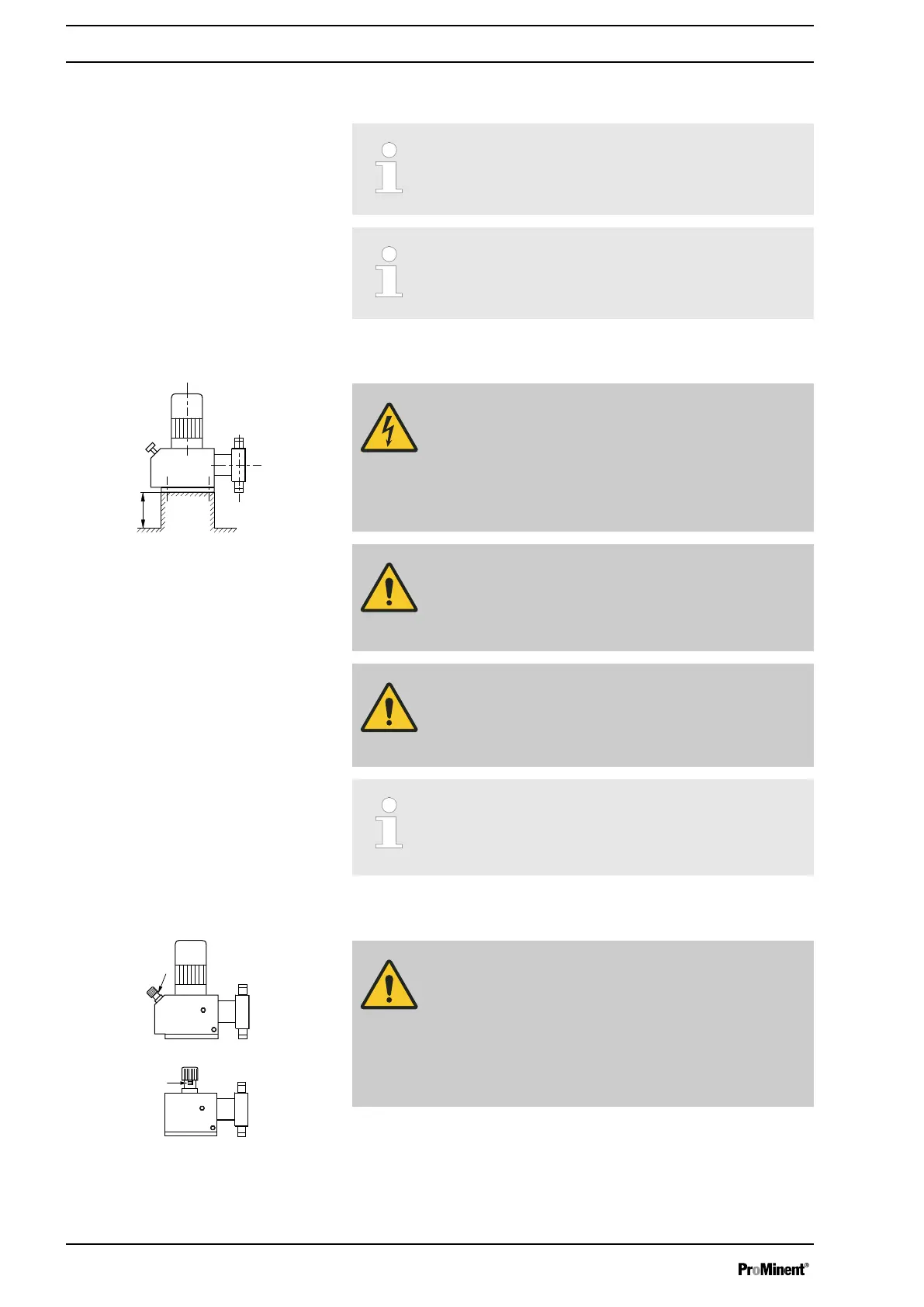

6 Assembly
Refer to the correct dimensional drawings on our web‐
site www.prominent.com for assistance.
Compare the dimensions on the dimension sheet with
those of the pump.
WARNING!
Danger of electric shock
If water or other electrically conducting liquids penetrate
into the drive housing, in any other manner than via the
pump's suction connection, an electric shock may occur.
– Position the pump so that it cannot be flooded.
WARNING!
The pump can break through the base or slide off it
– Ensure that the base is horizontal, flat and perma‐
nently load-bearing.
CAUTION!
If your Sigma S2Cb is to be installed in place of a Sigma
S2Ca, a base plate order no. 1044841 is possibly
needed to lift the liquid end.
Capacity too low
Vibrations can disturb the liquid end valves.
–
Do not allow the base to vibrate.
CAUTION!
Danger from incorrectly operated or inadequately main‐
tained pumps
Danger can arise from a poorly accessible pump due to
incorrect operation and poor maintenance.
– Ensure that the pump is accessible at all times.
–
Adhere to the maintenance intervals.
Position the pump so that control elements, such as the stroke length
adjustment knob, the indicating dial A or the oil inspection window, are
accessible.
In so doing, ensure there is enough space to carry out an oil change (vent
screws, oil drain plugs, oil trough ...).
Base
Fig. 10
Space requirement
Fig. 11
Assembly
24
