Promise Technology VTrak J310S User Manual

VTrak J610s, J310s Product Manual
10

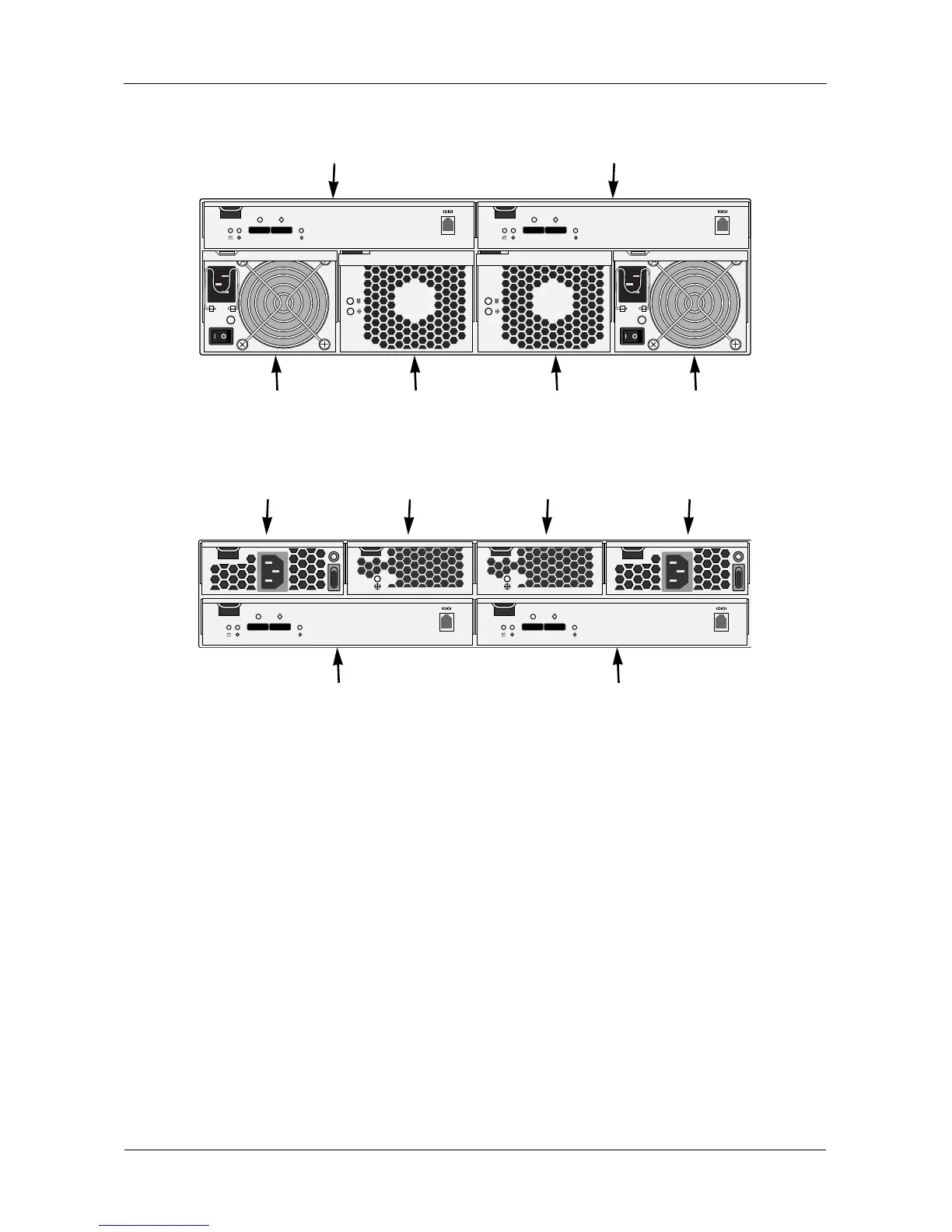

Figure 1. VTrak J610s rear view
Figure 2. VTrak J310s rear view
Some VTraks ship with a single I/O module and a blank unit installed in the place
of the second I/O module. You can upgrade your VTrak by installing a second I/O
module. See page 53.
Some VTraks ship with a single power supply and an auxiliary cooling unit
installed in the place of the second power supply to provide a comparable level of
air circulation inside the enclosure.
115200
8 N 1
115200
8 N 1
Cooling Unit 1
Power Supply 1
Power Supply 2
Cooling Unit 2
I/O module 2I/O module 1
O
I
O
I
115200
8 N 1
115200
8 N 1
Cooling Unit 1
Power Supply 1
Power Supply 2
I/O module 2
Cooling Unit 2
I/O module 1
