Drive Status Indicators
After a few moments the Power/Activity should display Green.
If there is no disk drive in the carrier, the Disk Status LED and the Power/Activity
LED will remain dark.

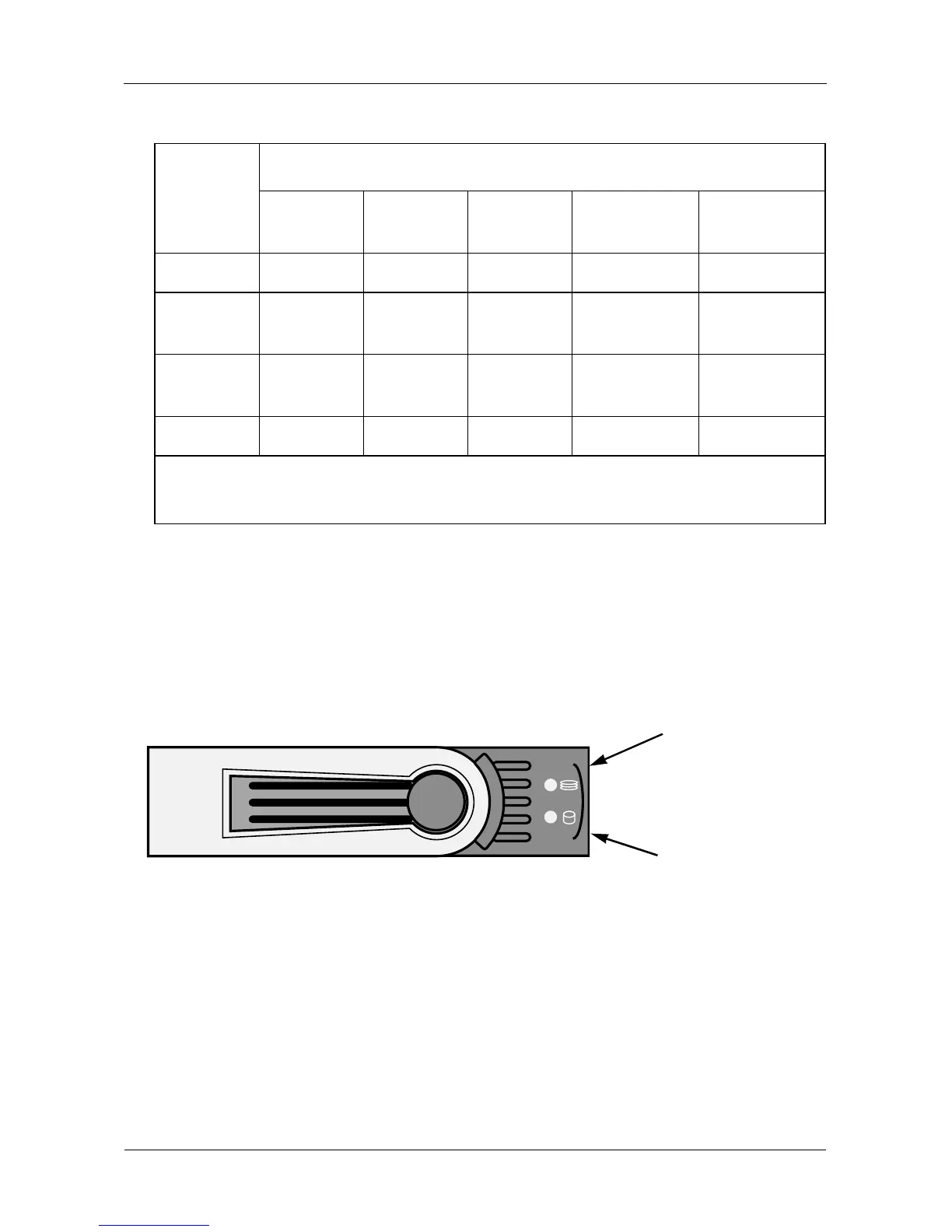

Figure 2. VTrak disk carrier LEDs
The VTrak spins up the disk drives sequentially in order to equalize power draw
during start-up. After a few moments the Power/Activity and Disk Status LEDs
should display green.
If you have SATA disk drives installed without an AAMUX adapter (see page 16),
the Power/Activity LED behavior depends on the specific disk drive.
The Disk Status LED behavior depends on your HBA or RAID controller. See the
table below.
LEDs
State
Dark
Steady
Green
Flashing
Green
Amber Red
Power System Off Normal
FRU* System Off Normal
1 CU and/or
1 PSU failed
2 CU and/or
2 PSU failed
I/O Module
1 or 2
No Activity Activity
Heartbeat System Off Normal**
* Field Replacement Unit: Cooling Unit (CU) or Power Supply Unit (PSU)
** Blinks intermittently.
Disk Status
Power/Activity
