Chapter 2: Installation
11
Mounting VTrak J610s in a Rack
The J610s subsystem installs to the rack using the supplied mounting rails. You
can also use your existing rails.

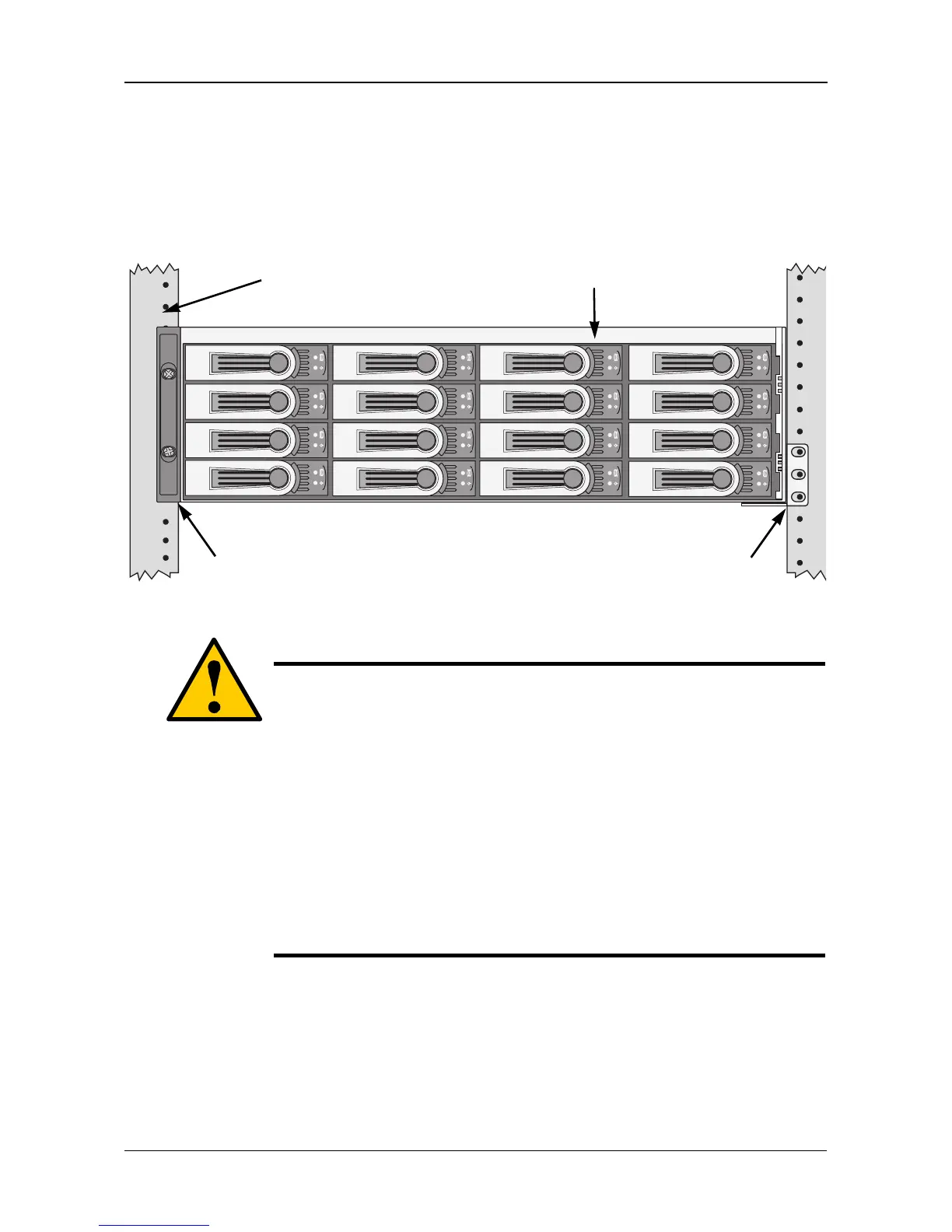

Figure 3. VTrak J610s mounted in a rack with the supplied rails
To install the J610s subsystem into a rack with the supplied mounting rails:
1. Check the fit of the mounting rails in your rack system. See Figure 4.
2. Adjust the length of the mounting rails as needed.
3. Attach the mounting rail assemblies to the outside of the rack posts, using
the attaching screws from your rack system.
Be sure the support is on the bottom facing inward.
Cautions
• At least two persons are required to safely lift, place, and
attach the VTrak subsystem into a rack system.
• Do not lift or move the VTrak subsystem by the handles,
power supplies or the controller units. Hold the subsystem
itself.
• Do not install the VTrak subsystem into a rack without rails to
support the subsystem.
• Only a qualified electrician who is familiar with the installation
procedure should mount and install the VTrak subsystem.
• Be sure all switches are OFF before installing the VTrak
subsystem or exchanging components.
Vertical Rack Post VTrak J610s
Mounting rails (included)
mount outside the rack post
Handles mount
outside the rack post
To Next Page
