Setting Up Data Cable Connections
VTraks provide Direct Attached Storage (DAS) support to the Host PC.

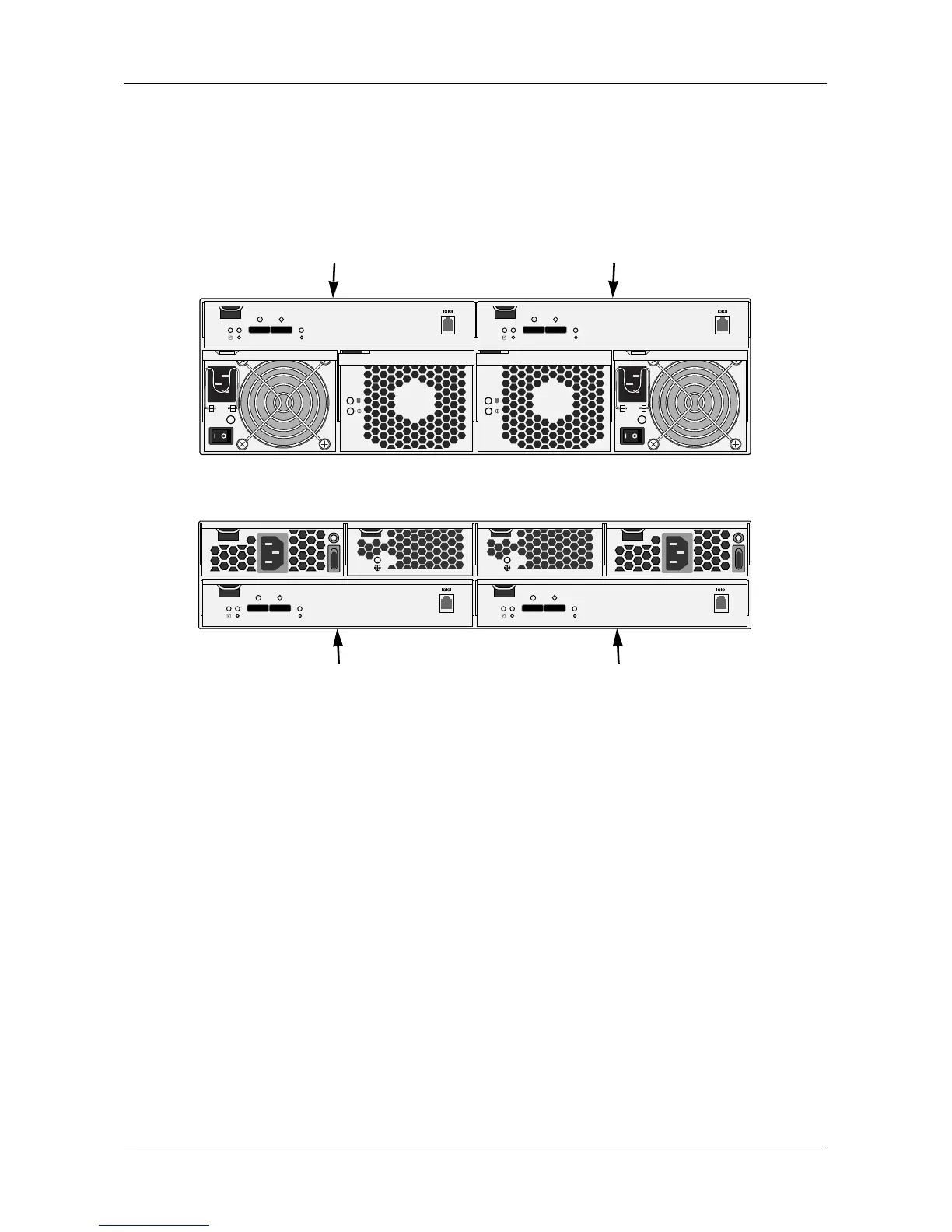

Figure 13. VTrak J610s has one or two I/O modules
Figure 14.VTrak J310s has one or two I/O modules
There can be one or two Input Output Modules (I/O modules) on the VTrak.
• If your VTrak has two I/O modules, I/O module 1 (on the left) is the default
primary.
• If your VTrak has only one I/O module, that I/O module is the default primary.
Under SAS specifications, both I/O modules are active at the same time. The
terms primary and secondary are for enclosure management purposes only. To
verify which I/O module is the default primary, see “Enclosure Command” on
page 36.
115200
8 N 1
115200
8 N 1
I/O module 2
I/O module 1
(default primary)
O
I
O
I
115200
8 N 1
115200
8 N 1
I/O module 2
I/O module 1
(default primary)
