VTrak J610s, J310s Product Manual
22
Basic DAS Connection

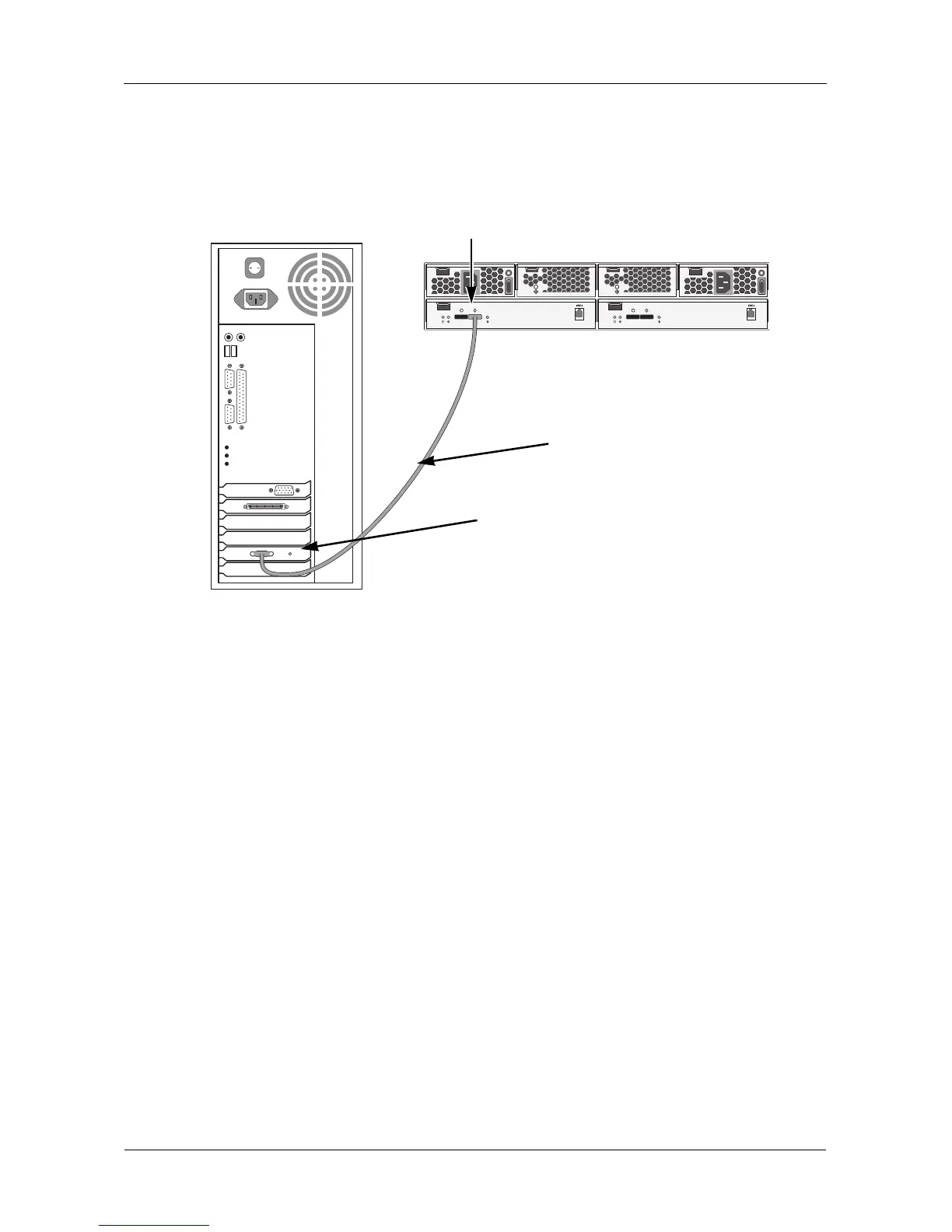

Figure 16. An example of a basic DAS connection between one Host PC
and one VTrak J310s unit. The J610s is similar
The arrangement above is the minimum DAS system with a single SAS HBA
card in the Host PC. Connect the SAS HBA card to either port of the I/O module
on the VTrak.
Use a SFF-8088 4X to 4X external SAS cable (supplied with the VTrak).
Because the Host SAS HBA card is an end device, you can connect it to either
SAS data port on the VTrak.
O
I
O
I
115200
8 N 1
115200
8 N 1
PC
SAS HBA Card
VTrak J310s
Connect to either data port
SFF-8088 external
4X to 4X SAS cable
