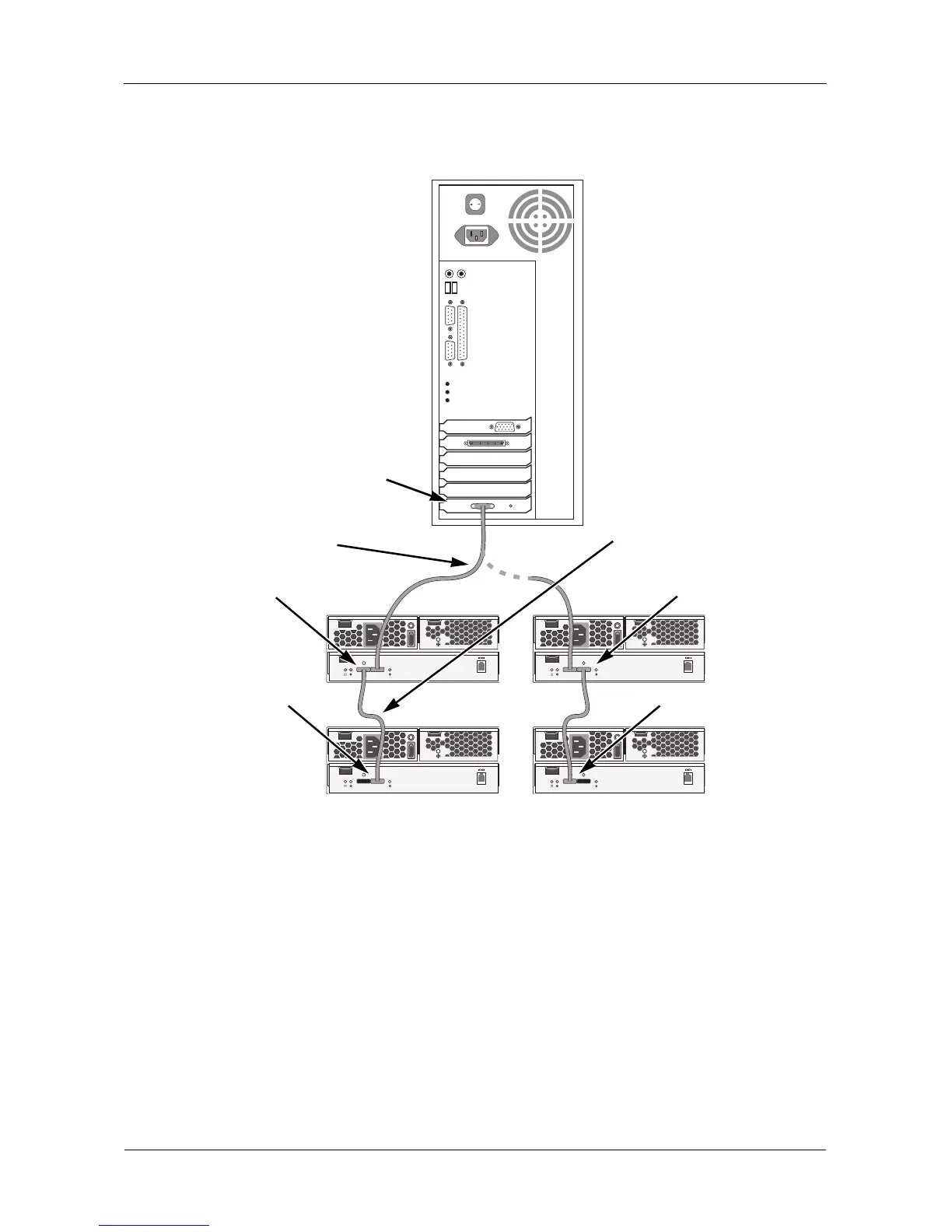

Figure 17. Two examples of cascaded DAS connections between one Host
PC and two VTrak J310s units. The J610s is similar
O
I
115200
8 N 1
O
I
115200
8 N 1
O
I
115200
8 N 1
O
I
115200
8 N 1
CN2
SAS HBA Card
PC
CN2
CN1
CN1
SFF-8088 external
4X to 4X SAS cable
SFF-8088 to SFF-8088
SAS cable
Cascade Configuration 1 Cascade Configuration 2
