User Manual
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany

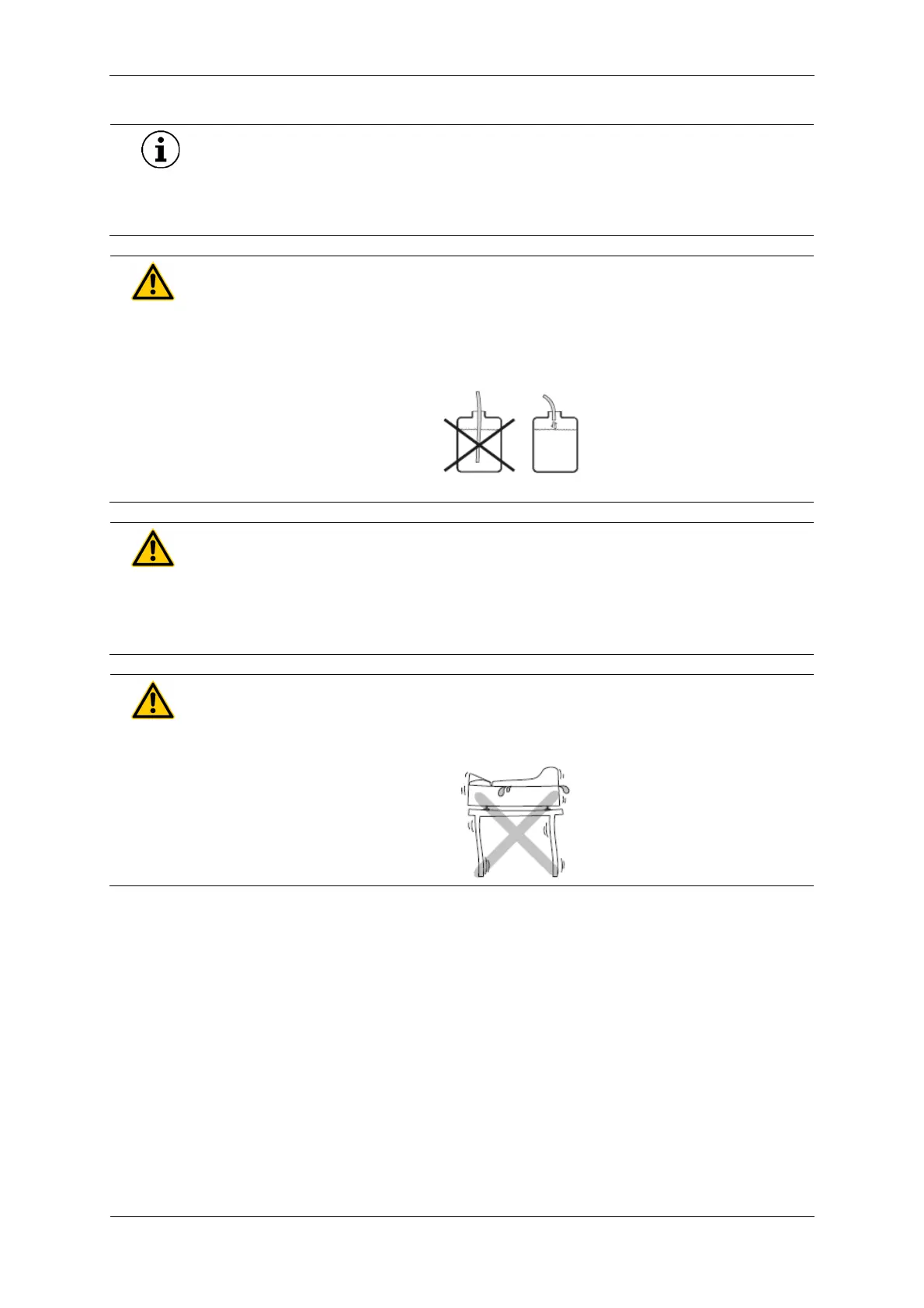

3.5 Connecting the processor
NOTE
Inform yourself of the local water board regulat
ions regarding drainage. These
regulations may differ from information in this manual, but they should be complied
with.
WARNING!
Danger of Overflow!
Use the included cable binders (accessory bag) to secure the hoses. Fix all
hose ends which guide into syphon or collecting container, so that they do
not drop into the liquid.
WARNING!
The hose piping should be straight (without the hoses going up and down)
with a constant fall. The hoses should be as short as possible and without
bends and kinks. This is very important for the water overflow hose. Bad
piping work will cause the machine to overflow!
WARNING!
If the machine is installed table-top, ensure that the table is stable enough
and does not wobble.
3.5.1 Water connection
Water connection: Fit water-inlet hose (grey) at the rear of the machine and connect to the prepared
fresh water supply.
All other hoses (see diagram): Connect the enclosed hoses according to colour system to backside of
machine. Put hose clip (enclosed in accessory bag) over hose end, before attaching to connection.
Warm up hose end (with hot water or lighter) and push onto the respective connection. Finally push
clip over hose and connection.
Cut hoses to required length. Integrate the stop cocks into the drainage hoses in such a position, that
they are easy to reach.
Connect the suction pipes to the hose ends for the replenishment tanks using hose clips. Put suction
pipes through cover opening into respective replenishment tanks and snap them in.
