4 Control elements and device displays

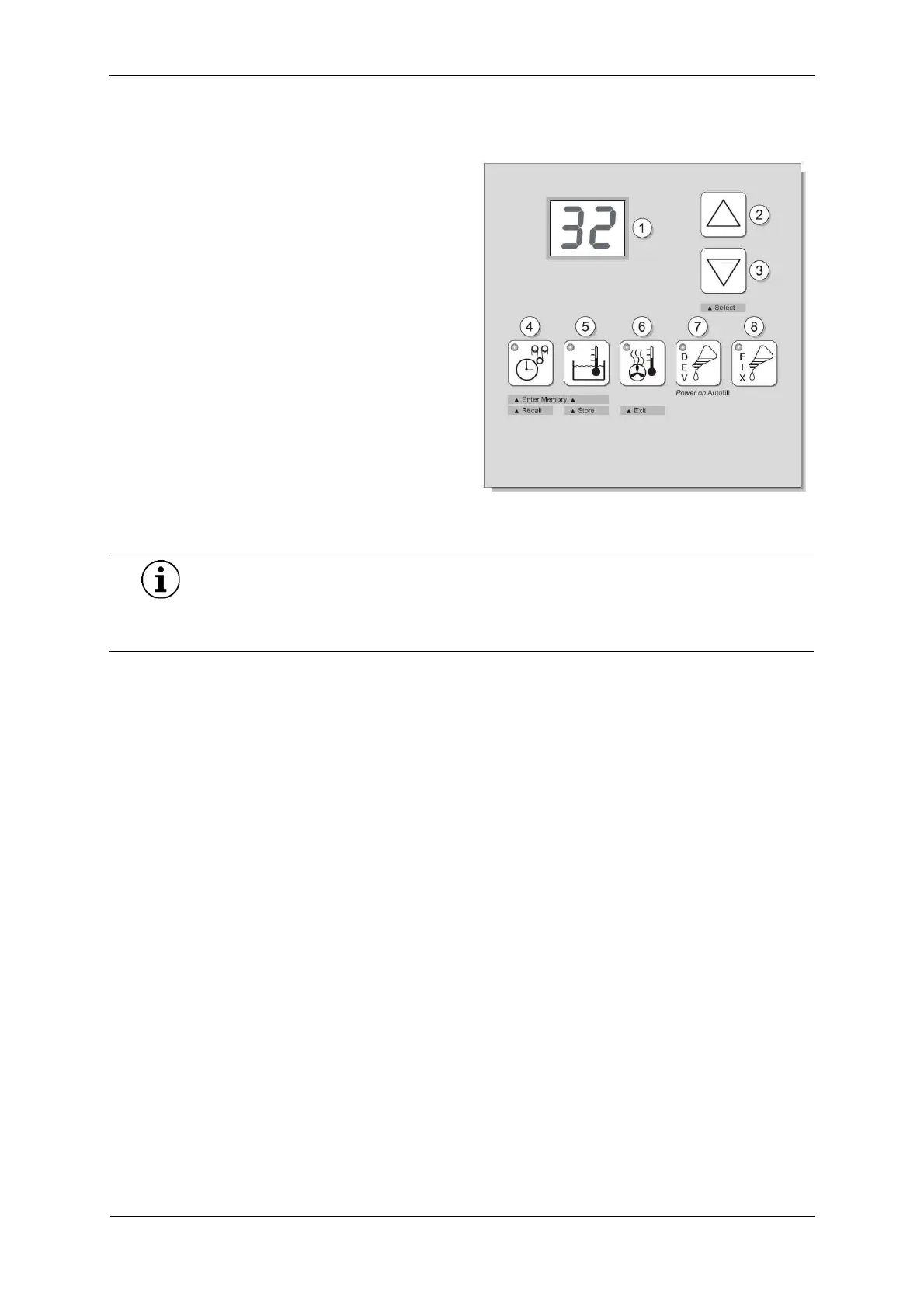

4.1.1 Control elements and device displays standard
1 Display working parameters
2 Arrow button „Up“ = increase parameter value
3 Arrow button „Down“ = decrease parameter
value
Mode Button
4 Processing time in minutes
5 Developer temperature in °C
6 Dryer temperature in °C
7 Developer replenishment time in seconds
8 Fixer replenishment time in seconds
NOTE
Safety function stops film transportation when cover is removed.
Therefore keep cover placed on the machine when processing films.
