User Manual
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
3.3 Installation of processor
Unpack and assembly base table/base cabinet respectively according enclosed manual.
Unpack processor and mount onto base table/base cabinet respectively according to manual. Remove
the transport securing bars of the roller-racks. Fit the gear and dryer plates to the water/dryer-rack.

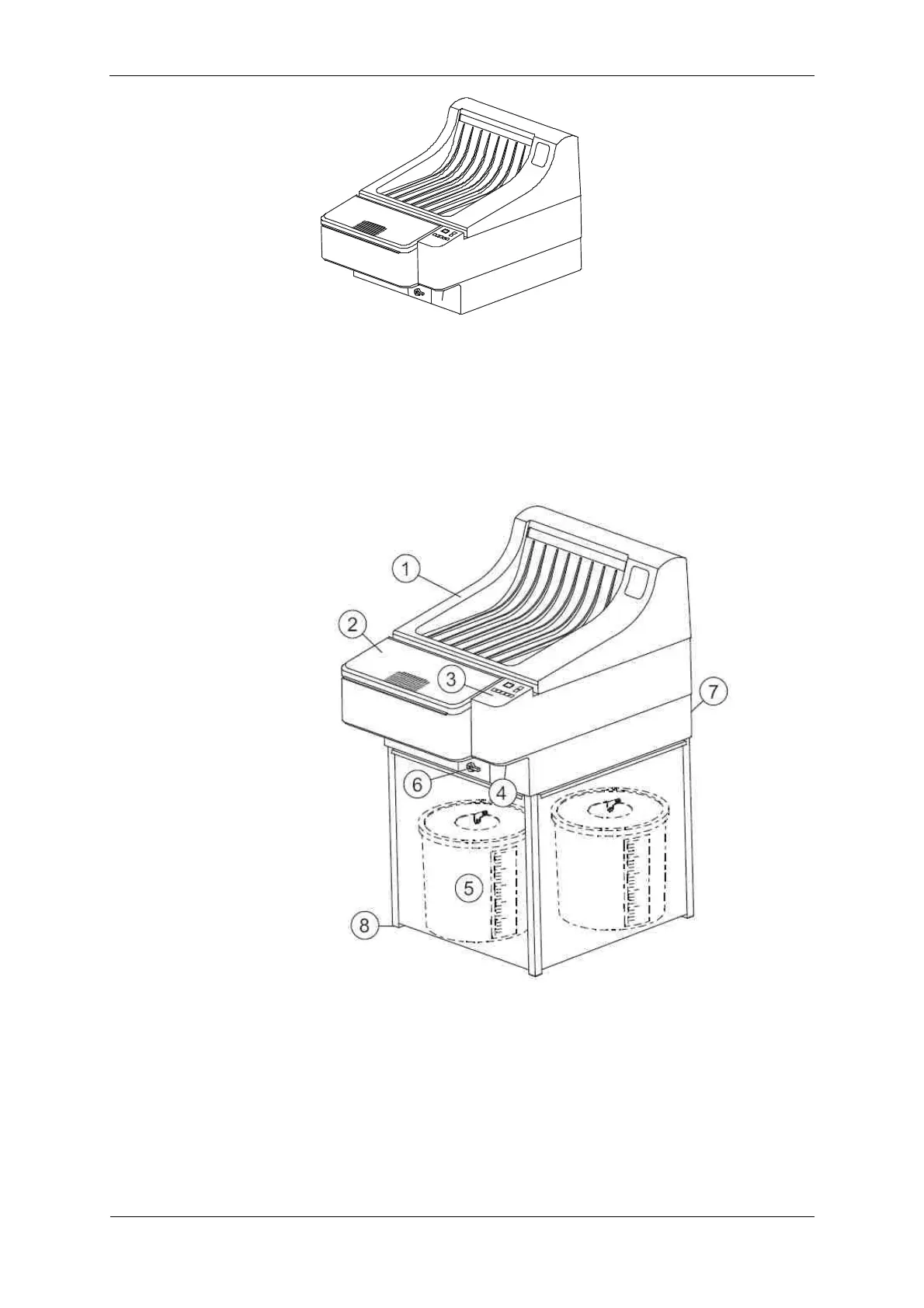

1 Machine cover
2 Light protection
cover on film feed
3 Control panel
4 Power switch an
main fuses
5 Replenishment
tanks
6 Drain cock for water
tank
7 Connection for
freshwater,
replenishment and
drainage respective
overflow
8 Levelling feet
Depending on model type
the COMPACT 2 has either
an open stand or like shown
here a closed cabinet.
3.4 Levelling of processor
Levelling of machine: Place machine in working position and level with spirit level. To do this, take off
machine cover and place spirit level across the two intermediary rinsing channels. Level machine by
adjusting the feet on the table legs. Accurate levelling is essential to avoid possible overflows at a later
point in time.
Connect power cord: Lay power cord so that it will not be tripped over and not be bent or frayed. If an
extension cord is required use only cords that have been approved for usage with respective current.
