Installation
WARNING!
Electrical connections should be carried out according to regulations by an
electrician.
3.1 Requirements for installation
• Fresh water connection: Stop cock with 3/4" outer-thread diameter (washing machine
connection), Water pressure 2 - 10 bar (29 - 145 psi).
• Drainage connection: Plastic tube - inner diameter 50 mm (2”) or larger. A ventilated syphon
which serves as odour preventor should be included in the planning. The drainage tubes
should be installed with a fall of minimum 5 %. Local Water Authorities regulations should be
complied with.
• Electrical connection: Fused wall socket with earth connection according to electrical data (see
technical specifications, see 10). It is also required to install an earth-leakage switch (with 25 A /
30 mA nominal error current).
3.2 Transport
Due to the weight and dimensions of the film processor COMPACT 2
should always be carried by two

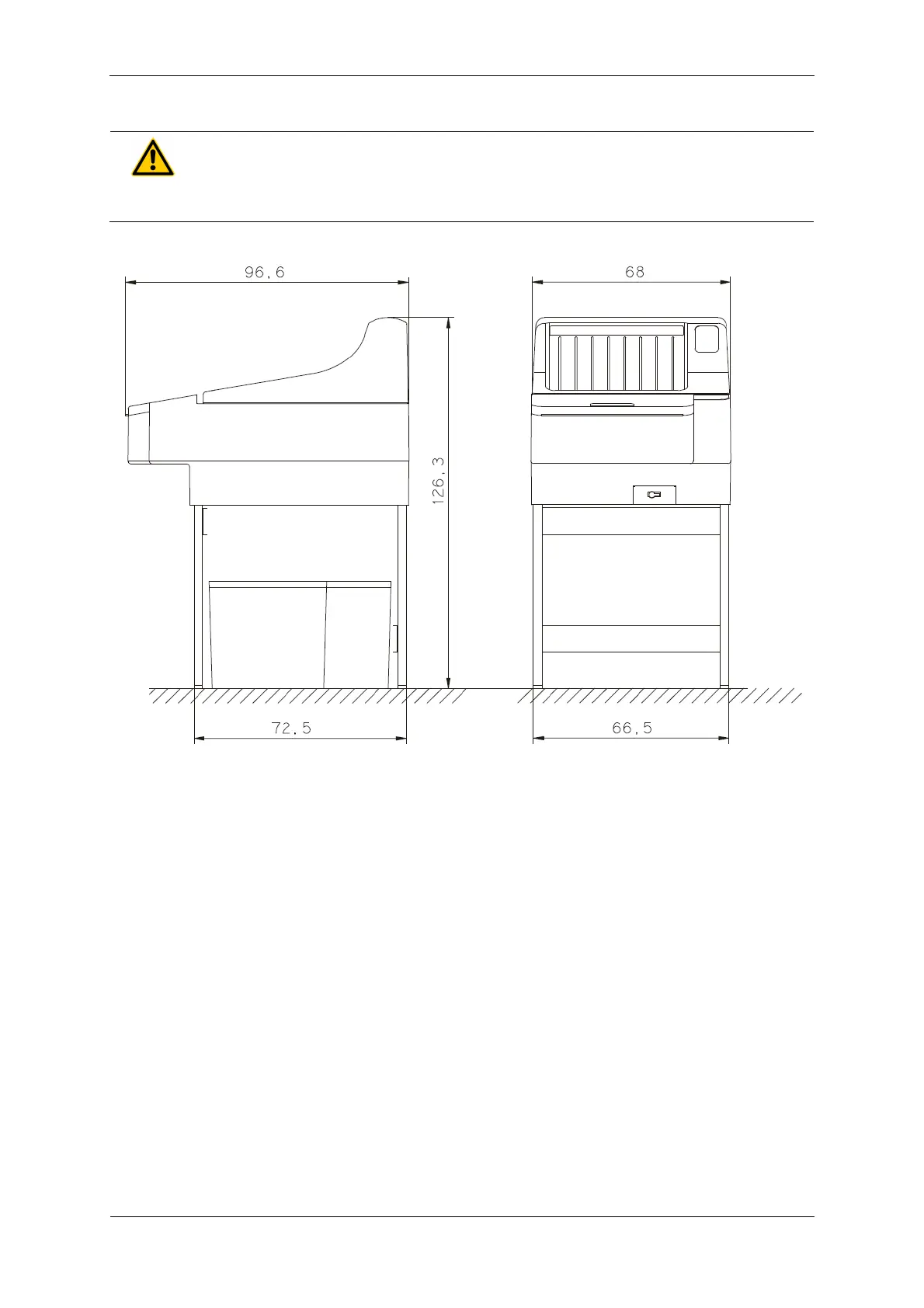

persons. To do so, hold the machine at the sides on the bottom (see figure). While putting the machine
down, watch the position of the levelling feet to prevent damaging these.
