Protec COMPACT 2 NDT - Hose Connection

COMPACT 2 NDT
User Manual
519
0
-
0
-
0002
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
18
von
65

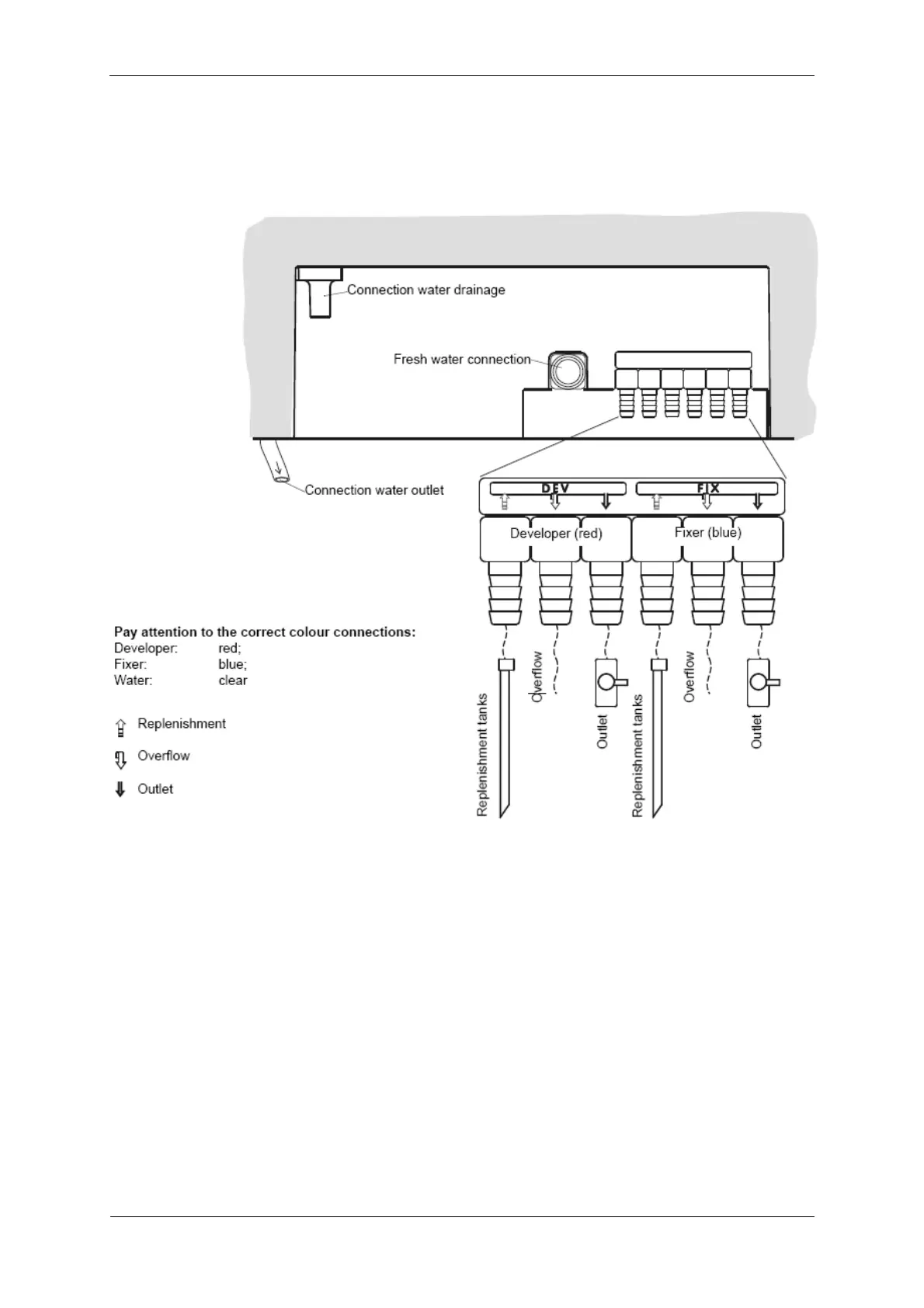

The overflow and drainage hoses from the developer and fixer should be guided into their respective
collecting containers.
The overflow and the drainage of the water can.
3.5.2 Hose Connection
