8.2 Tips and Tricks
8.2.1 Removal of control PCB
To reach the screws of the operating panel module remove the film covering the keyboard in the front
area by about 20mm (lift up).

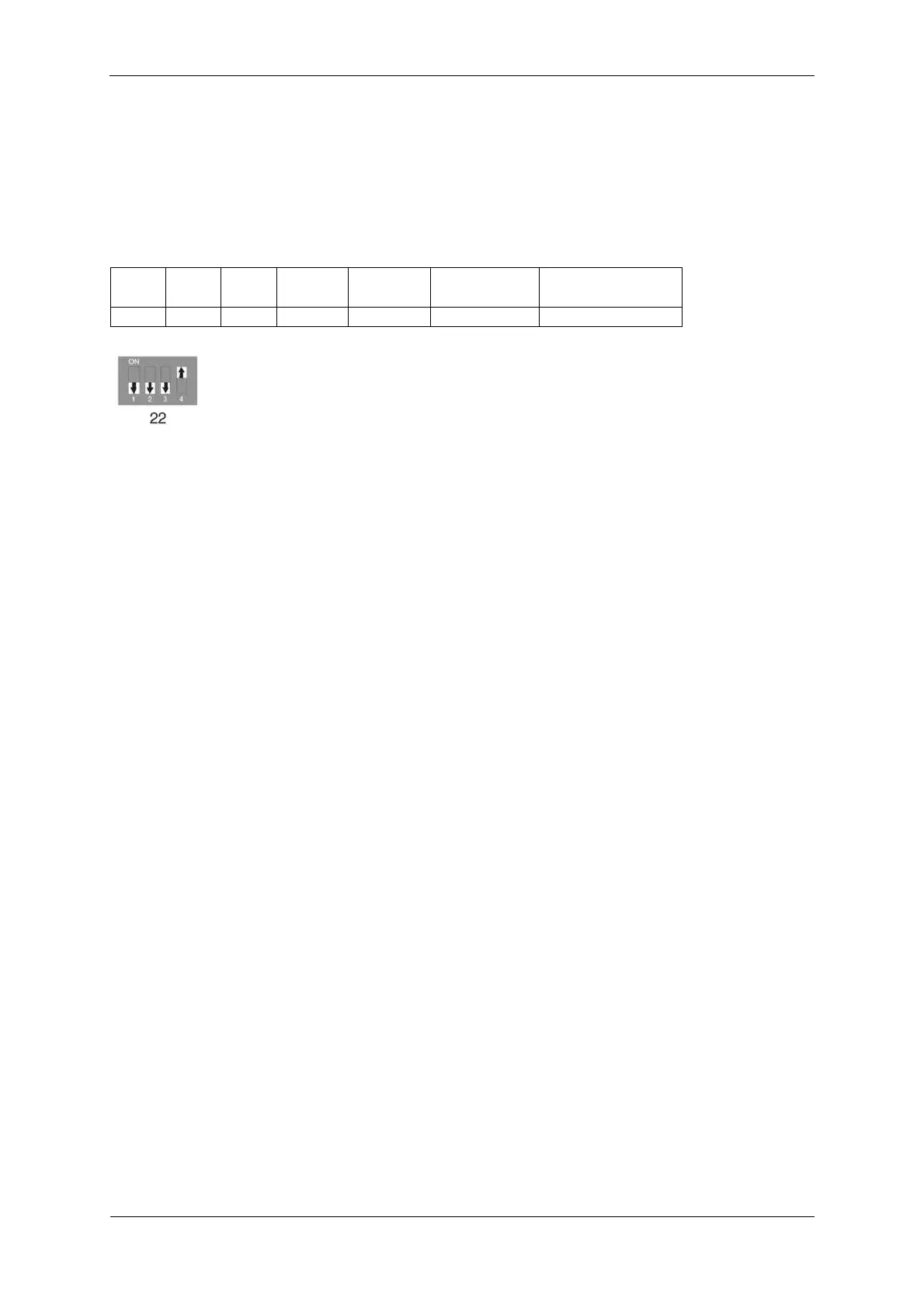

8.2.2 Adjusting the software – sub-versions
Before installing the power control unit, set the software sub-version at DIP switch on the controller.
SW1
SW2
SW3
SW4
Variant
Motor (via
SW1)
Software sub
-
versions
OFF
OFF
OFF
ON
Standard
X
22
8.2.3 Stop start-cycle
The start cycle (after switching the machine on) can be manually interrupted. To stop start-cycle, press
both arrow-buttons (2+3) simultaneously. The start-cycle may only be interrupted for service purposes.
8.2.4 Display of machine information
When during the start-up cycle one of the arrow-buttons is pressed the various machine information
will be displayed.
Arrow button “Up”: At the beginning for three seconds the machine type (C2) and then for five seconds
the software version will be displayed.
