TRIGGER
MODE This key toggles between continuous (CONT) or TRIGGERED
measurements .
TRIG When TRIGGER mode is selected, measurements are initiated when this
key is pressed or by the handler or computer interfaces. The TRIG LED will flash
when this mode is enabled.
Rear Panel Components

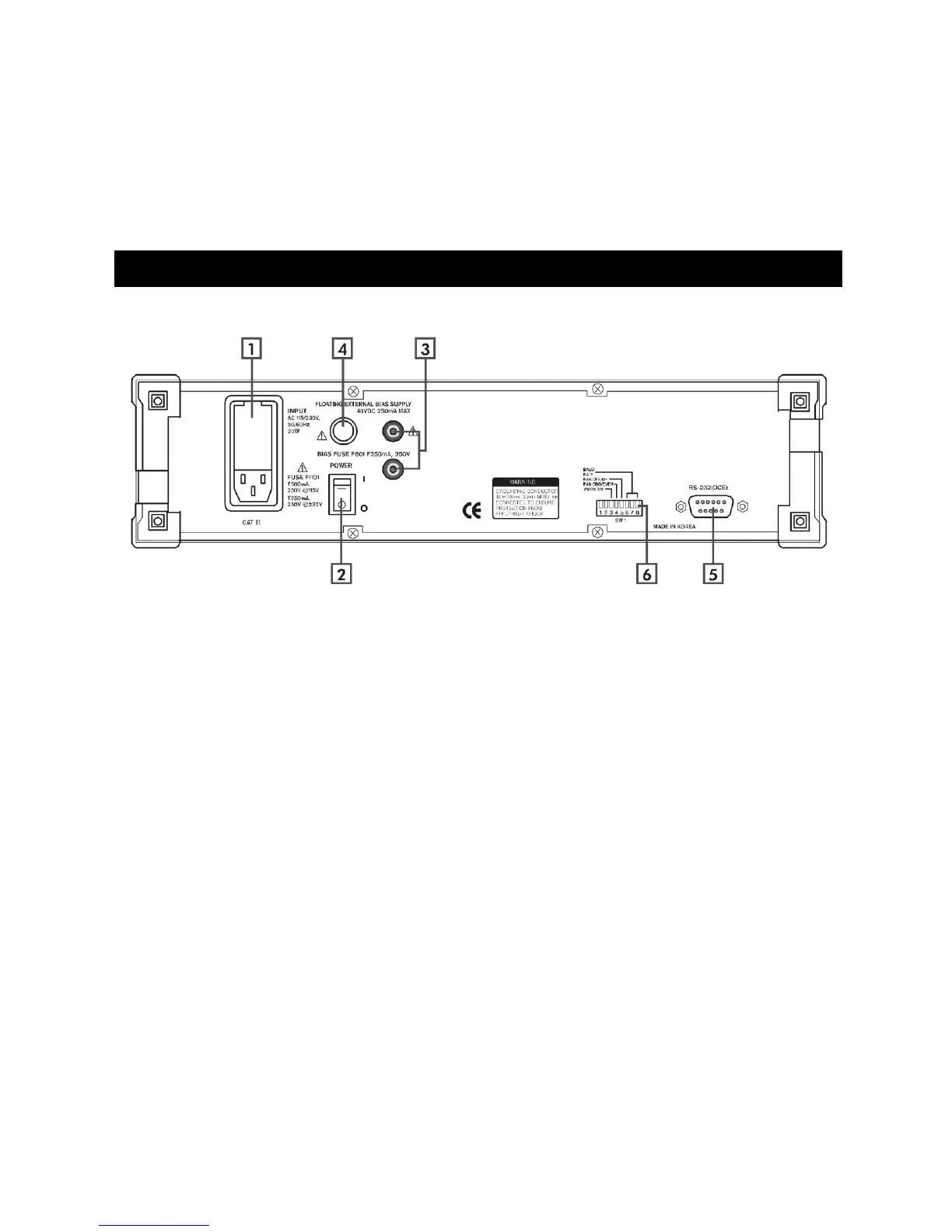

The rear panel and its controls and connections are shown in the following illustration:
[1] AC POWER CONNECTOR The AC power cord is inserted into this connector. The
fuse and line voltage selector are located in the connector housing.
[2] POWER SWITCH Turns the meter on and off.
[3] EXTERNAL BIAS INPUT Two banana plugs are used to input an external bias
voltage. The bias supply voltage must be floating and well filtered. Neither input
connector can be referenced to ground.
[4] EXTERNAL BIAS FUSE Protects external bias circuit from currents greater than 250
mA.
[5] RS232 DB25 This connector allows the meter to communicate as a DCE (data
communications equipment, e. g. a modem) to a DTE (data terminal equipment, e.g.,
a computer) using the RS-232C protocol. For further information, refer to the
material on remote programming in the Reference Manual.
[6] SW1 The switches set the RS232C protocol parameters. The Baud rate, word
length and parity may be set.
