Multipoint and Quickbridge - Hardware Installation Guide 29

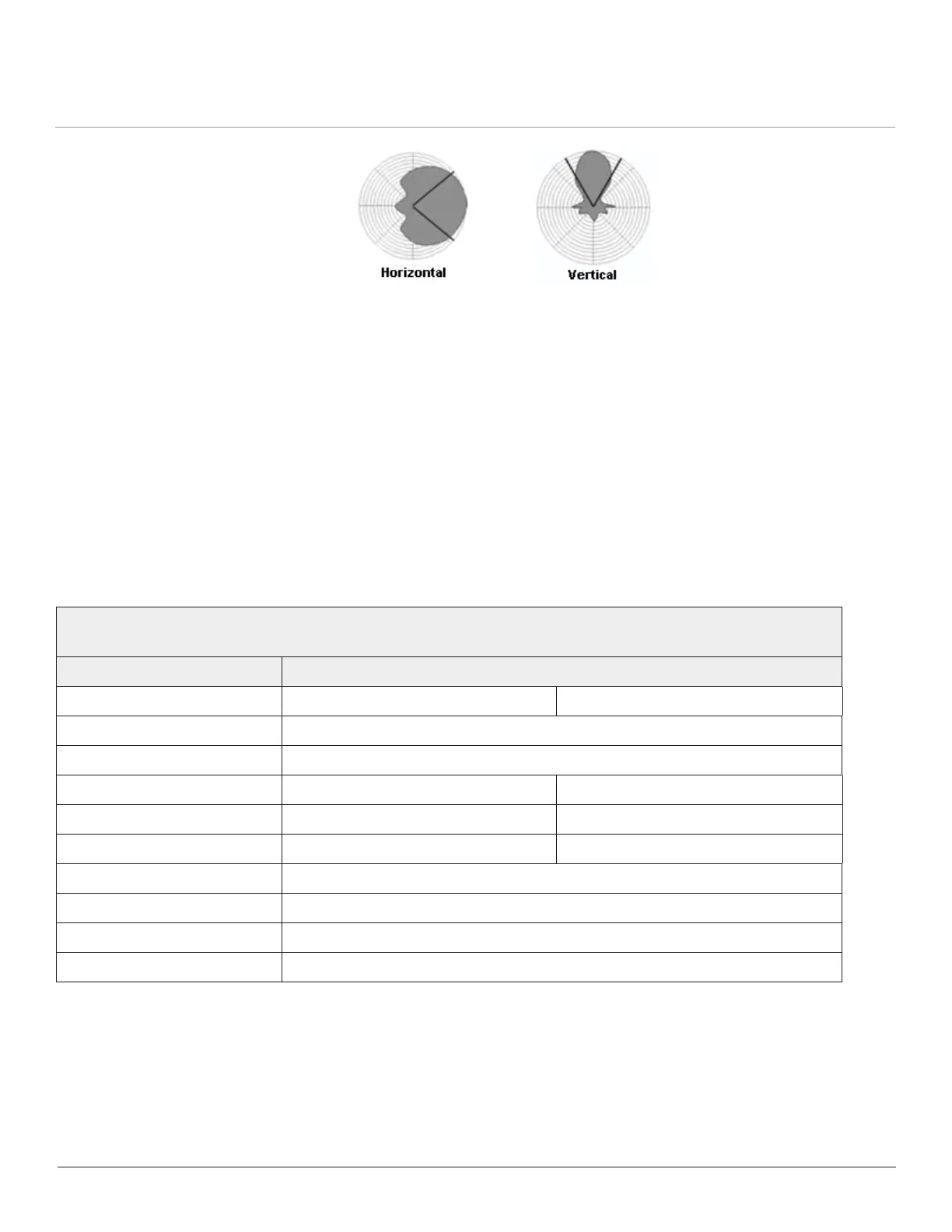

Figure 7-2 Sector Antenna Coverage
7.3 Integrated Antenna Specifications
This section illustrates the technical specifications of the following:
• MP-1015-CPE
• MP-1025-CPE
• MP-1035-CPE
• MP-1025-BS3
• QB-1015-LNK (2 x QB-1015-EPR)
• QB-1025-LNK (2 x QB-1025-EPR)
• QB-1035-LNK (2 x QB-1035-EPR)
Electrical Specification
Products: MP-1015-CPE, MP-1025-CPE, MP-1035-CPE, MP-1015-BS3,
MP-1025-BS3, QB-1015-LNK, QB-1025-LNK, QB-1035-LNK
Feature Specification
Vertical Polarization Horizontal Polarization
Frequency Band 4940 ~ 4990 MHz / 5150 ~ 5875 MHz
Gain 12~13 dBi / 15~16 dBi
Azimuth Half Power Beam Width 40
o
/ 31
o
– 38
o
36
o
/ 30
o
– 34
o
Elevation Half Power Beam Width 18
o
/ 14
o
- 16
o
20
o
/ 14
o
- 17
o
Sidelobes Level 12 dB (Min) 10 dB (Min)
Polarization Dual, Vertical and Horizontal
Isolation > 30 dB typl.
VSWR < 2.5:1 (Max)
Lightning Protection DC Grounded

Proxim Edge MP-1015-CPE Specifications
