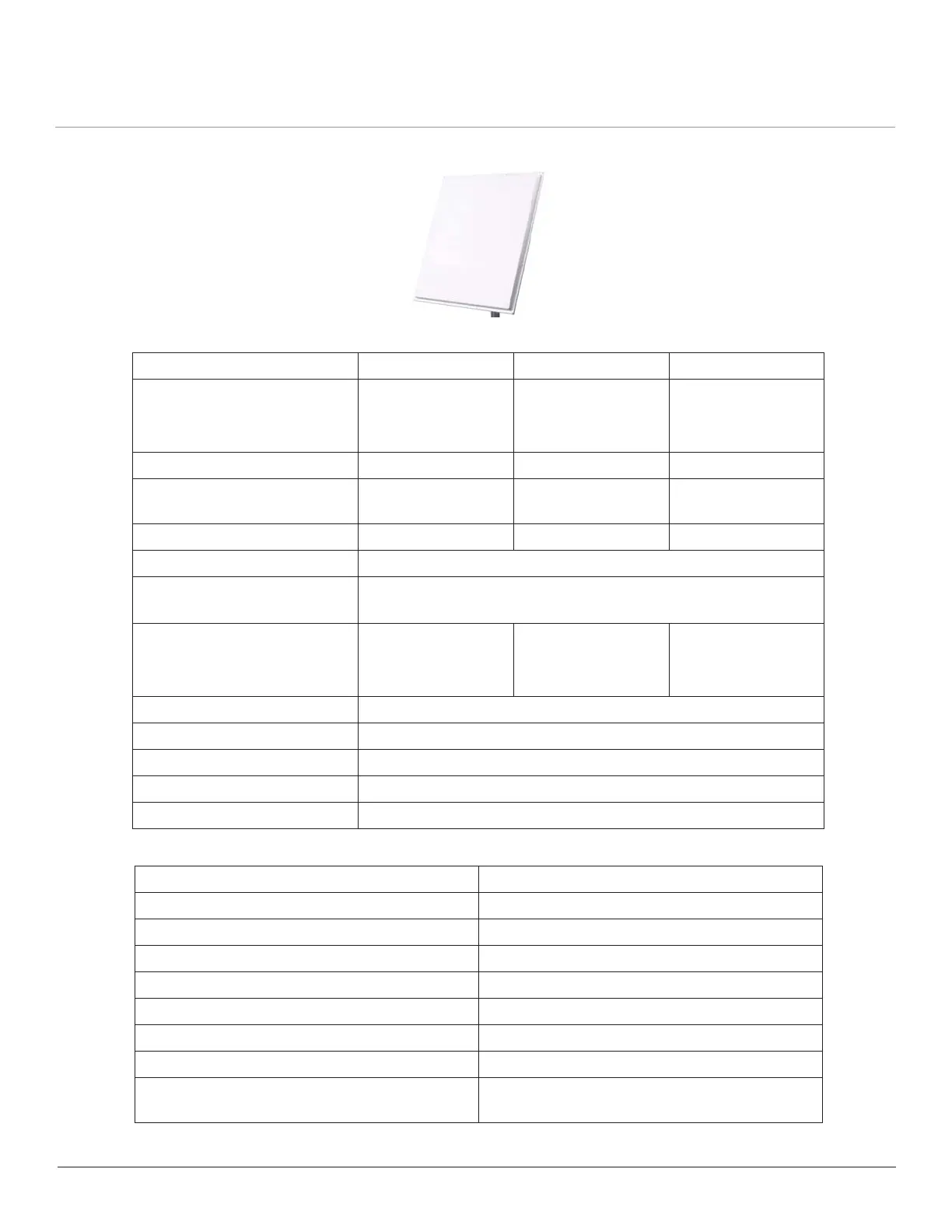

7.5.2.2 29 dBi Dual Polarized Panel Antenna
Electrical Specifications
Environmental and Mechanical Specifications
Frequency Range 4.9 - 5.15 GHz 5.15 - 5.875 GHz 5.875 - 6.1 GHz
Gain
• Vertical Pol.
• Dual Pol.
28.5±0.5 dBi
28±0.5 dBi
29±0.5 dBi
28.5±0.5 dBi
28.5±0.5 dBi
28±1 dBi
VSWR, max 2:1 1.7:1 2:1
3 dB Beam-Width, H-Plane,
typ.
5.2º 4.7º 4.4º
3 dB Beam-Width, E-Plane, typ. 5.2º 4.7º 4.4º
Side Lobes, min. ETSI TS3
Polarization
Dual Pole
Dual Polarization Vertical and Horizontal ± 45°
Cross Polarization, min
• V-Pol
• H-Pol
-26 dB
-25 dB
-23 dB
-23 dB
-23 dB
-23 dB
F/B Ratio, min ETSI TS3
Port To Port Isolation -30 dB
Input Impedance 50 Ohms
Input Power 10 W (max)
Lightning Protection DC Grounded
Wind Survival 200 km/hr
Temperature Range -40 to +65 °C
Humidity ETS 300 019-1-4, EN 302 085
Water Proofing IP67
Dimension (L x W x H) 600 x 600 x 22 mm
Weight 4.7 kg
Connectors 2 x N-type female
Radome Material UV Protected Poly carbonate
Back Plane Aluminum protected through chemical
passivation
