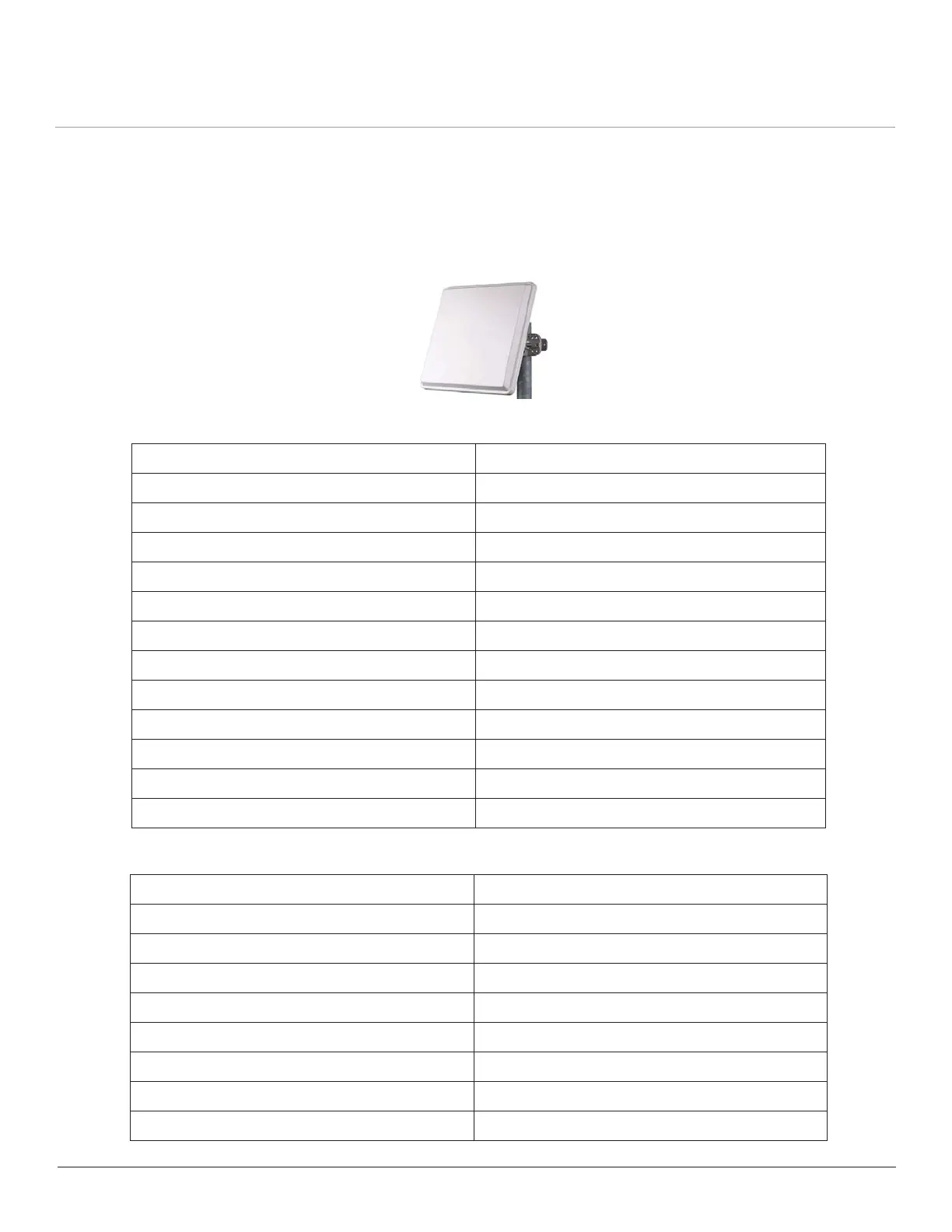

7.5.2 Panel Antenna Specifications
• 23 dBi Dual Polarized Panel Antenna
• 29 dBi Dual Polarized Panel Antenna
• 19 dBi Dual Polarized Panel Antenna
7.5.2.1 23 dBi Dual Polarized Panel Antenna
Electrical Specifications
Environmental and Mechanical Specifications
Frequency Range 4.9 GHz - 5.875 GHz
Gain 23.5 dBi V-Pol:24.5 ± 1 dBi H-Pol:23.5 ± 1 dBi
VSWR 1.7: 1
3 dB Beam-Width, H-Plane, typ. 7° to 9°
3 dB Beam-Width, E-Plane, typ. 7° to 9°
Side Lobes, min. ETSI TS3, TS4, TS5
Polarization Linear, Vertical and Horizontal
Cross Polarization, typ. -25 dB
F/B Ratio, min ETSI TS3, TS4, TS5
Port To Port Isolation -30 dB
Input Impedance 50 Ohms
Input Power 5 W (max)
Lightning Protection DC Grounded
Wind Survival 200 km/hr.
Temperature Range -40 to +65 °C
Humidity ETS 300 019-1-4, EN 302 085
Water Proofing IP67
Dimension (L x W x H) 370 x 370 x 40 mm
Weight 2.1 kg
Connectors 2 x N-type female
Radome Material UV Protected Poly carbonate
Back Plane Aluminum protected through chemical passivation
