Proxim Edge MP-1015-CPE User Manual

Edge
TM
Multipoint and Quickbridge - Hardware Installation Guide 8
3
Device Overview
This section provides the hardware overview and installation procedure for the following product(s):
• MP-1015-CPE
• MP-1025-CPE
• MP-1035-CPE
• MP-1015-BS3
• MP-1025-BS3
• QB-1015-LNK (2 x QB-1015-EPR)
• QB-1025-LNK (2 x QB-1025-EPR)
• QB-1035-LNK (2 x QB-1035-EPR)
3.1 Edge 1015, 1025 and 1035 Hardware Overview

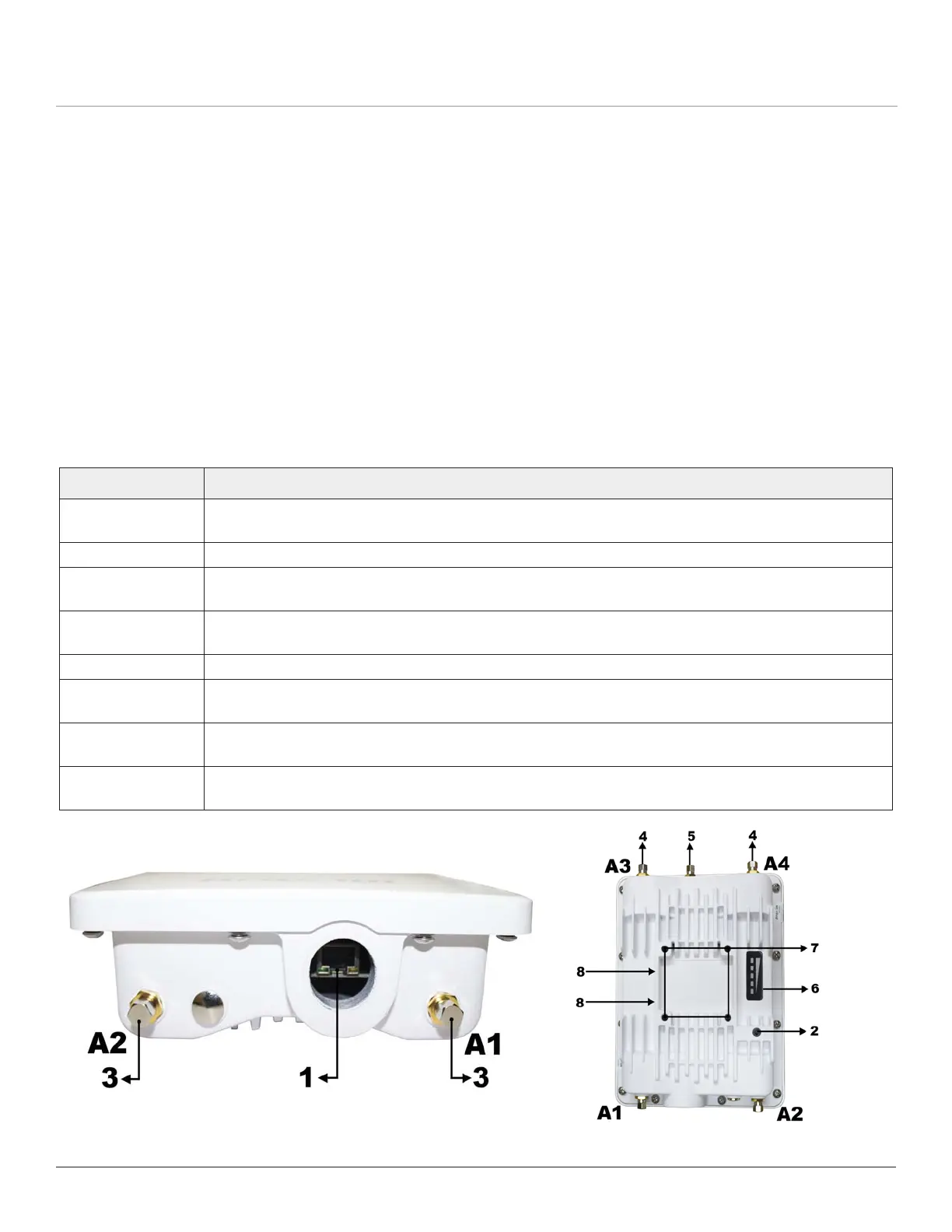

Figure 3-1 MP-10x5-CPE, MP-10x5-BS3 & QB-10x5-EPR
Device Model Description
MP-1015-CPE Edge MP 1015, Customer Premises Equipment, 100 Mbps, integrated
antenna and RP-SMA.
MP-1025-CPE Edge MP 1025, Customer Premise Equipment, 400 Mbps, integrated antenna and RP-SMA.
MP-1035-CPE Edge MP 1035, Customer Premise Equipment, 400 Mbps, integrated antenna and
RP-SMA - WD PoE.
MP-1015-BS3 Edge MP 1015, Base Station, 100 Mbps, integrated antenna and
RP-SMA.
MP-1025-BS3 Edge MP 1025, Base Station, 400 Mbps, integrated antenna and RP-SMA.
QB-1015-LNK
(2 x QB-1015-EPR)
Edge QB 1015, Link, 100 Mbps, integrated antenna and RP-SMA.
QB-1025-LNK
(2 x QB-1025-EPR)
Edge MP 1025, Link, 400 Mbps, integrated antenna and RP-SMA.
QB-1035-LNK
(2 x QB-1035-EPR)
Edge QB 1035, Link, 400 Mbps, integrated antenna and RP-SMA - US PoE.

Proxim Edge MP-1015-CPE Specifications

General

Brand	Proxim
Model	Edge MP-1015-CPE
Category	Wireless Access Point
Language	English
