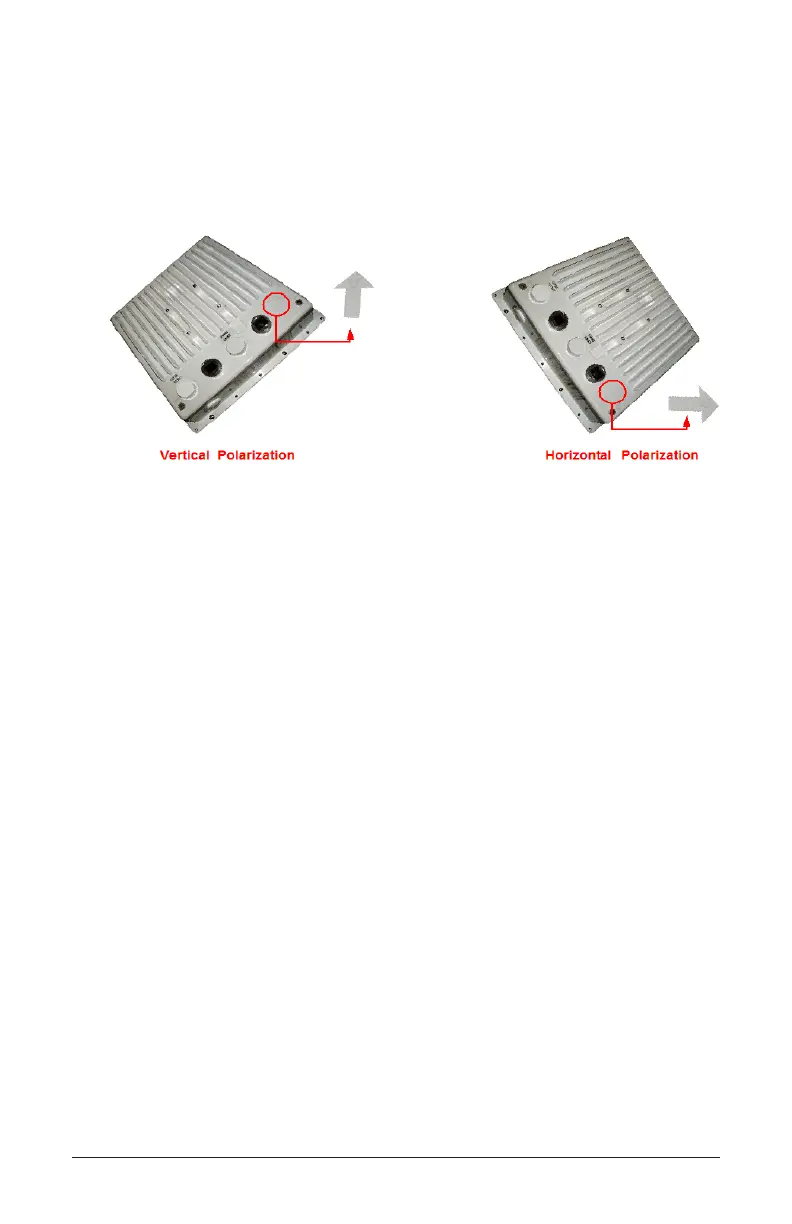

Step 5: Determine Proper Mounting Orientation
Locate the arrow on the back of the unit and determine your desired
mounting orientation. For vertical polarization using the integrated
antenna, the arrow should be pointing up (perpendicular to the ground).
For horizontal polarization using the integral antenna, the arrow should be
horizontal (parallel to the ground).
