Page 16 Copyright © 2007 Proxim Wireless
Step 9: Plug in the Cables

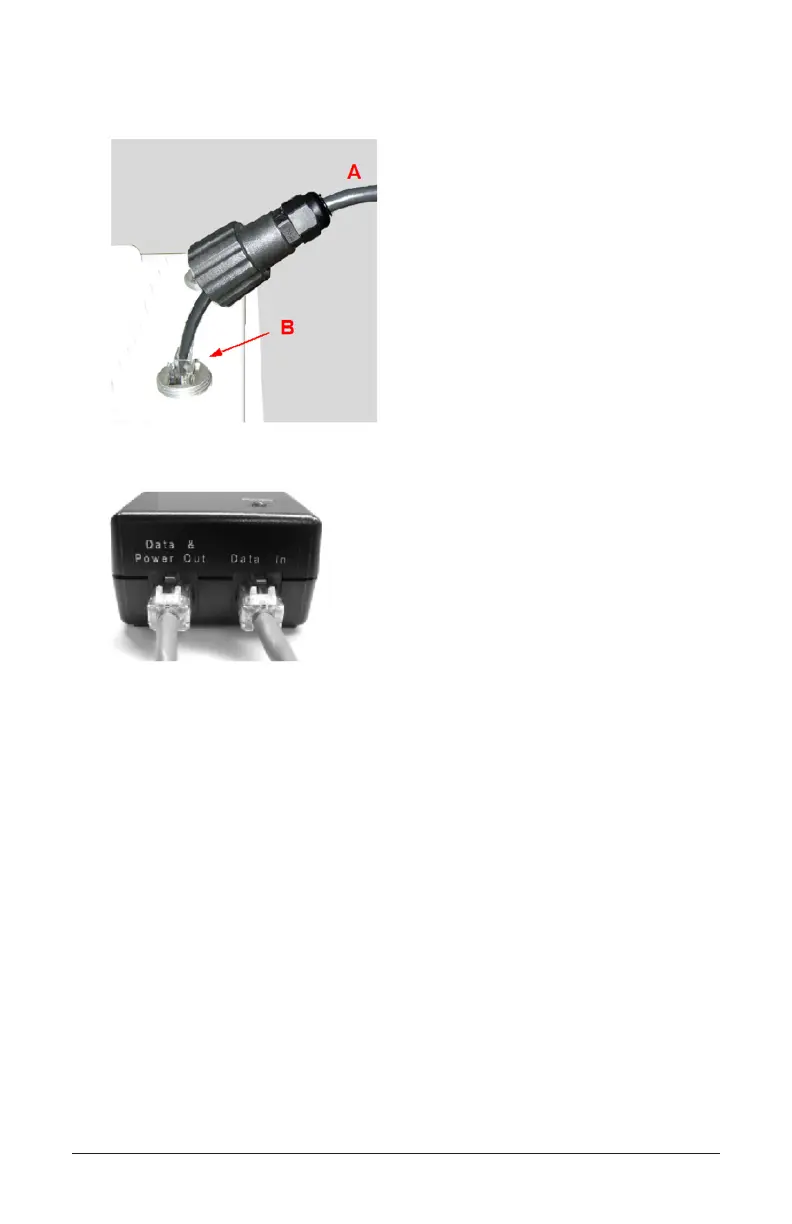

Plug one end of the CAT5 cable (A) into the RJ45 jack of the unit (B).
Connect the free end of the CAT5 cable to the “Data and Power Out” port
on the power injector.
To connect the unit through a hub or a switch to a PC, connect a straight-
through Ethernet cable between the network interface card in the PC and
the hub, and between the hub and the RJ45 “Data In” port on the PoE
adapter.
To connect the unit directly to a PC, connect a cross-over Ethernet cable
between the network interface card in the PC and the RJ45 “Data In” port
on the power injector.
1.
2.
3.
