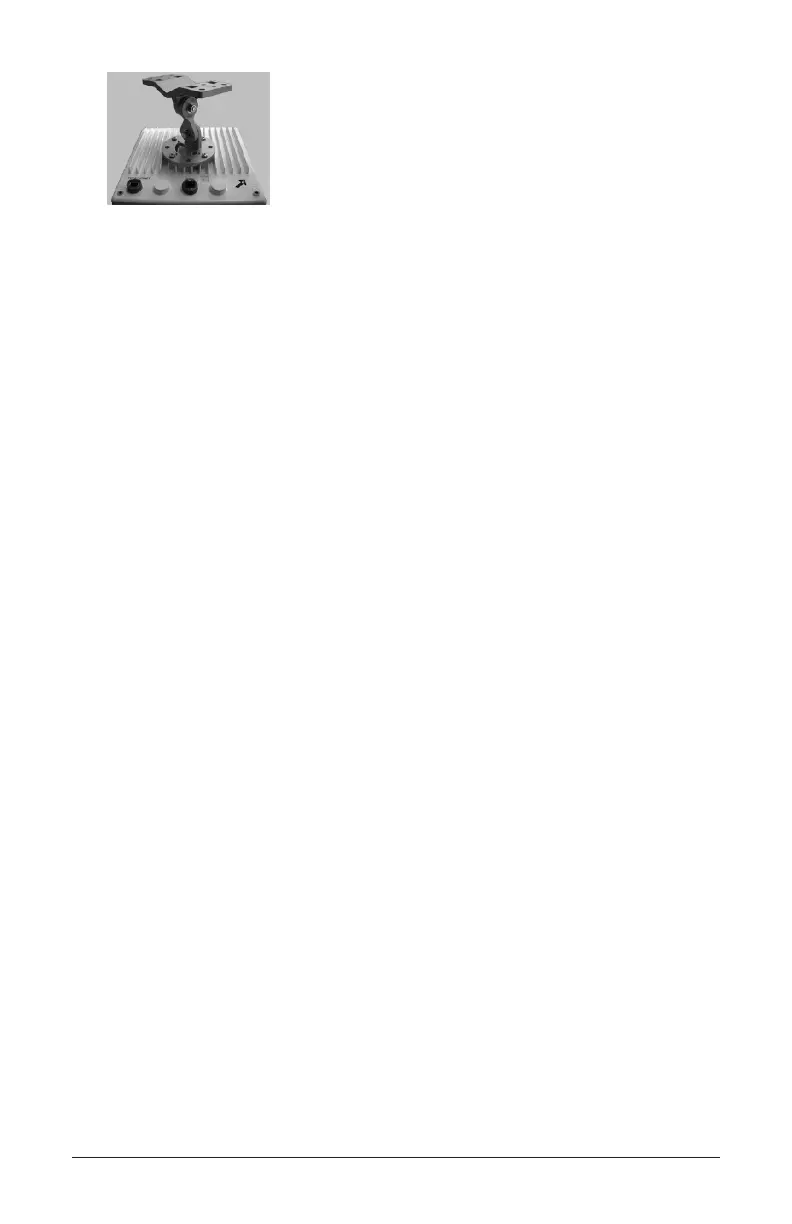

Note that this gure is for illustration only. Units with integrated antennas
must always be mounted in diagonal position to achieve vertical or horizontal
polarization as indicated by the arrow on the back of the unit. Also, on units
with direct-connected omni antennas, the enclosure must be mounted with the
lower side in the horizontal position.
