CADDY ADD-ON
3.1.6.1 INSTALLATION OF THE FAN LIMIT CONTROL AND WIRING WITH AN
EXISTING OIL FURNACE
Note: the fan limit control PA08522 (G) is not provided with the furnace and has
to be purchased separately.
To install the fan limit control assembly PA08522, (not included with the furnace),
remove the cover on the fan limit control (G) and the cover on the junction box
(D). Secure the fan limit control bracket provided with your furnace, on the top
edge of the left or right side of the unit (two holes on each side have already
been drilled on the edges of the furnace). Drill a hole in the plenum, across from
the hole in the support bracket. Slide the fan limit control’s probe in the opening
on the support bracket and into the plenum. Secure the fan limit control (G) on
the support bracket with self-taping screws, not provided.

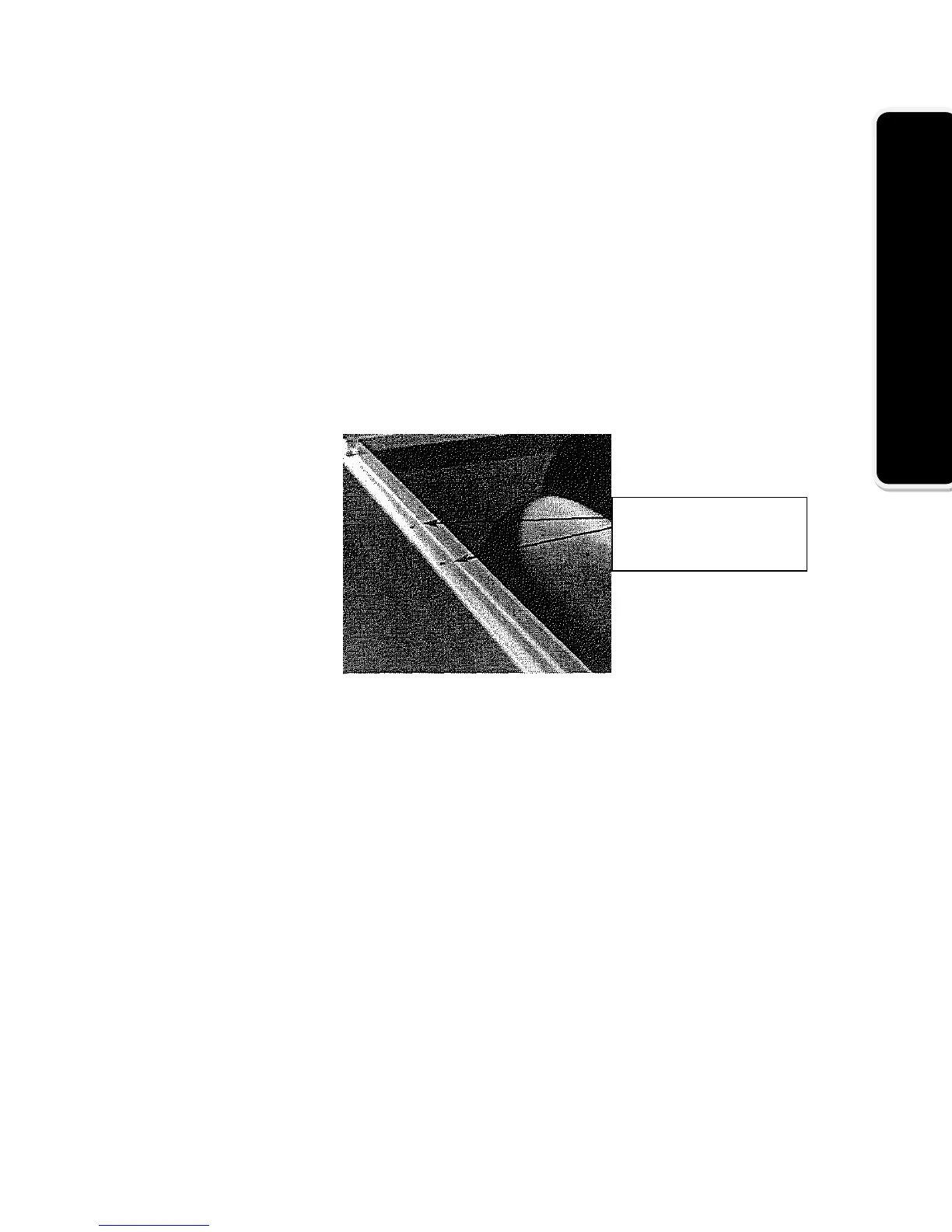

HOLES FOR
SUPPORT
BRACKET
