56
CADDY WOOD/ELECTRIC
3.3.4.4 OPTIONAL ELECTRIC ELEMENT AND FAN LIMIT CONTROL
INSTALLATION
Your Caddy furnace can be installed with an optional electric element (15, 18 or
20 kW). The installation must be performed by a qualified professional.

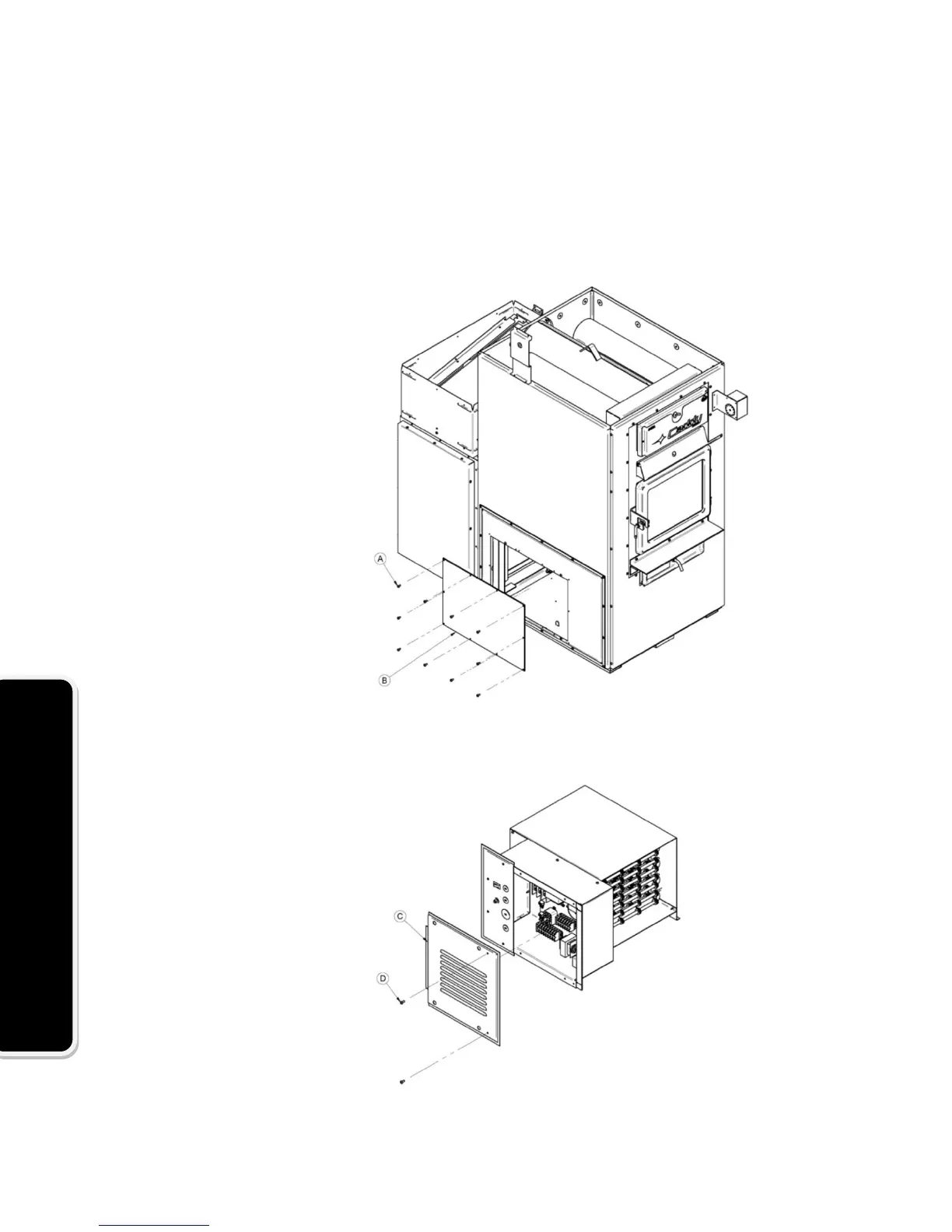

1
Remove the screws (A)
securing the electric unit
access panel (B) to the
left side of the furnace.
Keep the screws, but you
may dispose of the
cover.
2
Remove the panel (C)
from the electric element
option. Keep the screws
(D).
