AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE
Ed. Jun-2012 Proprietary information 43 of 89
the “Storm-control enabled type” column, on port-basis.
5. Update Setting: Click on the “Update Setting” button after finishing this
configuration procedure.
Threshold level and Storm-control enabled type settings.

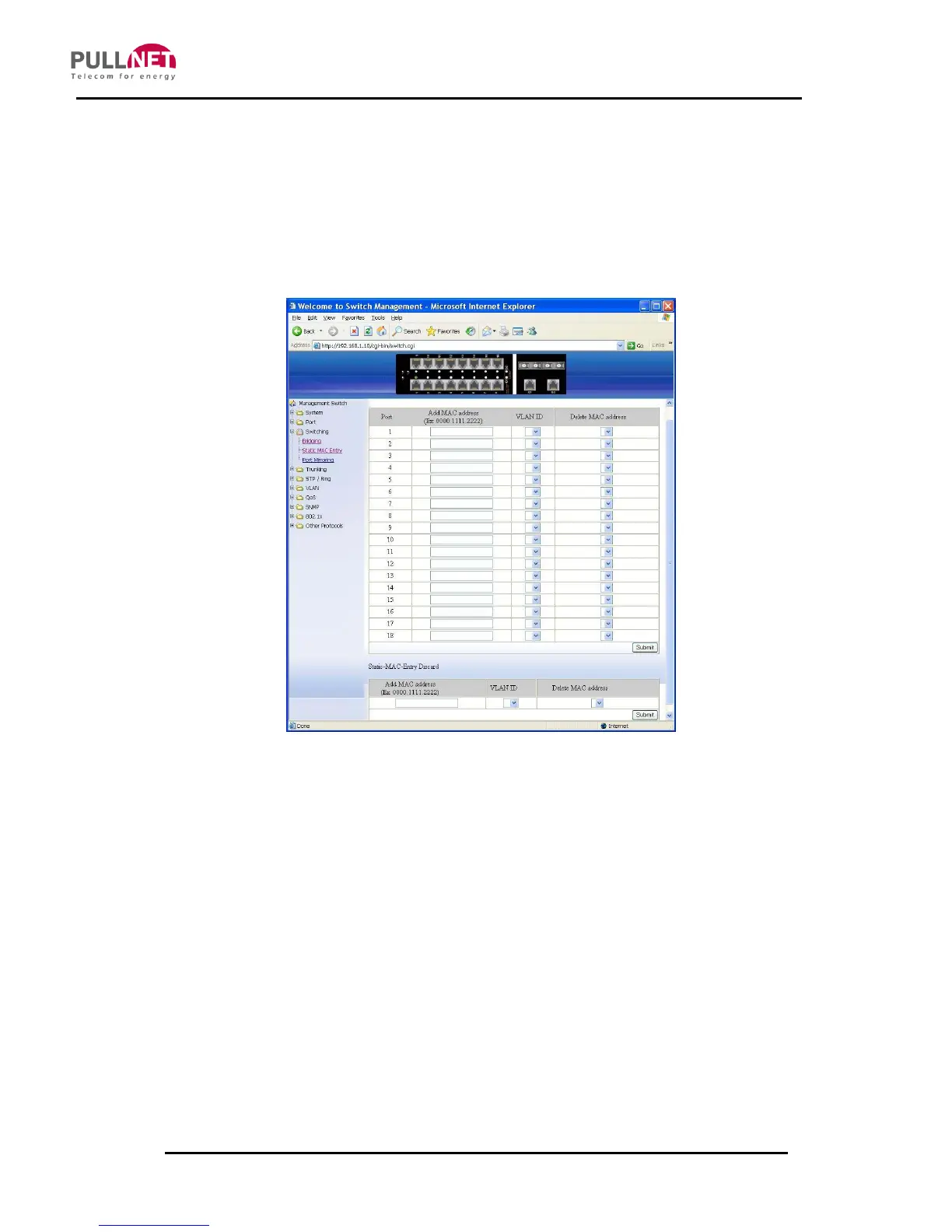

Static MAC Entry
Static-MAC-Entry Forward:
1. Add MAC address: Click on the “Add MAC address” text box and type a locked
forwarding MAC address, on port-basis.
2. VLAN ID: Click on the “VLAN ID” drop-down menu and choose a VLAN ID
from the “VLAN ID” drop-down list.
3. Delete MAC address: Click on the “Delete MAC address” drop-down menu and
choose a locked forwarding MAC address from the “Delete MAC address”
drop-down list to be deleted, on port-basis.
4. Submit: Click on the “Submit” button when the Static-MAC-Entry Forward
settings procedure is finished.
