8.8 VLAN

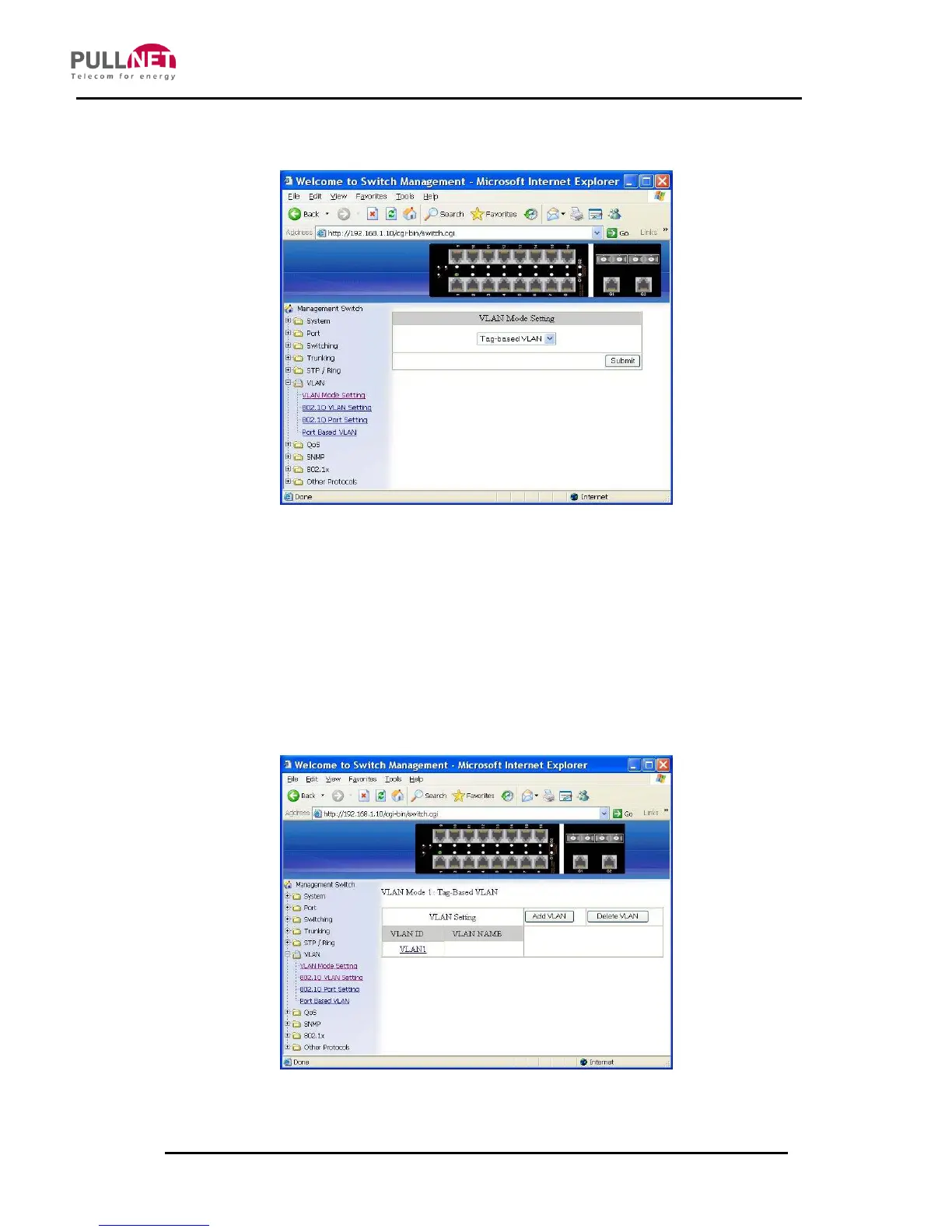

VLAN Mode Setting
1. VLAN Mode Setting: Click on the “VLAN Mode Setting” drop-down menu to
Choose “Tag-based VLAN” or “Port-based VLAN” from the “VLAN Mode
Setting” drop-down list.
2. Update Setting: Click on the “Update Setting” button after finishing the VLAN
Mode Setting procedure.
