AGENT-2 S41D Line - User Manual AG2-S41D/MU-EE
Ed. Jun-2012 Proprietary information 53 of 89

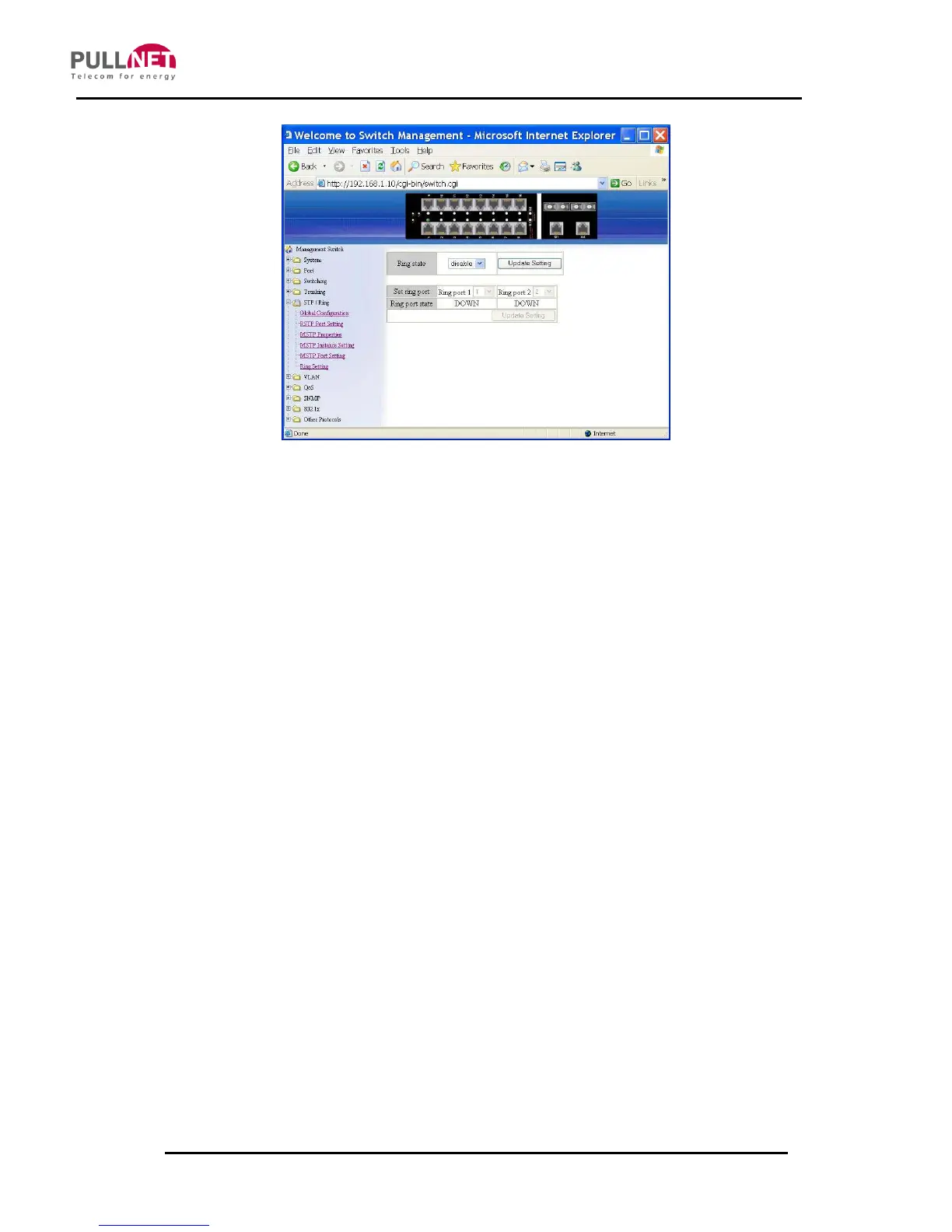

Ring Setting
Ring state
1. Click on the “Ring state” drop-down menu from the “Ring state” drop-down list
in order to choose “Enable” or “Disable” to enabling or disabling Ring state.
2. Update setting: Click on the “Update setting” button after finishing the Ring
state setting procedure.
Set ring port
1. Ring port 1: Click on the “Ring port 1” drop-down menu to choose the Ring port
1 from the “Ring port 1” drop-down list.
2. Ring port 2: Click on the “Ring port 2” drop-down menu to choose the Ring port
2 from the “Ring port 2” drop-down list.
3. Update setting: Click on the “Update setting” button after finishing the ring port
setting procedure.
