3. Turn on the thermal imaging module by pressing the ON/OFF (8) button.
4. Adjust the eyepiece diopter ring (25) until the symbols in the display are
sharp.
5. Loosen the screw (24) with an Allen key S3.

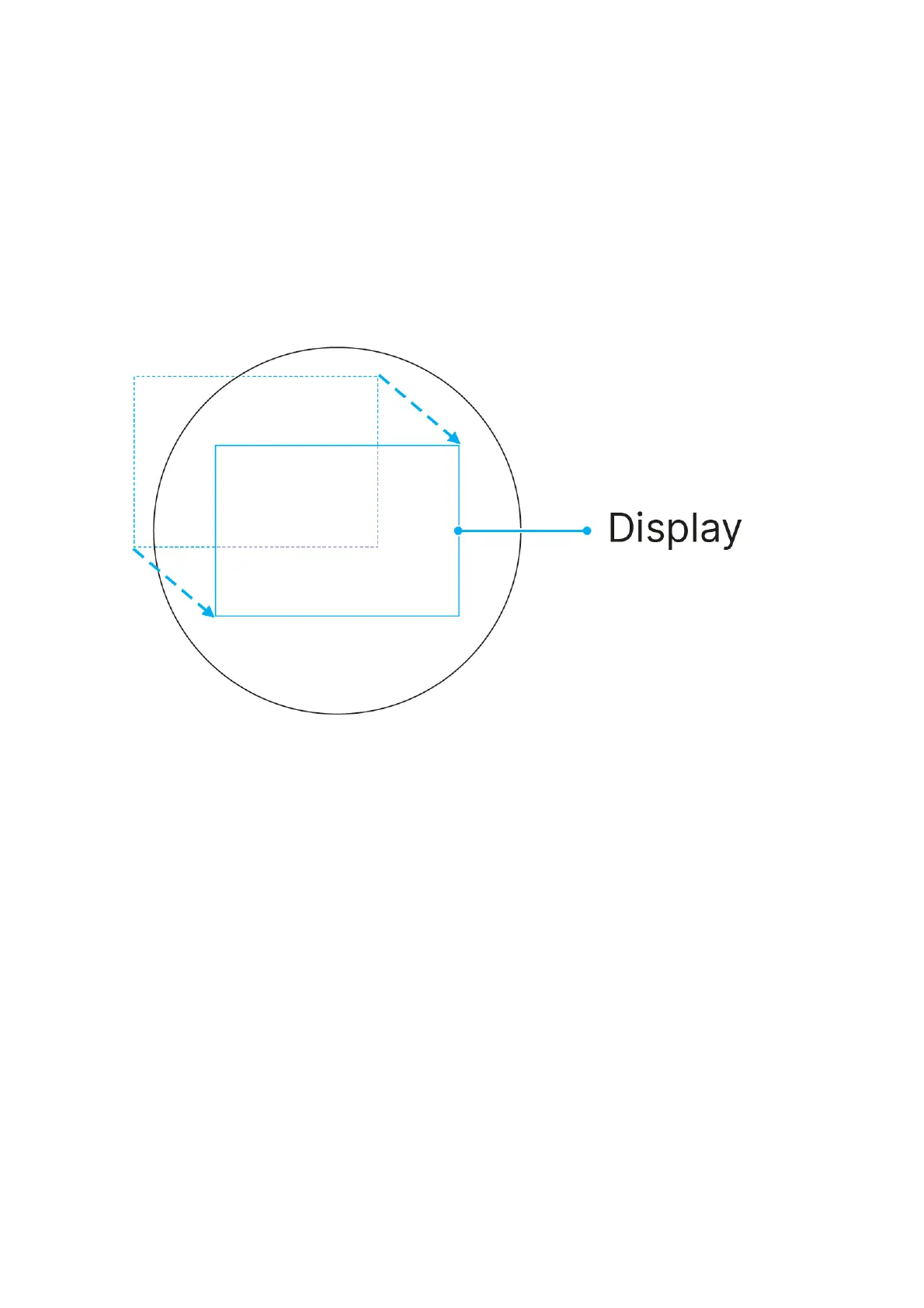

6. Align the display to the center of the image in the monocular by tilting the
thermal imaging module in the required directions.
7. Lock the monocular in the chosen position by tightening the screw (24) until
it stops (clamping force – 2.5 Nm/ 22.13 in-lbs).
8. To remove the monocular, turn it counterclockwise and disconnect from the
thermal imaging module.
